Schneider Electric RXM3AB2B7 Miniature Relay Led 3C/O 24Vac Pack of 10

(No reviews yet) Write a Review

Write a Review

Schneider Electric

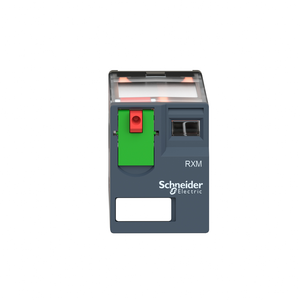

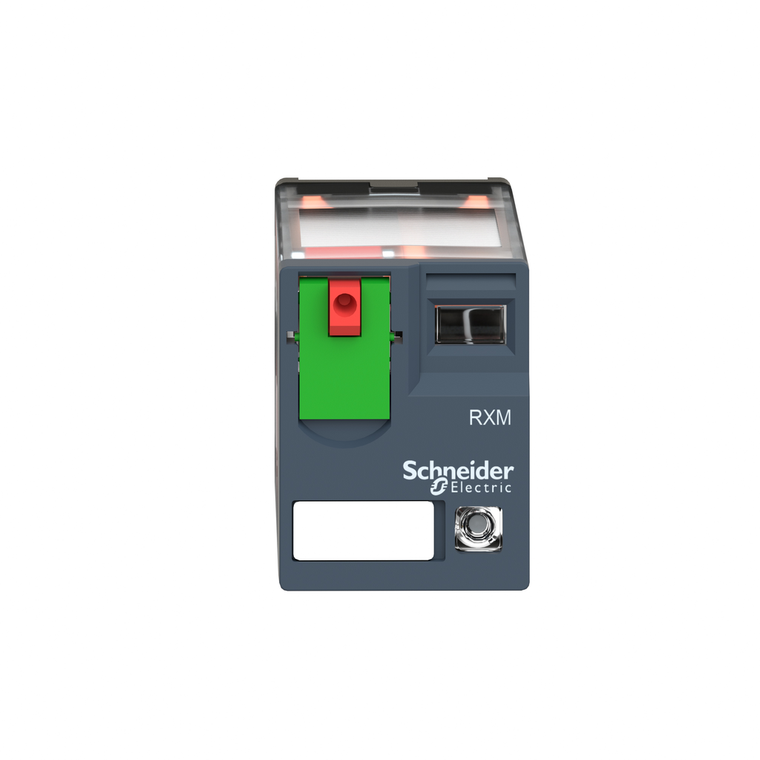

Schneider Electric RXM3AB2B7 Miniature Relay Led 3C/O 24Vac Pack of 10

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

RXM3AB2B7

UPC:

3389119403627

MPN:

Condition:

New

Reach Free Of Svhc:

Yes

Control Type:

lockable test button

Utilisation Coefficient:

0.2

Safety Reliability Data:

B10d = 100000

China Rohs Regulation:

X

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Maximum Switching Capacity:

2500 VA/280 W

Circularity Profile:

ENVEOLI2106019EN

Maximum Switching Voltage:

250 V IEC

Product Certifications:

UL || Lloyd's || CE || CSA || GOST || IECEE CB Scheme

Electrical Durability:

100000 cycles resistive

[Uimp] Rated Impulse Withstand Voltage:

4 kV 1.2/50 µs

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Contacts Material:

AgNi

Pollution Degree:

2

Reset Time:

20 ms

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Cad Overall Depth:

78.45 mm

Average Coil Consumption In Va:

1.2-1.2 60 Hz

Ip Degree Of Protection:

IP40 conforming to IEC 60529

Dielectric Strength:

1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact || 2000 V AC between poles

[Uc] Control Circuit Voltage:

24 V AC 50/60 Hz

Minimum Switching Capacity:

170 mW 10 mA, 17 V

Cad Overall Height:

79 mm

Average Resistance:

180 Ohm 20 °C +/- 15 %

Warranty:

18 months

Shape Of Pin:

flat

Continuous Output Current:

6.7 A

Drop-Out Voltage Threshold:

>= 0.15 Uc

Range Of Product:

Harmony Electromechanical Relays

Ambient Air Temperature For Operation:

-40-55 °C

Device Short Name:

RXM

Contacts Type And Composition:

3 C/O

Device Presentation:

complete product

Operating Position:

any position

Ambient Air Temperature For Storage:

-40-85 °C

Sustainable Offer Status:

Green Premium product

Standards:

CSA C22.2 No 14 || UL 508 || IEC 61810-1

Mechanical Durability:

10000000 cycles

Environmental Disclosure:

ENVPEP2106019EN

Protection Category:

RT I

[Ui] Rated Insulation Voltage:

250 V IEC || 300 V CSA || 300 V UL

Test Levels:

level A group mounting

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Shock Resistance:

10 gnin operation || 30 gnnot operating

Average Consumption:

1.2 VA 60 Hz

Load Current:

10 A 250 V AC || 10 A 28 V DC

Operating Time:

20 ms

Status Led:

with

Rated Operational Voltage Limits:

19.2...26.4 V AC

Product Or Component Type:

plug-in relay

Vibration Resistance:

3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating

Series Name:

Miniature

Rohs Exemption Information:

Yes

[Ie] Rated Operational Current:

10 A 28 V DC) NO IEC || 10 A 250 V AC) NO IEC || 5 A 28 V DC) NC IEC || 5 A 250 V AC) NC IEC || 10 A 30 V DC) UL || 10 A 277 V AC) UL

Net Weight:

0.037 kg

Operating Rate:

<= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
