Schneider Electric RXM3AB2JD Miniature Relay Led 3C/O 12Vdc Pack of 10
Schneider Electric
$80.50
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

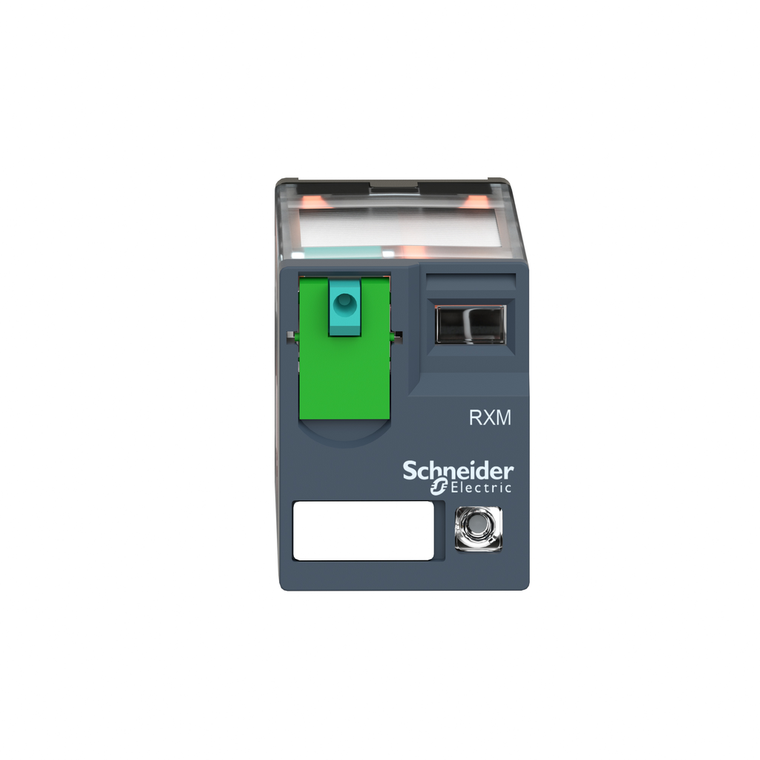

Schneider Electric RXM3AB2JD Miniature Relay Led 3C/O 12Vdc Pack of 10
This Harmony RXM miniature plug-in relay has a coil control voltage of 12V DC and has 3 changeover contacts 3PDT (triple pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers one-step lockable test button and “Power On” LED for readiness." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 "It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH." "RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available." "It is sold in lots of 10 and reference includes relay only." 0 "The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts." 0 0
- Device Short Name:
- RXM
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Maximum Switching Capacity:
- 2500 VA/280 W
- Shape Of Pin:
- flat
- Contacts Type And Composition:
- 3 C/O
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
- Continuous Output Current:
- 6.7 A
- Ip Degree Of Protection:
- IP40 conforming to IEC 60529
- Average Resistance:
- 160 Ohm 20 °C +/- 10 %
- Product Or Component Type:
- plug-in relay
- Cad Overall Height:
- 79 mm
- Average Coil Consumption:
- 0.9 W
- Sustainable Offer Status:
- Green Premium product
- Circularity Profile:
- ENVEOLI2106019EN
- Utilisation Coefficient:
- 0.2
- Series Name:
- Miniature
- Ambient Air Temperature For Storage:
- -40-85 °C
- Reset Time:
- 20 ms
- Device Presentation:
- complete product
- Load Current:
- 10 A 250 V AC || 10 A 28 V DC
- Mechanical Durability:
- 10000000 cycles
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Test Levels:
- level A group mounting
- Environmental Disclosure:
- ENVPEP2106019EN
- Warranty:
- 18 months
- Maximum Switching Voltage:
- 250 V IEC
- Reach Free Of Svhc:
- Yes
- Electrical Durability:
- 100000 cycles resistive
- Safety Reliability Data:
- B10d = 100000
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV 1.2/50 µs
- Operating Position:
- any position
- Rohs Exemption Information:
- Yes
- Standards:
- UL 508 || IEC 61810-1 || CSA C22.2 No 14
- Cad Overall Depth:
- 78.45 mm
- Net Weight:
- 0.037 kg
- Dielectric Strength:
- 1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact || 2000 V AC between poles
- Shock Resistance:
- 10 gnin operation || 30 gnnot operating
- Drop-Out Voltage Threshold:
- >= 0.1 Uc
- [Ie] Rated Operational Current:
- 10 A 28 V DC) NO IEC || 10 A 250 V AC) NO IEC || 5 A 28 V DC) NC IEC || 5 A 250 V AC) NC IEC || 10 A 30 V DC) UL || 10 A 277 V AC) UL
- Operating Rate:
- <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
- Ambient Air Temperature For Operation:
- -40-55 °C
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Control Type:
- lockable test button
- Range Of Product:
- Harmony Electromechanical Relays
- Rated Operational Voltage Limits:
- 9.6...13.2 V DC
- [Uc] Control Circuit Voltage:
- 12 V DC
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Pollution Degree:
- 2
- Contacts Material:
- AgNi
- Operating Time:
- 20 ms
- Protection Category:
- RT I
- Product Certifications:
- UL || Lloyd's || CE || CSA || GOST || IECEE CB Scheme
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Status Led:
- with
- China Rohs Regulation:
- X
