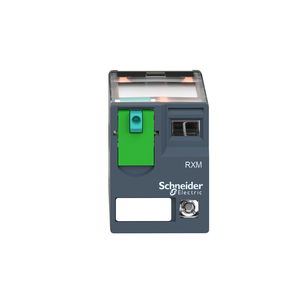

Schneider Electric RXM4GB1BD Miniature Relay 4C/O Low Sw 24Vdc Pack of 10

Schneider Electric RXM4GB1BD Miniature Relay 4C/O Low Sw 24Vdc Pack of 10

Schneider Electric
SKU:
RXM4GB1BD
|
UPC:
3389119403900
$73.20
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay (gold plated contact) with current rating of 3A, control circuit voltage of 24 V DC. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the blue pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor control, PLC Interfaces, power supplies, building equipment, especially those requiring low level contacts. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
Additional Information
Operating Time:
20 ms
Drop-Out Voltage Threshold:
>= 0.1 Uc
Operating Position:
any position
Reach Free Of Svhc:
Yes
Pollution Degree:
2
Electrical Durability:
100000 cycles resistive depending on mounting position and working environment
Average Resistance:
650 Ohm 20 °C +/- 10 %
Standards:
CSA C22.2 No 14 || IEC 61810-1 || UL 508
Warranty:
18 months
Ip Degree Of Protection:
IP40 conforming to IEC 60529
Minimum Switching Capacity:
15 mW 3 mA, 5 V
Protection Category:
RT I
Product Certifications:
UL || Lloyd's || CE || CSA || GOST || IECEE CB Scheme
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Rated Operational Voltage Limits:
19.2...26.4 V DC
[Ie] Rated Operational Current:
2 A 28 V DC) NO IEC || 2 A 250 V AC) NO IEC || 1 A 28 V DC) NC IEC || 1 A 250 V AC) NC IEC || 3 A 28 V DC) UL || 3 A 277 V AC) UL
Utilisation Coefficient:
0.2
Status Led:
without
Ambient Air Temperature For Storage:
-40-85 °C
Dielectric Strength:
1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact || 2000 V AC between poles
Load Current:
3 A 250 V AC || 3 A 28 V DC
[Ithe] Conventional Enclosed Thermal Current:
3 A -40-55 °C
Net Weight:
0.037 kg
Control Type:
lockable test button
[Ui] Rated Insulation Voltage:
250 V IEC || 300 V CSA || 300 V UL
Reset Time:
20 ms
Device Short Name:
RXM
Sustainable Offer Status:
Green Premium product
Shape Of Pin:
flat
Maximum Switching Capacity:
750 VA/84 W
Product Or Component Type:
plug-in relay
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Series Name:
Miniature
[Uimp] Rated Impulse Withstand Voltage:
2.5 kV 1.2/50 µs
Operating Rate:
<= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
Test Levels:
level A group mounting
China Rohs Regulation:
X
[Uc] Control Circuit Voltage:
24 V DC
Average Coil Consumption:
0.9 W
Circularity Profile:
ENVEOLI2106019EN
Device Presentation:
complete product
Maximum Switching Voltage:
250 V IEC
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Range Of Product:
Harmony Electromechanical Relays
Vibration Resistance:
3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Environmental Disclosure:
ENVPEP2106019EN
Mechanical Durability:
10000000 cycles
Shock Resistance:
10 gnin operation || 30 gnnot operating
Contacts Material:
gold plated bifurcated silver
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rohs Exemption Information:
Yes
Ambient Air Temperature For Operation:
-40-55 °C
Contacts Type And Composition:
4 C/O
