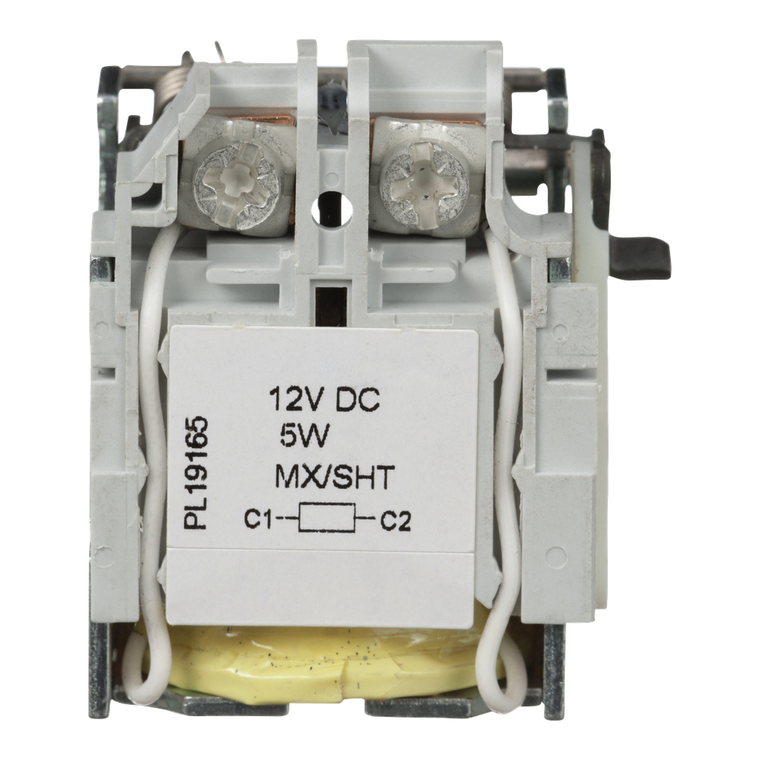

Schneider Electric S29382 Circuit Breaker Shunt Trip 12V Dc
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
The PowerPact H-, J-, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H- and J-frame circuit breakers are available with either thermal-magnetic or Micrologic electronic trip units. L-frame circuit breakers are available with Micrologic electronic trip units only. Shunt Trip (MX). Trips the circuit breaker when the control voltage rises above 70% of its rated voltage. Impulse type ≥ 20 ms or maintained control signals. AC shunt trips are suitable for ground-fault protection when combined with a Class I ground-fault sensing element. Continuous duty rated coil.
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Compliant with Exemptions
- Range Of Product:
- PowerPact H || PowerPact J || PowerPact L
- Product Certifications:
- CSA
- Product Or Component Type:
- shunt trip
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Rated Voltage:
- 12-12 V DC
- Rohs Exemption Information:
- Yes
- Tightening Torque:
- 1.4-1.4 N.m 0.82-2.5 mm² (AWG 18...AWG 14)
- Warranty:
- 18 months
