Schneider Electric S33659 Circuit Breaker Shunt Trip 24-30V Ac/Dc
Schneider Electric
$755.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

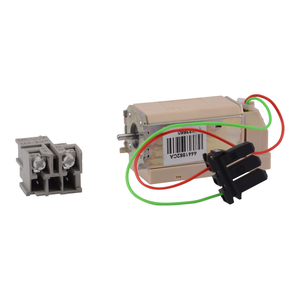

PowerPacT circuit breakers are designed to protect electrical systems from damage cause by overloads, short circuits, and ground faults. PowerPacT circuit breaker enclosures have a wide range of field installable accessories to allow customers to reduce inventory without sacrificing flexibility. This shunt trip unit for PowerPacT M- or P-Frame circuit breakers is one of the field installable accessories available. The shunt trip option allows tripping the circuit breaker from a remote location by means of a trip coil energized from a separate supply voltage circuit. When energized, the shunt trip instantaneously opens the circuit breaker. This shunt trip unit requires 24 to 30VDC supply voltage source. This accessory complies with UL standards.
- Rack Type:
- remote
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Warranty:
- 18 months
- Product Or Component Type:
- coil
- Range Of Product:
- PowerPact M || PowerPact P || PowerPact R
- Circularity Profile:
- ENVEOLI2307032EN
- Circuit Breaker Name:
- PowerPact M or P
- Rohs Exemption Information:
- Yes
- Device Application:
- trips circuit breaker from remote location
- Mercury Free:
- Yes
- Mounting Location:
- inside the circuit breaker
- Circuit Breaker Type:
- standard
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Rated Voltage:
- 24-30 V DC
- Environmental Disclosure:
- ENVPEP2307032EN
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
