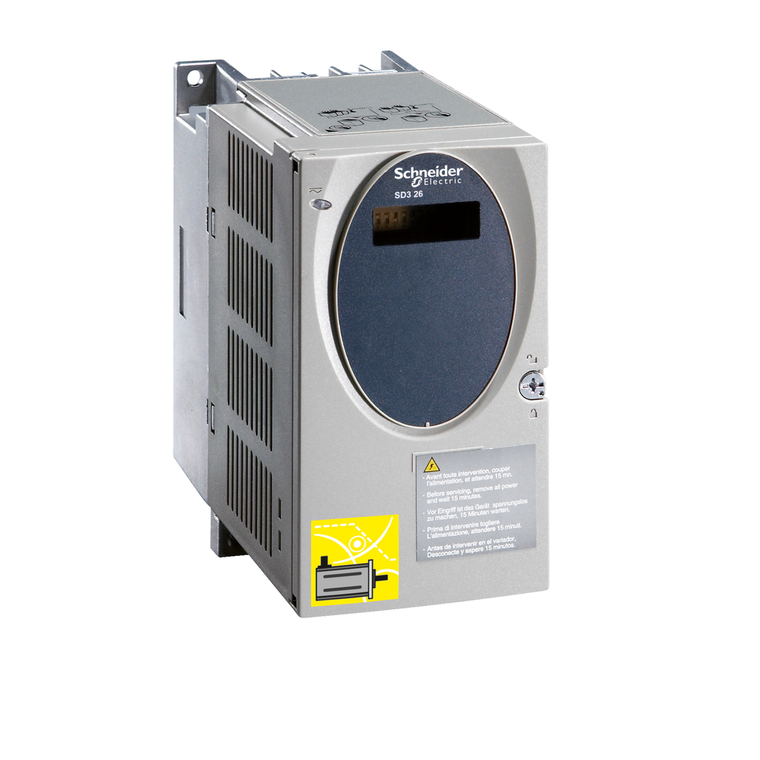

Schneider Electric SD326DU25S2 Lexium Step Driver ( Pulse/Dir.), 2.5A

Schneider Electric SD326DU25S2 Lexium Step Driver ( Pulse/Dir.), 2.5A

Schneider Electric
SKU:
SD326DU25S2
|
UPC:
3.38912E+12
Availability:
Contact us to confirm availability and lead times.
$808.81
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is part of the Lexium SD3 and motors an offer of 3-phase stepper drives and stepper motors. The 3-phase stepper motor drive with an integrated pulse/direction communication interface. High torque is available even at low speeds. It is a motor drive with a rated supply voltage of 100V to 120V, 200V to 230V, a motor phase current of 2.5A, a nominal power of 270W at 230V and maximum mechanical speed of motor drive is 3000RPM. It is provided with natural convection cooling method. It is an IP20 and IP40 rated product. Its dimensions are 72mm (Width) x 140mm (Depth) x 145mm (Height). It weighs 1.1kg. The Lexium SD3 with its excellent constant velocity characteristics is ideal for applications such as printing, paper, packaging, handling, labelling, textile industry, scanning, food and beverages. This product is certified by CUL, CE and UL. It meets EN/IEC 50178, EN/IEC 61800-3 environment 1, EN/IEC 61800-3 environment 1, EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. The SD3 is an universally applicable stepper motor drive. The package is ready for operation within a very short period of time. Connect the stepper motor to the drive, set the current and step resolution. Stepper drives and stepper motors for motion control.
Additional Information
Warranty:
18 months
Maximum Leakage Current:
30 mA IEC 60990-3
Associated Fuse Rating:
6 A 115 V || 6 A 230 V
Format Of The Drive:
block
Rohs Exemption Information:
Yes
Pvc Free:
Yes
Inrush Current:
60 A
Maximum Input Frequency:
200 kHz 24 V optocoupler input signals || 200 kHz 5 V optocoupler input signals
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Circularity Profile:
ENVEOLI111103EN
Input Current:
25 mA 5 V optocoupler input signals || 7 mA 24 V optocoupler input signals
Ambient Air Temperature For Storage:
-25-70 °C
Standards:
IEC 50178 || IEC 61800-3 environment 1 || EN/IEC 61800-3 environment 2 || IEC 61800-3 || IEC 61800-5-1
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Voltage State 0 Guaranteed:
<= 5 V 24 V optocoupler input signals || <= 0.5 V 5 V optocoupler input signals
Sustainable Offer Status:
Green Premium product
Width:
72 mm
Voltage State 1 Guaranteed:
15...30 V 24 V optocoupler input signals || 2.5...5.25 V 5 V optocoupler input signals
Maximum Mechanical Speed:
3000 rpm
Phase:
single phase
Maximum Switching Current:
200 mA readiness signal output)
Type Of Cooling:
natural convection
Marking:
CE
Maximum Voltage Drop:
<1 V 50 mA load readiness signal output
Supply Voltage Limits:
100-120 V || 200-240 V
Relative Humidity:
5-85 % without condensation
Supply Voltage Type:
AC/DC
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Environmental Disclosure:
ENVPEP111115EN
Ambient Air Temperature For Operation:
0-40 °C UL || 0-50 °C
Vibration Resistance:
1 gn 13-150 Hz)IEC 60068-2-6 || 1.5 mm 3-13 Hz)IEC 60068-2-6
Maximum Motor Phase Current:
2.5 A
Electromagnetic Compatibility:
electrostatic discharge level 3 IEC 61000-4-2 || immunity to electrical transients level 4 IEC 61000-4-4 || immunity to radiated radio-electrical interference level 3 IEC 61000-4-3 || voltage/current impulse level 3 IEC 61000-4-5
Device Short Name:
SD326
Maximum Switching Voltage:
30 V DC readiness signal output)
Product Certifications:
UL || cUL
Depth:
140 mm
Communication Interface:
pulse/direction, Integrated
Product Or Component Type:
motion stepper drive
China Rohs Regulation:
X
Height:
145 mm
Ip Degree Of Protection:
IP20 || on upper part: IP40 (without removal of protective film)
Net Weight:
1.1 kg
Nominal Power:
180 W 115 V || 270 W 230 V
Operating Altitude:
<= 3280.84 ft (1000 m) without derating || > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm)
Overvoltage Category:
III
[Us] Rated Supply Voltage:
100...120 V - 15...10 % || 200...230 V - 15...10 %
Mercury Free:
Yes
Short-Circuit Current:
0.5 kA
Range Of Product:
Lexium SD3
Network Frequency Limits:
50-60 Hz - 15...10 %)
Pollution Degree:
level 2
Catalog:
View
Datasheet:
View
