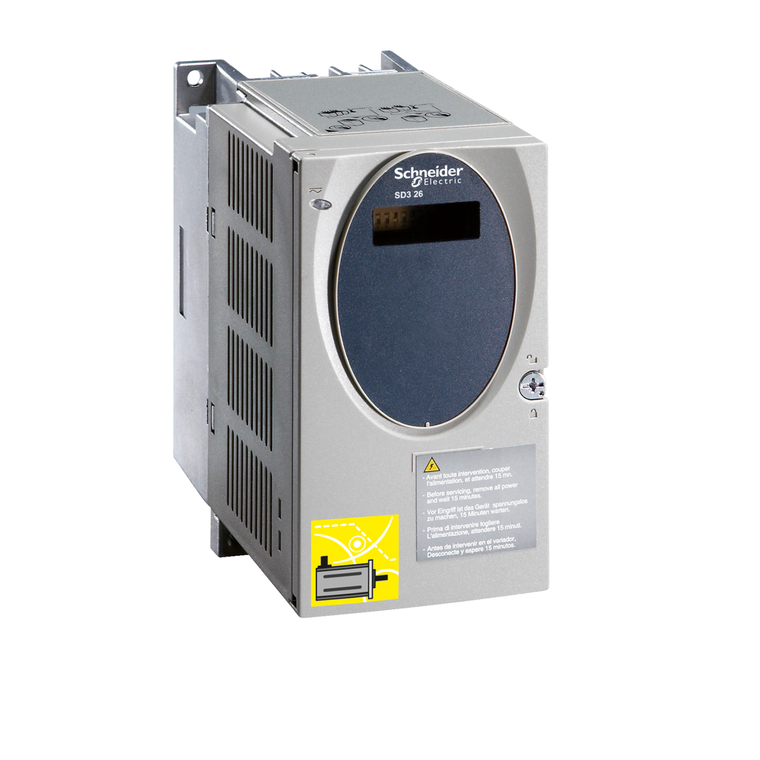

Schneider Electric SD326RU68S2 Lexium Step Driver (Pulse/Dir.,Rm), 6.8A

Schneider Electric SD326RU68S2 Lexium Step Driver (Pulse/Dir.,Rm), 6.8A

Schneider Electric
SKU:
SD326RU68S2
|
UPC:
3389119224352
$1,040.56
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
motion control stepper motor drive - SD326 - pulse/direction - <= 6.8 A
Additional Information
Inrush Current:
60 A
Maximum Motor Phase Current:
6.8 A
Short-Circuit Current:
0.5 kA
Supply Voltage Type:
AC/DC
Physical Interface:
RS422 - ENC_A/ENC_B signal input
Range Of Product:
Lexium SD3
Electromagnetic Compatibility:
electrostatic discharge level 3 IEC 61000-4-2 || immunity to electrical transients level 4 IEC 61000-4-4 || immunity to radiated radio-electrical interference level 3 IEC 61000-4-3 || voltage/current impulse level 3 IEC 61000-4-5
Type Of Cooling:
fan
Maximum Voltage Drop:
<1 V 50 mA load 24 V output signals || <1 V 50 mA load ENC+5V_OUT signal output || <1 V 50 mA load readiness signal output
Maximum Mechanical Speed:
3000 rpm
Associated Fuse Rating:
10 A 115 V || 6 A 230 V
Relative Humidity:
5-85 % without condensation
Operating Altitude:
<= 3280.84 ft (1000 m) without derating || > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm)
Net Weight:
1.2 kg
Input Voltage:
24 V -15 %/+20 % 24 V control voltage
Depth:
140 mm
Format Of The Drive:
block
Communication Interface:
pulse/direction, Integrated
Current Consumption:
<= 0.2 mA 24 V control voltage
[Us] Rated Supply Voltage:
100...120 V - 15...10 % || 200...230 V - 15...10 %
Ambient Air Temperature For Storage:
-25-70 °C
Environmental Disclosure:
ENVPEP111115EN
Nominal Power:
280 W 115 V || 420 W 230 V
Overvoltage Category:
III
Height:
145 mm
Supply Voltage Limits:
100-120 V || 200-240 V
Phase:
single phase
Voltage State 0 Guaranteed:
<= 5 V 24 V optocoupler input signals || <= 0.5 V 5 V optocoupler input signals
Voltage State 1 Guaranteed:
15...30 V 24 V optocoupler input signals || 2.5...5.25 V 5 V optocoupler input signals
Rohs Exemption Information:
Yes
Ambient Air Temperature For Operation:
0-40 °C UL || 0-50 °C
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Maximum Leakage Current:
30 mA IEC 60990-3
Maximum Input Frequency:
200 kHz 24 V optocoupler input signals || 200 kHz 5 V optocoupler input signals || 400 kHz ENC_A/ENC_B signal input
Pvc Free:
Yes
Sustainable Offer Status:
Green Premium product
Width:
72 mm
China Rohs Regulation:
X
Function Available:
rotation monitoring || holding brake monitoring
Vibration Resistance:
1 gn 13-150 Hz)IEC 60068-2-6 || 1.5 mm 3-13 Hz)IEC 60068-2-6
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Input Current:
25 mA 5 V optocoupler input signals || 7 mA 24 V optocoupler input signals
Marking:
CE
Residual Ripple:
<= 5 % 24 V control voltage)
Circularity Profile:
ENVEOLI111103EN
Product Or Component Type:
motion stepper drive
Warranty:
18 months
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Device Short Name:
SD326
Mercury Free:
Yes
Network Frequency Limits:
50-60 Hz - 15...10 %)
Ip Degree Of Protection:
IP20 || on upper part: IP40 (without removal of protective film)
Maximum Switching Current:
200 mA readiness signal output) || 50 mA 24 V output signals)RM-FAULT_OUT || 1.7 mA 24 V output signals)+BRAKE_OUT
Output Voltage:
<= 30 V 24 V output signals) || 4.75...5.25 V ENC+5V_OUT signal output)
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Maximum Switching Voltage:
30 V DC readiness signal output)
Pollution Degree:
level 2
Standards:
IEC 61800-3 environment 1 || IEC 61800-5-1 || IEC 61800-3 || EN/IEC 61800-3 environment 2 || IEC 50178
Product Certifications:
UL || cUL
Catalog:
View
Datasheet:
View
