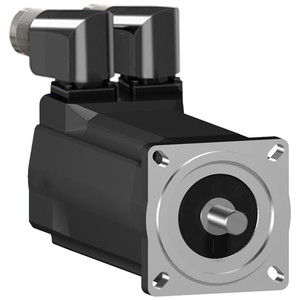

Schneider Electric SH30701P11F2200 Sh3 Motor 070.1 Key Sgl Brk Ang Ip65

SKU:

SH30701P11F2200

UPC:

3.60648E+12

MPN:

Condition:

New

Number Of Motor Poles:

3

Shaft End:

parallel key

Continuous Stall Current:

1.8 A

Mercury Free:

Yes

Shaft Diameter:

11 mm

Phase:

three phase

Stator Inductance:

60.25 mH

Ip Degree Of Protection:

motor IP65 IEC 60034-5 || shaft bushing IP65 IEC 60034-5 || housing IP67 IEC 60034-5

[Us] Rated Supply Voltage:

115...480 V

Continuous Power:

690 W

Type Of Cooling:

natural convection

Rohs Exemption Information:

Yes

Sustainable Offer Status:

Green Premium product

Maximum Mechanical Speed:

8000 rpm

Product Or Component Type:

servo motor

Mounting Support:

international standard flange

Mounting Holes Diameter:

5.5 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Circle Diameter Of The Mounting Holes:

82 mm

Nominal Speed:

1500 rpm 115 V single phase || 3000 rpm 230 V single phase || 6000 rpm 400 V three phase || 7200 rpm 480 V three phase

Stator Resistance:

10.4 Ohm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Centring Collar Diameter:

60 mm

Rotor Inertia:

0.322 kg.cm²

Speed Feedback Resolution:

128 periods

Length:

179.5 mm

Maximum Current Irms:

5.7 A

Maximum Axial Force Fa:

80 N

Torque Constant:

0.69 N.m/A 120 °C

Shaft Length:

23 mm

Pvc Free:

Yes

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Holding Torque:

3 N.m

Device Short Name:

SH3.....P

Maximum Radial Force Fr:

660 N 1000 rpm || 520 N 2000 rpm || 460 N 3000 rpm || 410 N 4000 rpm || 380 N 5000 rpm || 360 N 6000 rpm

Centring Collar Depth:

2.5 mm

Motor Flange Size:

70 mm

Holding Brake:

with

Peak Stall Torque:

3.5 N.m 115...480 V three phase

Key Width:

4 mm

Electrical Connection:

straight connector

Continuous Stall Torque:

1.25 N.m 115...480 V three phase

Encoder Type:

absolute single turn SinCos Hiperface

Nominal Torque:

1.4 N.m 115 V single phase || 1.4 N.m 230 V single phase || 1.1 N.m 400 V three phase || 1.1 N.m 480 V three phase

China Rohs Regulation:

X

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Warranty:

18 months

Nominal Output Power:

220 W 115 V single phase || 440 W 230 V single phase || 820 W 400 V three phase || 950 W 480 V three phase

Range Compatibility:

PacDrive 3

Environmental Disclosure:

ENVPEP111049EN

Net Weight:

2.3 kg

Number Of Mounting Holes:

4

Back Emf Constant:

46 V/krpm 20 °C

Circularity Profile:

N/A
