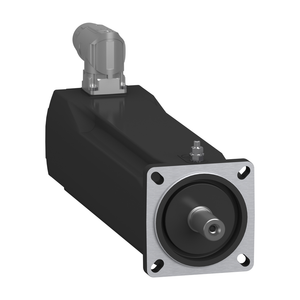

Schneider Electric SH30703P1AA4100 Sh3 Motor 070.3 Key Sgl Omc Ang Ip65

Schneider Electric SH30703P1AA4100 Sh3 Motor 070.3 Key Sgl Omc Ang Ip65

Schneider Electric
SKU:
SH30703P1AA4100
|
UPC:
3606481803542
$1,950.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Lexium SH3 Servo motors are designed to fit Lexium 62 and Lexium 52 servo drives, part of PacDrive 3, an automation solution for motion centric machines. The servo motor features maximum mechanical speed of 8000RPM and keyed shaft end without holding brake. It is equipped with an absolute single turn Hiperface (DSL 18bit, EKS36) encoder. It figures as single angular turntable connector (One motor cable connectivity) for connecting a hybrid cable (DSL cable with quick lock connector). It is a servo motor with a rated supply voltage of 115V to 480V, a continuous stall current of 21.3A and a continuous power of 4040W. Shaft end and casing are IP65 rated. The flange size is 70mm, it is fixed by 4x 5.5mm holes. The circle diameter of the mounting holes is 82mm. it weighs 3.6kg. SH3 servo motors with Lexium 62 multi axis servo drives meet the requirements of production and packaging machinery, material handling and assembly systems. Lexium SH3 servo motors are UL UR and conform to UL1004 as well as European directives CE and UKCA. This SH3 servo motor figuring One-Motor Cable connectivity is compatible with a Lexium 62 servo drive. All mounting positions are permitted (horizontal mounting (IMB5), vertical mounting (IMV1, IMV3) in accordance with IEC 60034-7. Lexium SH3 motors are prime solution to the need for dynamic performance, covering a continuous stall torque range (0.2 to 94.4Nm) for speeds up to 9000 rpm. Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions.
Additional Information
Stator Resistance:
2.7 Ohm
Phase:
three phase
Ip Degree Of Protection:
motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5
Holding Brake:
without
Peak Stall Torque:
11.3 N.m 115...480 V three phase
Product Or Component Type:
servo motor
Centring Collar Diameter:
60 mm
Pvc Free:
Yes
Electrical Connection:
rotatable right angled connector
Continuous Power:
1330 W
Environmental Disclosure:
ENVPEP111049EN
Motor Flange Size:
70 mm
Stator Inductance:
14.6 mH
Type Of Cooling:
natural convection
Maximum Current Irms:
17 A
Number Of Motor Poles:
3
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Maximum Axial Force Fa:
160 N
China Rohs Regulation:
X
[Us] Rated Supply Voltage:
115...480 V
Rohs Exemption Information:
Yes
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Nominal Torque:
2.8 N.m 230 V single phase || 2.1 N.m 400 V three phase || 2.1 N.m 480 V three phase
Shaft End:
parallel key
Mounting Support:
international standard flange
Nominal Output Power:
830 W 230 V single phase || 1330 W 400 V three phase || 1330 W 480 V three phase
Mounting Holes Diameter:
5.5 mm
Net Weight:
3.6 kg
Back Emf Constant:
49 V/krpm 20 °C
Maximum Mechanical Speed:
8000 rpm
Number Of Mounting Holes:
4
Maximum Radial Force Fr:
1050 N 1000 rpm
Rotor Inertia:
0.580 kg.cm²
Sustainable Offer Status:
Green Premium product
Centring Collar Depth:
2.5 mm
Nominal Speed:
3000 rpm 230 V single phase || 6000 rpm 400 V three phase || 7200 rpm 480 V three phase
Continuous Stall Current:
4.1 A
Device Short Name:
SH3.....P
Circle Diameter Of The Mounting Holes:
82 mm
Shaft Length:
30 mm
Length:
220 mm
Range Compatibility:
PacDrive 3
Mercury Free:
Yes
Key Width:
5 mm
Torque Constant:
0.72 N.m/A 120 °C
Continuous Stall Torque:
2.94 N.m 115...480 V three phase
Speed Feedback Resolution:
262144 points/turn
Circularity Profile:
N/A
Shaft Diameter:
14 mm
Encoder Type:
absolute single turn Hiperface DSL
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Catalog:
View
Datasheet:
View
