Schneider Electric

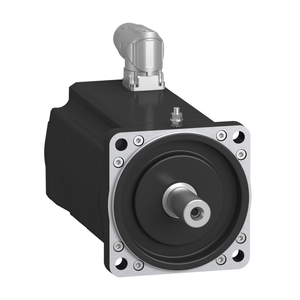

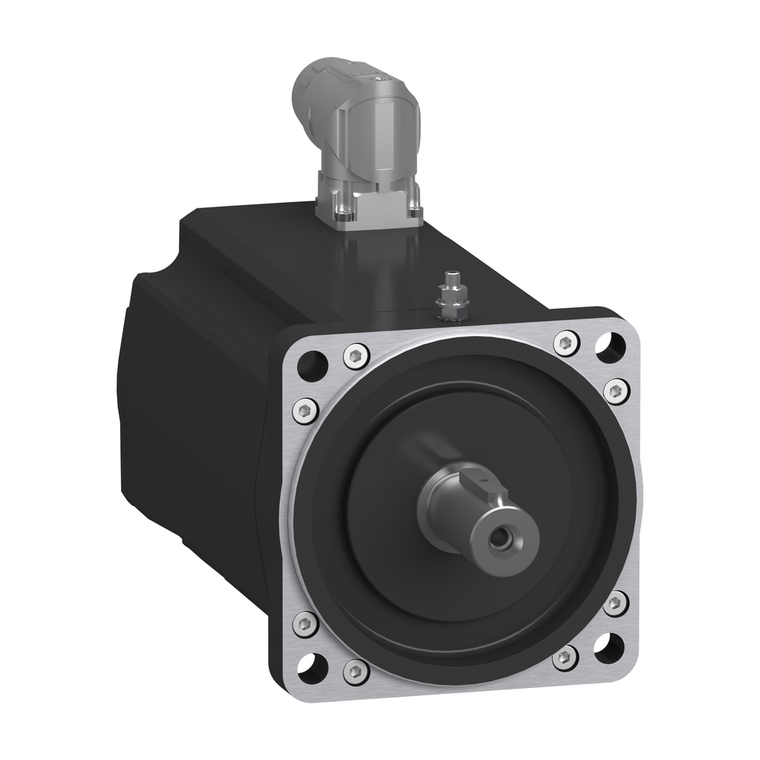

Schneider Electric SH31001P1AA4100 Sh3 Motor 100.1 Key Sgl Omc Ang Ip65

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric SH31001P1AA4100 Sh3 Motor 100.1 Key Sgl Omc Ang Ip65

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SH31001P1AA4100

UPC:

3.60648E+12

MPN:

Condition:

New

Motor Flange Size:

100 mm

Number Of Motor Poles:

4

Circularity Profile:

N/A

Type Of Cooling:

natural convection

Net Weight:

4.3 kg

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Nominal Speed:

2500 rpm 230 V single phase || 5000 rpm 400 V three phase || 6000 rpm 480 V three phase

[Us] Rated Supply Voltage:

115...480 V

Stator Inductance:

19 mH

Shaft Diameter:

19 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Centring Collar Diameter:

95 mm

Length:

168.5 mm

Rohs Exemption Information:

Yes

Mercury Free:

Yes

Continuous Stall Current:

3.5 A

Speed Feedback Resolution:

262144 points/turn

Product Or Component Type:

servo motor

Pvc Free:

Yes

Continuous Power:

1190 W

Shaft End:

parallel key

Encoder Type:

absolute single turn Hiperface DSL

Maximum Radial Force Fr:

1530 N 2000 rpm || 1340 N 3000 rpm || 1930 N 1000 rpm

Environmental Disclosure:

ENVPEP111049EN

Continuous Stall Torque:

2.94 N.m 115...480 V three phase

Shaft Length:

40 mm

Holding Brake:

without

Torque Constant:

0.84 N.m/A 120 °C

Number Of Mounting Holes:

4

Nominal Torque:

2.64 N.m 230 V single phase || 2.27 N.m 400 V three phase || 2.27 N.m 480 V three phase

Stator Resistance:

3.8 Ohm

Circle Diameter Of The Mounting Holes:

115 mm

China Rohs Regulation:

X

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Electrical Connection:

straight connector

Mounting Holes Diameter:

9.0 mm

Mounting Support:

international standard flange

Key Width:

6 mm

Maximum Current Irms:

0

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Nominal Output Power:

690 W 230 V single phase || 1190 W 400 V three phase || 1190 W 480 V three phase

Maximum Mechanical Speed:

6000 rpm

Maximum Axial Force Fa:

300 N

Sustainable Offer Status:

Green Premium product

Peak Stall Torque:

9.6 N.m 115...480 V three phase

Back Emf Constant:

60 V/krpm 20 °C

Range Compatibility:

PacDrive 3

Centring Collar Depth:

3.5 mm

Device Short Name:

SH3.....P

Rotor Inertia:

1.40 kg.cm²

Phase:

three phase
