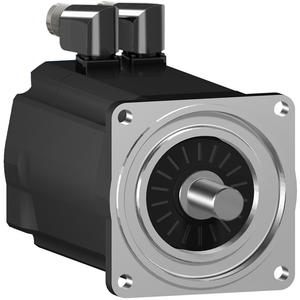

Schneider Electric SH31002P01A2200 Sh3 Motor 100.2 Sgl Ang Ip65

SKU:

SH31002P01A2200

UPC:

3606481972354

MPN:

Condition:

New

Encoder Type:

absolute single turn SinCos Hiperface

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Motor Flange Size:

100 mm

Maximum Current Irms:

17.1 A

Nominal Speed:

1000 rpm 115 V single phase || 2000 rpm 230 V single phase || 4000 rpm 400 V three phase || 4800 rpm 480 V three phase

Back Emf Constant:

77 V/krpm 20 °C

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Maximum Radial Force Fr:

990 N 1000 rpm || 790 N 2000 rpm || 690 N 3000 rpm || 620 N 4000 rpm

Peak Stall Torque:

18.3 N.m 115...480 V three phase

Environmental Disclosure:

ENVPEP111049EN

Shaft End:

smooth shaft

Pvc Free:

Yes

Net Weight:

5.8 kg

China Rohs Regulation:

X

Mercury Free:

Yes

Circle Diameter Of The Mounting Holes:

115 mm

Length:

204.5 mm

Device Short Name:

SH3.....P

Nominal Torque:

5.5 N.m 115 V single phase || 5.2 N.m 230 V single phase || 4.6 N.m 400 V three phase || 4.4 N.m 480 V three phase

Rotor Inertia:

2.31 kg.cm²

Shaft Diameter:

19 mm

Nominal Output Power:

580 W 115 V single phase || 1090 W 230 V single phase || 1930 W 400 V three phase || 2210 W 480 V three phase

Mounting Support:

international standard flange

Stator Inductance:

19.5 mH

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5 || housing IP67 EN/IEC 60034-5

Number Of Motor Poles:

4

Electrical Connection:

straight connector

Torque Constant:

1.21 N.m/A 120 °C

Phase:

three phase

Product Or Component Type:

servo motor

Range Compatibility:

PacDrive 3

Type Of Cooling:

natural convection

Circularity Profile:

N/A

Stator Resistance:

2.4 Ohm

Rohs Exemption Information:

Yes

Holding Brake:

without

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Shaft Length:

40 mm

Centring Collar Diameter:

95 mm

Sustainable Offer Status:

Green Premium product

[Us] Rated Supply Voltage:

115...480 V

Maximum Mechanical Speed:

6000 rpm

Maximum Axial Force Fa:

160 N

Number Of Mounting Holes:

4

Centring Collar Depth:

3.5 mm

Continuous Stall Torque:

5.8 N.m 115...480 V three phase

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Speed Feedback Resolution:

128 periods

Continuous Power:

1900 W

Continuous Stall Current:

4.8 A

Warranty:

18 months

Mounting Holes Diameter:

9.0 mm
