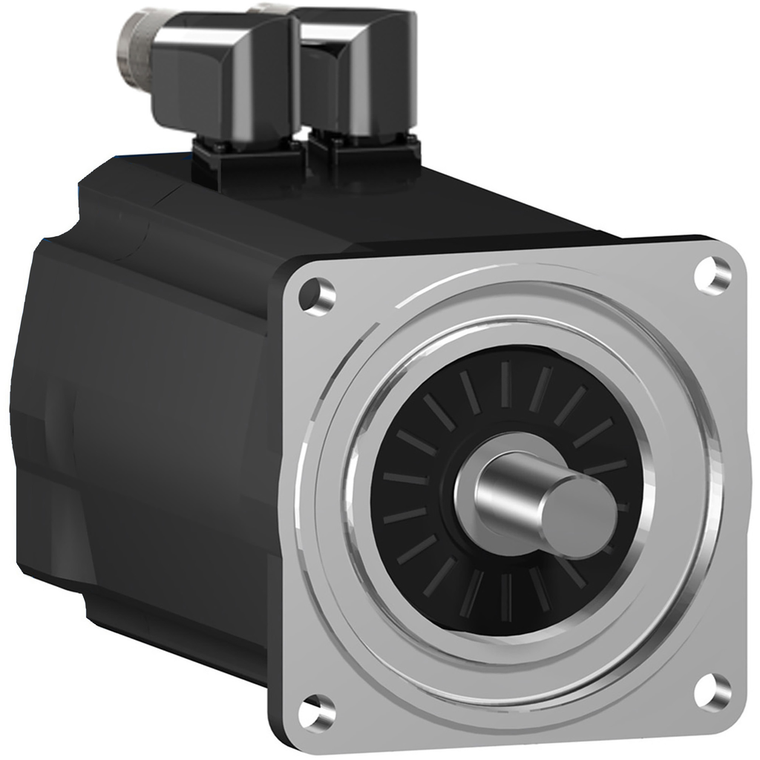

Schneider Electric SH31002P01F2200 Sh3 Motor 100.2 Sgl Brk Ang Ip65

SKU:

SH31002P01F2200

UPC:

3606481972385

MPN:

Condition:

New

Environmental Disclosure:

ENVPEP111049EN

Electrical Connection:

straight connector

Number Of Mounting Holes:

4

Warranty:

18 months

Shaft Diameter:

19 mm

Net Weight:

6.3 kg

Maximum Current Irms:

17.1 A

Nominal Speed:

1000 rpm 115 V single phase || 2000 rpm 230 V single phase || 4000 rpm 400 V three phase || 4800 rpm 480 V three phase

Stator Resistance:

2.4 Ohm

Maximum Mechanical Speed:

6000 rpm

Continuous Stall Torque:

5.8 N.m 115...480 V three phase

Continuous Stall Current:

4.8 A

Stator Inductance:

19.5 mH

Mercury Free:

Yes

Pvc Free:

Yes

Mounting Holes Diameter:

9.0 mm

Peak Stall Torque:

18.3 N.m 115...480 V three phase

Maximum Radial Force Fr:

990 N 1000 rpm || 790 N 2000 rpm || 690 N 3000 rpm || 620 N 4000 rpm

Shaft End:

smooth shaft

Range Compatibility:

PacDrive 3

Continuous Power:

1900 W

Centring Collar Depth:

3.5 mm

Torque Constant:

1.21 N.m/A 120 °C

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Nominal Torque:

5.5 N.m 115 V single phase || 5.2 N.m 230 V single phase || 4.6 N.m 400 V three phase || 4.4 N.m 480 V three phase

Device Short Name:

SH3.....P

Speed Feedback Resolution:

128 periods

Holding Torque:

9 N.m

Number Of Motor Poles:

4

Circularity Profile:

N/A

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5 || housing IP67 EN/IEC 60034-5

Back Emf Constant:

77 V/krpm 20 °C

Circle Diameter Of The Mounting Holes:

115 mm

Sustainable Offer Status:

Green Premium product

Mounting Support:

international standard flange

Holding Brake:

with

Rohs Exemption Information:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Length:

234.5 mm

Encoder Type:

absolute single turn SinCos Hiperface

China Rohs Regulation:

X

Product Or Component Type:

servo motor

Motor Flange Size:

100 mm

Phase:

three phase

Shaft Length:

40 mm

Nominal Output Power:

580 W 115 V single phase || 1090 W 230 V single phase || 1930 W 400 V three phase || 2210 W 480 V three phase

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

[Us] Rated Supply Voltage:

115...480 V

Type Of Cooling:

natural convection

Centring Collar Diameter:

95 mm

Maximum Axial Force Fa:

160 N

Rotor Inertia:

2.928 kg.cm²
