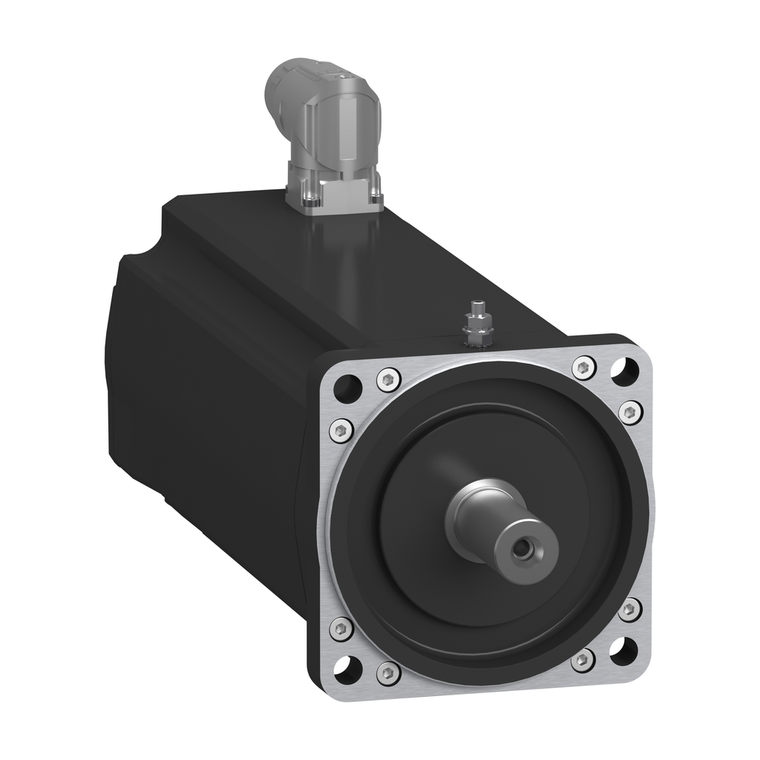

Schneider Electric SH31003P0AA4000 Sh3 Motor 100.3 Sgl Omc Ang Ip54

(No reviews yet) Write a Review

Write a Review

Schneider Electric SH31003P0AA4000 Sh3 Motor 100.3 Sgl Omc Ang Ip54

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SH31003P0AA4000

UPC:

3.60648E+12

MPN:

Condition:

New

Rohs Exemption Information:

Yes

Maximum Radial Force Fr:

3730 N 1000 rpm || 2960 N 2000 rpm || 2580 N 3000 rpm

Electrical Connection:

rotatable right angled connector

China Rohs Regulation:

X

Shaft End:

smooth shaft

Mercury Free:

Yes

Centring Collar Depth:

3.5 mm

Shaft Length:

40 mm

Centring Collar Diameter:

95 mm

Maximum Axial Force Fa:

740 N

Environmental Disclosure:

ENVPEP111049EN

Type Of Cooling:

natural convection

Continuous Power:

2400 W

Maximum Mechanical Speed:

6000 rpm

Torque Constant:

1.22 N.m/A 120 °C

Sustainable Offer Status:

Green Premium product

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing without shaft seal ring IP54 EN/IEC 60034-5

Stator Inductance:

9.4 mH

Range Compatibility:

PacDrive 3

Continuous Stall Current:

6.6 A

Maximum Current Irms:

28.3 A

Length:

240.5 mm

Number Of Mounting Holes:

4

Mounting Holes Diameter:

9.0 mm

Circularity Profile:

N/A

Product Or Component Type:

servo motor

Peak Stall Torque:

28.3 N.m 115...480 V three phase

Number Of Motor Poles:

4

Rotor Inertia:

3.22 kg.cm²

[Us] Rated Supply Voltage:

115...480 V

Circle Diameter Of The Mounting Holes:

115 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Net Weight:

7.5 kg

Device Short Name:

SH3.....P

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Shaft Diameter:

19 mm

Nominal Output Power:

1470 W 230 V single phase || 2390 W 400 V three phase || 2390 W 480 V three phase

Encoder Type:

absolute single turn Hiperface DSL

Speed Feedback Resolution:

262144 points/turn

Phase:

three phase

Nominal Torque:

7 N.m 230 V single phase || 5.7 N.m 400 V three phase || 5.1 N.m 480 V three phase

Continuous Stall Torque:

8 N.m 115...480 V three phase

Mounting Support:

international standard flange

Pvc Free:

Yes

Stator Resistance:

1.43 Ohm

Nominal Speed:

2000 rpm 230 V single phase || 4000 rpm 400 V three phase || 4800 rpm 480 V three phase

Motor Flange Size:

100 mm

Holding Brake:

without

Back Emf Constant:

77 V/krpm 20 °C

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold
