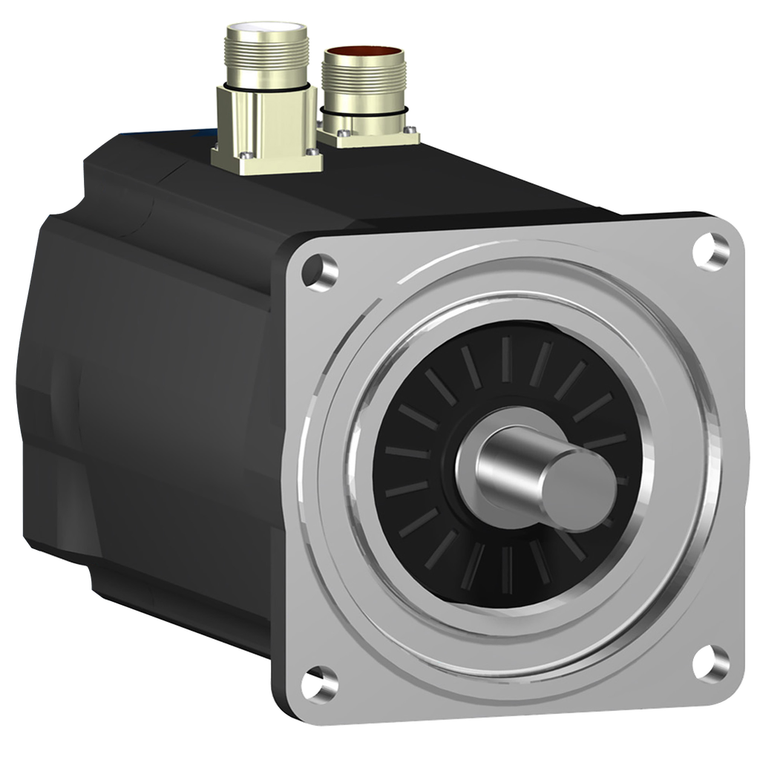

Schneider Electric SH31003P11A1000 Sh3 Motor 100.3 Key Sgl Str Ip54

SKU:

SH31003P11A1000

UPC:

3.60648E+12

MPN:

Condition:

New

Key Width:

6 mm

Shaft Diameter:

19 mm

Sustainable Offer Status:

Green Premium product

Centring Collar Depth:

3.5 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Mercury Free:

Yes

Electrical Connection:

rotatable right angled connector

Centring Collar Diameter:

95 mm

Product Or Component Type:

servo motor

Device Short Name:

SH3.....P

Torque Constant:

1.22 N.m/A 120 °C

Mounting Holes Diameter:

9.0 mm

Stator Resistance:

1.43 Ohm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Continuous Power:

2400 W

Shaft End:

parallel key

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Number Of Mounting Holes:

4

Range Compatibility:

PacDrive 3

Circularity Profile:

N/A

Maximum Current Irms:

28.3 A

Stator Inductance:

13.45 mH

Shaft Length:

40 mm

Rohs Exemption Information:

Yes

China Rohs Regulation:

X

Ip Degree Of Protection:

shaft bushing without shaft seal ring IP54 EN/IEC 60034-5 || motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5

Phase:

three phase

Continuous Stall Current:

6.6 A

Pvc Free:

Yes

Continuous Stall Torque:

8 N.m 115...480 V three phase

Motor Flange Size:

100 mm

[Us] Rated Supply Voltage:

115...480 V

Net Weight:

7.5 kg

Speed Feedback Resolution:

128 periods

Rotor Inertia:

3.22 kg.cm²

Maximum Radial Force Fr:

1050 N 1000 rpm || 830 N 2000 rpm || 730 N 3000 rpm || 660 N 4000 rpm

Holding Brake:

without

Circle Diameter Of The Mounting Holes:

115 mm

Warranty:

18 months

Back Emf Constant:

77 V/krpm 20 °C

Peak Stall Torque:

28.3 N.m 115...480 V three phase

Length:

240.5 mm

Maximum Mechanical Speed:

6000 rpm

Nominal Speed:

1000 rpm 115 V single phase || 2000 rpm 230 V single phase || 4000 rpm 400 V three phase || 4800 rpm 480 V three phase

Environmental Disclosure:

ENVPEP111049EN

Maximum Axial Force Fa:

160 N

Number Of Motor Poles:

4

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Type Of Cooling:

natural convection

Encoder Type:

absolute single turn SinCos Hiperface

Mounting Support:

international standard flange

Nominal Output Power:

790 W 115 V single phase || 1470 W 230 V single phase || 2390 W 400 V three phase || 2560 W 480 V three phase

Nominal Torque:

5.1 N.m 480 V three phase || 7.5 N.m 115 V single phase || 7 N.m 230 V single phase || 5.7 N.m 400 V three phase

Catalog:

View
