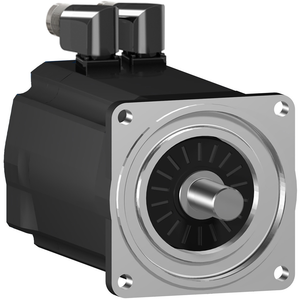

Schneider Electric SH31003P11F2200 Sh3 Motor 100.3 Key Sgl Brk Ang Ip65

SKU:

SH31003P11F2200

UPC:

3606481972675

MPN:

Condition:

New

Continuous Stall Torque:

8 N.m 115...480 V three phase

Sustainable Offer Status:

Green Premium product

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Continuous Stall Current:

6.6 A

Electrical Connection:

rotatable right angled connector

Phase:

three phase

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Number Of Motor Poles:

4

Maximum Radial Force Fr:

1050 N 1000 rpm || 830 N 2000 rpm || 730 N 3000 rpm || 660 N 4000 rpm

Stator Inductance:

13.45 mH

Length:

271.5 mm

Back Emf Constant:

77 V/krpm 20 °C

China Rohs Regulation:

X

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5 || housing IP67 EN/IEC 60034-5

Maximum Mechanical Speed:

6000 rpm

Rohs Exemption Information:

Yes

Shaft Length:

40 mm

Shaft Diameter:

19 mm

Peak Stall Torque:

28.3 N.m 115...480 V three phase

Type Of Cooling:

natural convection

Stator Resistance:

1.43 Ohm

Nominal Output Power:

790 W 115 V single phase || 1470 W 230 V single phase || 2390 W 400 V three phase || 2560 W 480 V three phase

Rotor Inertia:

3.838 kg.cm²

Product Or Component Type:

servo motor

Mounting Support:

international standard flange

Centring Collar Diameter:

95 mm

Warranty:

18 months

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

[Us] Rated Supply Voltage:

115...480 V

Motor Flange Size:

100 mm

Maximum Axial Force Fa:

160 N

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Centring Collar Depth:

3.5 mm

Device Short Name:

SH3.....P

Nominal Torque:

5.1 N.m 480 V three phase || 7.5 N.m 115 V single phase || 7 N.m 230 V single phase || 5.7 N.m 400 V three phase

Range Compatibility:

PacDrive 3

Net Weight:

8 kg

Holding Brake:

with

Number Of Mounting Holes:

4

Continuous Power:

2400 W

Pvc Free:

Yes

Circularity Profile:

N/A

Shaft End:

parallel key

Maximum Current Irms:

28.3 A

Mercury Free:

Yes

Circle Diameter Of The Mounting Holes:

115 mm

Torque Constant:

1.22 N.m/A 120 °C

Nominal Speed:

1000 rpm 115 V single phase || 2000 rpm 230 V single phase || 4000 rpm 400 V three phase || 4800 rpm 480 V three phase

Speed Feedback Resolution:

128 periods

Key Width:

6 mm

Holding Torque:

9 N.m

Encoder Type:

absolute single turn SinCos Hiperface

Mounting Holes Diameter:

9.0 mm

Environmental Disclosure:

ENVPEP111049EN

Catalog:

View

Datasheet:

View
