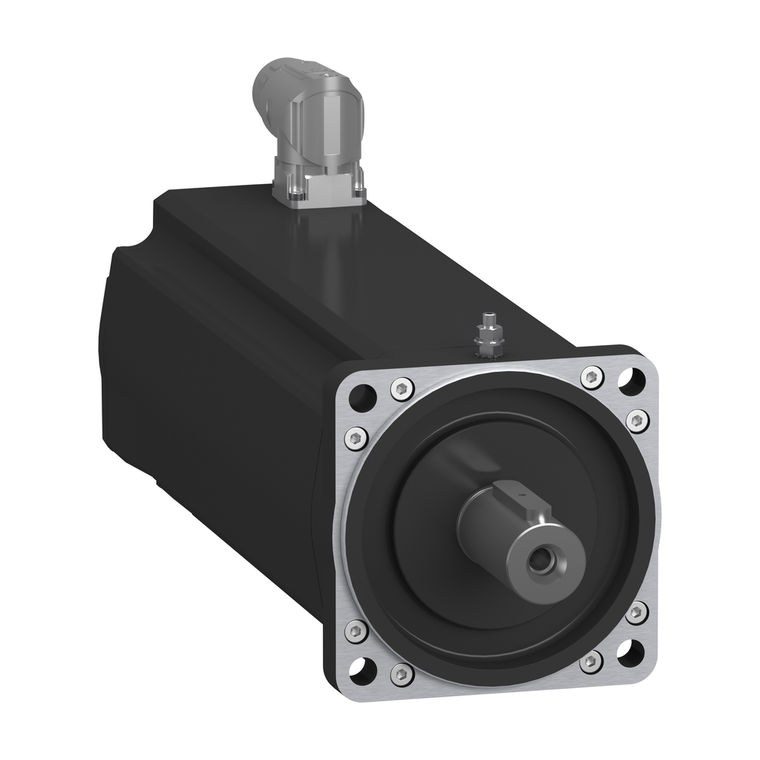

Schneider Electric SH31004P1AA4000 Sh3 Motor 100.4 Key Sgl Omc Ang Ip54

Schneider Electric SH31004P1AA4000 Sh3 Motor 100.4 Key Sgl Omc Ang Ip54

Schneider Electric
SKU:
SH31004P1AA4000
|
UPC:
3606481804815
$2,753.75
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
Lexium SH3 Servo motors are designed to fit Lexium 62 and Lexium 52 servo drives, part of PacDrive 3, an automation solution for motion centric machines. The servo motor features maximum mechanical speed of 6000RPM and keyed shaft end without holding brake. It is equipped with an absolute single turn Hiperface (DSL 18bit, EKS36) encoder. It figures as single angular turntable connector (One motor cable connectivity) for connecting a hybrid cable (DSL cable with quick lock connector). It is a servo motor with a rated supply voltage of 115V to 480V, a continuous stall current of 7.8A and a continuous power of 2900W. Shaft end is an IP54 rated, casing is an IP65 rated. The flange size is 70mm, it is fixed by 4x 9mm holes. The circle diameter of the mounting holes is 115mm. it weighs 9.1kg. SH3 servo motors with Lexium 62 multi axis servo drives meet the requirements of production and packaging machinery, material handling and assembly systems. Lexium SH3 servo motors are UL UR and conform to UL1004 as well as European directives CE and UKCA. This SH3 servo motor figuring One-Motor Cable connectivity is compatible with a Lexium 62 servo drive. All mounting positions are permitted (horizontal mounting (IMB5), vertical mounting (IMV1, IMV3) in accordance with IEC 60034-7. Lexium SH3 motors are prime solution to the need for dynamic performance, covering a continuous stall torque range (0.2 to 94.4Nm) for speeds up to 9000 rpm. Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions.
Additional Information
Maximum Axial Force Fa:
20 N
Mercury Free:
Yes
Product Or Component Type:
servo motor
Holding Brake:
without
Centring Collar Diameter:
95 mm
Nominal Speed:
1500 rpm 230 V single phase || 3000 rpm 400 V three phase || 3600 rpm 480 V three phase
Sustainable Offer Status:
Green Premium product
Continuous Power:
2500 W
China Rohs Regulation:
X
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Key Width:
8 mm
Shaft End:
parallel key
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Back Emf Constant:
103 V/krpm 20 °C
Device Short Name:
SH3.....P
Pvc Free:
Yes
Motor Flange Size:
100 mm
Nominal Torque:
9.5 N.m 230 V single phase || 7.9 N.m 400 V three phase || 6.9 N.m 480 V three phase
Peak Stall Torque:
40.5 N.m 115...480 V three phase
Maximum Mechanical Speed:
6000 rpm
Torque Constant:
1.62 N.m/A 120 °C
Nominal Output Power:
1490 W 230 V single phase || 2480 W 400 V three phase || 2480 W 480 V three phase
Net Weight:
9.1 kg
[Us] Rated Supply Voltage:
115...480 V
Phase:
three phase
Range Compatibility:
PacDrive 3
Rohs Exemption Information:
Yes
Shaft Length:
50 mm
Number Of Motor Poles:
4
Stator Inductance:
13 mH
Rotor Inertia:
4.22 kg.cm²
Maximum Radial Force Fr:
130 N 1000 rpm || 105 N 2000 rpm || 90 N 3000 rpm
Ip Degree Of Protection:
motor IP65 EN/IEC 60034-5 || shaft bushing without shaft seal ring IP54 EN/IEC 60034-5
Continuous Stall Current:
6.2 A
Number Of Mounting Holes:
4
Stator Resistance:
1.8 Ohm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mounting Support:
international standard flange
Type Of Cooling:
natural convection
Speed Feedback Resolution:
262144 points/turn
Maximum Current Irms:
32.3 A
Encoder Type:
absolute single turn Hiperface DSL
Environmental Disclosure:
ENVPEP111049EN
Shaft Diameter:
24 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Continuous Stall Torque:
10 N.m 115...480 V three phase
Length:
276.5 mm
Mounting Holes Diameter:
9.0 mm
Circularity Profile:
N/A
Circle Diameter Of The Mounting Holes:
115 mm
Electrical Connection:
straight connector
Centring Collar Depth:
3.5 mm
Catalog:
View
Datasheet:
View
