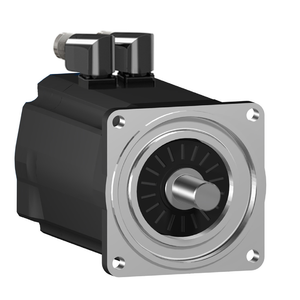

Schneider Electric SH31403P02F2100 Sh3 Motor 140.3 Mlt Brk Ang Ip65

SKU:

SH31403P02F2100

UPC:

3606485458243

MPN:

Condition:

New

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Number Of Motor Poles:

5

Number Of Mounting Holes:

4

[Us] Rated Supply Voltage:

115...480 V

Electrical Connection:

rotatable right angled connector

Stator Inductance:

7.72 mH

Stator Resistance:

0.4 Ohm

Peak Stall Torque:

90.2 N.m 115...480 V three phase

Sustainable Offer Status:

Green Premium product

Continuous Stall Torque:

27.8 N.m 115...480 V three phase

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Motor Flange Size:

140 mm

Holding Torque:

36 N.m

Net Weight:

23.1 kg

Warranty:

18 months

Mounting Support:

international standard flange

Mercury Free:

Yes

Encoder Type:

absolute multiturn SinCos Hiperface

Type Of Cooling:

natural convection

Rohs Exemption Information:

Yes

Holding Brake:

with

Phase:

three phase

Maximum Radial Force Fr:

2420 N 1000 rpm || 1920 N 2000 rpm || 1670 N 3000 rpm

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5

Product Or Component Type:

servo motor

Range Compatibility:

PacDrive 3

Back Emf Constant:

105 V/krpm 20 °C

Continuous Stall Current:

17.6 A

Nominal Output Power:

1940 W 115 V single phase || 3330 W 230 V single phase || 4050 W 400 V three phase || 3430 W 480 V three phase

Device Short Name:

SH3.....P

Speed Feedback Resolution:

128 periods

Circularity Profile:

N/A

Maximum Axial Force Fa:

300 N

Nominal Speed:

750 rpm 115 V single phase || 1500 rpm 230 V single phase || 3000 rpm 400 V three phase || 3600 rpm 480 V three phase

Mounting Holes Diameter:

11 mm

Shaft Diameter:

24 mm

Maximum Mechanical Speed:

4000 rpm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Shaft Length:

50 mm

Length:

365.5 mm

Pvc Free:

Yes

Shaft End:

smooth shaft

Continuous Power:

4100 W

Rotor Inertia:

23.44 kg.cm²

Centring Collar Depth:

3.5 mm

Circle Diameter Of The Mounting Holes:

165 mm

Torque Constant:

1.58 N.m/A 120 °C

Maximum Current Irms:

61 A

Nominal Torque:

24.7 N.m 115 V single phase || 21.2 N.m 230 V single phase || 12.9 N.m 400 V three phase || 9.1 N.m 480 V three phase

China Rohs Regulation:

X

Centring Collar Diameter:

130 mm

Environmental Disclosure:

ENVPEP111049EN
