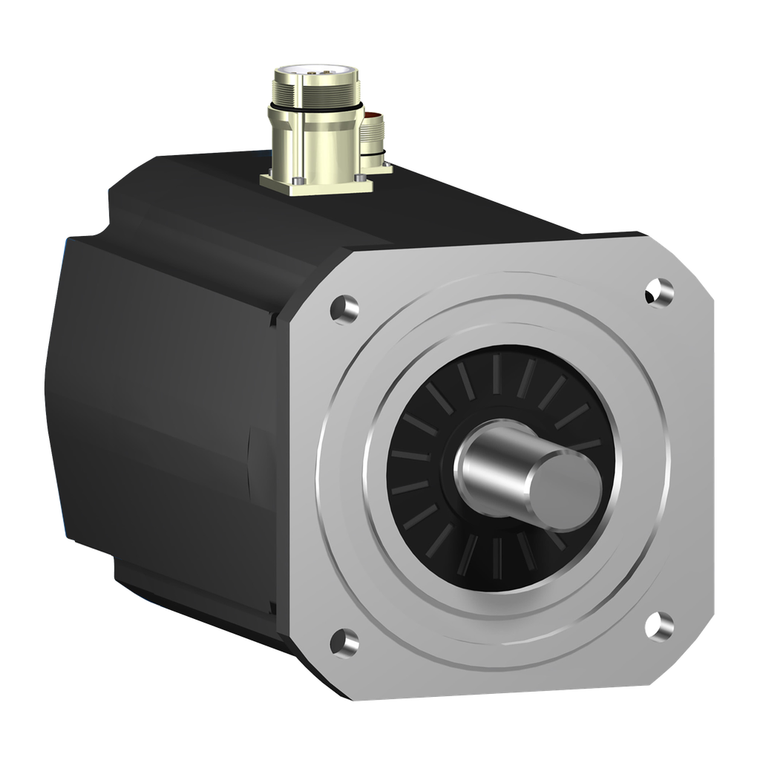

Schneider Electric SH32052P02F1000 Sh3 Motor 205.2 Mlt Brk Str Ip54
SKU:
SH32052P02F1000
UPC:
3606481973474
MPN:
Condition:
New
Number Of Mounting Holes:
4
Length:
454.5 mm
Sustainable Offer Status:
Green Premium product
Phase:
three phase
[Us] Rated Supply Voltage:
115...480 V
Product Or Component Type:
servo motor
Shaft End:
smooth shaft
Speed Feedback Resolution:
128 periods
Continuous Power:
7900 W
Ip Degree Of Protection:
shaft bushing without shaft seal ring IP54 EN/IEC 60034-5 || motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Warranty:
18 months
Stator Resistance:
0.3 Ohm
Net Weight:
53.6 kg
Holding Torque:
80 N.m
Mercury Free:
Yes
Motor Flange Size:
205 mm
Circularity Profile:
N/A
Continuous Stall Current:
25.7 A
Maximum Radial Force Fr:
4200 N 1000 rpm || 3330 N 2000 rpm || 2910 N 3000 rpm
Maximum Mechanical Speed:
3800 rpm
Environmental Disclosure:
ENVPEP111049EN
Pvc Free:
Yes
Mounting Holes Diameter:
14 mm
Holding Brake:
with
Stator Inductance:
8.2 mH
Circle Diameter Of The Mounting Holes:
215 mm
Mounting Support:
international standard flange
Device Short Name:
SH3.....P
Encoder Type:
absolute multiturn SinCos Hiperface
Centring Collar Depth:
4 mm
Rotor Inertia:
145 kg.cm²
Type Of Cooling:
natural convection
Range Compatibility:
PacDrive 3
Torque Constant:
2.58 N.m/A 120 °C
Maximum Axial Force Fa:
740 N
Number Of Motor Poles:
5
Electrical Connection:
rotatable right angled connector
Nominal Torque:
61.6 N.m 115 V single phase || 56 N.m 230 V single phase || 38.1 N.m 400 V three phase || 28.4 N.m 480 V three phase
Peak Stall Torque:
220 N.m 115...480 V three phase
Nominal Output Power:
3230 W 115 V single phase || 5860 W 230 V single phase || 7980 W 400 V three phase || 7140 W 480 V three phase
Nominal Speed:
500 rpm 115 V single phase || 1000 rpm 230 V single phase || 2000 rpm 400 V three phase || 2400 rpm 480 V three phase
China Rohs Regulation:
X
Centring Collar Diameter:
180 mm
Rohs Exemption Information:
Yes
Maximum Current Irms:
96.8 A
Back Emf Constant:
161 V/krpm 20 °C
Shaft Diameter:
38 mm
Shaft Length:
80 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
