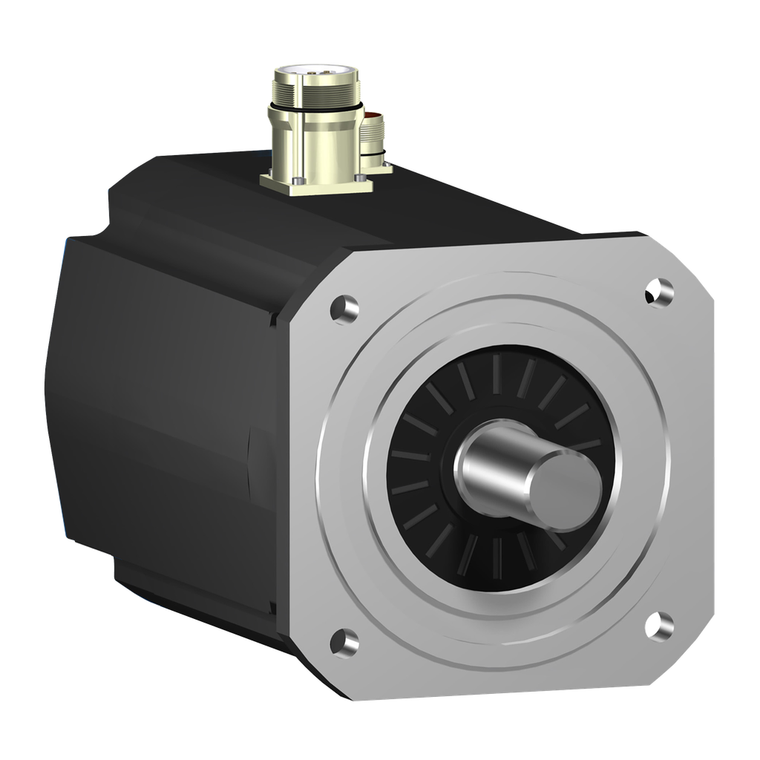

Schneider Electric SH32053P11A1000 Sh3 Motor 205.3 Key Sgl Str Ip54

SKU:

SH32053P11A1000

UPC:

3.60648E+12

MPN:

Condition:

New

Maximum Current Irms:

136.1 A

Motor Flange Size:

205 mm

Encoder Type:

absolute single turn SinCos Hiperface

Centring Collar Depth:

4 mm

Continuous Stall Torque:

94.4 N.m 115...480 V three phase

Nominal Speed:

500 rpm 115 V single phase || 1000 rpm 230 V single phase || 2000 rpm 400 V three phase || 2400 rpm 480 V three phase

Stator Resistance:

0.2 Ohm

Type Of Cooling:

natural convection

China Rohs Regulation:

X

Electrical Connection:

rotatable right angled connector

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Peak Stall Torque:

330 N.m 115...480 V three phase

Maximum Mechanical Speed:

3800 rpm

Rotor Inertia:

190 kg.cm²

Torque Constant:

2.76 N.m/A 120 °C

Range Compatibility:

PacDrive 3

Nominal Output Power:

4450 W 115 V single phase || 7790 W 230 V single phase || 10620 W 400 V three phase || 10100 W 480 V three phase

Sustainable Offer Status:

Green Premium product

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Rohs Exemption Information:

Yes

Holding Brake:

without

Key Width:

10 mm

Centring Collar Diameter:

180 mm

Circularity Profile:

N/A

Shaft Length:

80 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

[Us] Rated Supply Voltage:

115...480 V

Continuous Stall Current:

33.2 A

Speed Feedback Resolution:

128 periods

Phase:

three phase

Mounting Support:

international standard flange

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Number Of Motor Poles:

5

Mounting Holes Diameter:

14 mm

Stator Inductance:

6.3 mH

Back Emf Constant:

172 V/krpm 20 °C

Device Short Name:

SH3.....P

Warranty:

18 months

Net Weight:

67 kg

Circle Diameter Of The Mounting Holes:

215 mm

Mercury Free:

Yes

Continuous Power:

10600 W

Length:

489 mm

Product Or Component Type:

servo motor

Maximum Radial Force Fr:

4500 N 1000 rpm || 3570 N 2000 rpm || 3120 N 3000 rpm

Pvc Free:

Yes

Maximum Axial Force Fa:

740 N

Ip Degree Of Protection:

shaft bushing without shaft seal ring IP54 EN/IEC 60034-5 || motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5

Shaft Diameter:

38 mm

Number Of Mounting Holes:

4

Nominal Torque:

84.9 N.m 115 V single phase || 74.4 N.m 230 V single phase || 50.7 N.m 400 V three phase || 40.2 N.m 480 V three phase

Shaft End:

parallel key

Environmental Disclosure:

ENVPEP111049EN

Catalog:

View

Datasheet:

View
