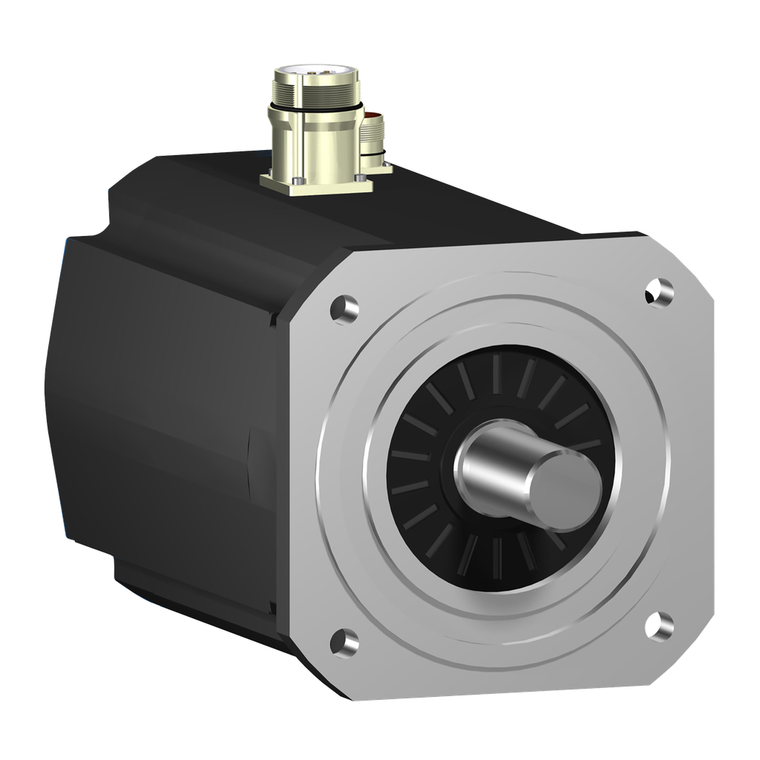

Schneider Electric SH32053P11F1000 Sh3 Motor 205.3 Key Sgl Brk Str Ip54
SKU:
SH32053P11F1000
UPC:
3.60648E+12
MPN:
Condition:
New
Continuous Power:
10600 W
Warranty:
18 months
Maximum Radial Force Fr:
4500 N 1000 rpm || 3570 N 2000 rpm || 3120 N 3000 rpm
Stator Resistance:
0.2 Ohm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Nominal Output Power:
4450 W 115 V single phase || 7790 W 230 V single phase || 10620 W 400 V three phase || 10100 W 480 V three phase
Continuous Stall Current:
33.2 A
Mounting Support:
international standard flange
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Peak Stall Torque:
330 N.m 115...480 V three phase
Stator Inductance:
6.3 mH
Rotor Inertia:
206 kg.cm²
Maximum Mechanical Speed:
3800 rpm
Maximum Current Irms:
136.1 A
Ip Degree Of Protection:
shaft bushing without shaft seal ring IP54 EN/IEC 60034-5 || motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5
Product Or Component Type:
servo motor
Circle Diameter Of The Mounting Holes:
215 mm
Torque Constant:
2.76 N.m/A 120 °C
Back Emf Constant:
172 V/krpm 20 °C
Holding Torque:
80 N.m
Length:
538.5 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Shaft End:
parallel key
Speed Feedback Resolution:
128 periods
Number Of Motor Poles:
5
Encoder Type:
absolute single turn SinCos Hiperface
Range Compatibility:
PacDrive 3
Net Weight:
70.6 kg
Continuous Stall Torque:
94.4 N.m 115...480 V three phase
Motor Flange Size:
205 mm
Device Short Name:
SH3.....P
Centring Collar Depth:
4 mm
Phase:
three phase
Holding Brake:
with
Number Of Mounting Holes:
4
[Us] Rated Supply Voltage:
115...480 V
Maximum Axial Force Fa:
740 N
Type Of Cooling:
natural convection
Electrical Connection:
rotatable right angled connector
Nominal Speed:
500 rpm 115 V single phase || 1000 rpm 230 V single phase || 2000 rpm 400 V three phase || 2400 rpm 480 V three phase
Key Width:
10 mm
Circularity Profile:
N/A
Environmental Disclosure:
ENVPEP111049EN
Mounting Holes Diameter:
14 mm
Shaft Length:
80 mm
Sustainable Offer Status:
Green Premium product
Nominal Torque:
84.9 N.m 115 V single phase || 74.4 N.m 230 V single phase || 50.7 N.m 400 V three phase || 40.2 N.m 480 V three phase
Pvc Free:
Yes
China Rohs Regulation:
X
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
