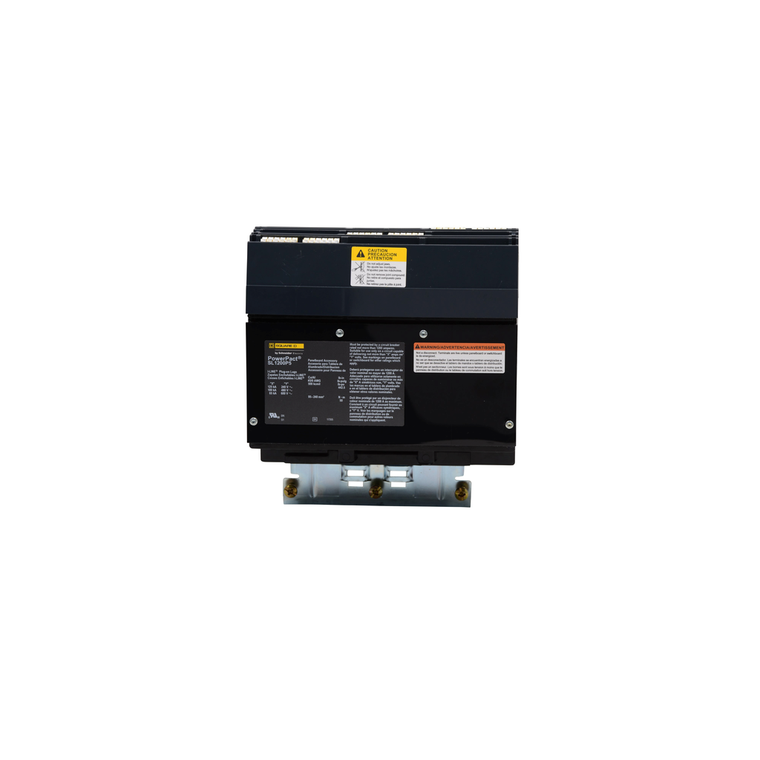

Schneider Electric SL1200P5 Circuit Breaker I-Line Subfeed Lug Kit
Schneider Electric
$3,500.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This is a connection accessory for I-Line panelboards. They have plug on jaw construction and plug on to the I-Line bus stack as branch circuit breakers. Lugs on these devices accommodate the same size wire as the equivalent ampere rated circuit breaker. The lug kit is 3 pole and rated for 1200A. The lugs accept 3/0 AWG to 500 kcmil and accept 4 conductors per lug. This lug kit complies with UL standards.
- Awg Gauge:
- AWG 3/0...500 kcmil
- Eu Rohs Directive:
- Under investigation
- Range Of Product:
- I-Line
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Breaking Capacity Code:
- L
- Line Rated Current:
- 1200-1200 A
- Product Or Component Type:
- sub-feed lug
- Product Certifications:
- UL Listed
