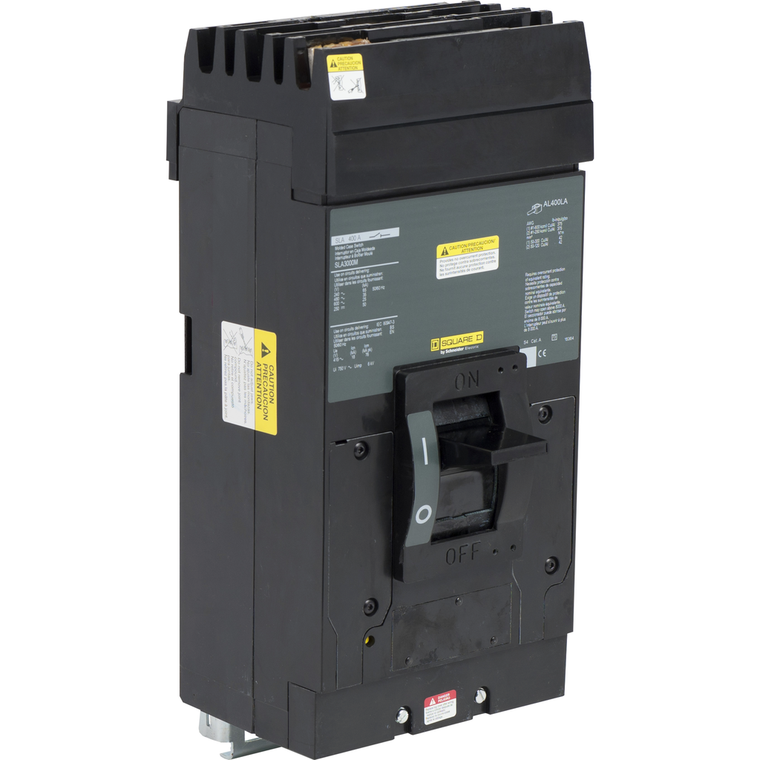

Schneider Electric SLA3000M Automatic Molded Case Switch 415/240V 40

(No reviews yet) Write a Review

Write a Review

Schneider Electric SLA3000M Automatic Molded Case Switch 415/240V 40

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SLA3000M

UPC:

785901686095

MPN:

Condition:

New

Depth:

19.9 in

Breaking Capacity Code:

A

Product Or Component Type:

automatic switch

Mounting Mode:

I-Line

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Sustainable Offer Status:

Green Premium product

Poles Description:

3P

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Width:

12.5 in

Terminal Identifier:

AL400LA

Warranty:

18 months

Mercury Free:

Yes

Product Certifications:

IEC || CE

Eu Rohs Directive:

Compliant with Exemptions

Pvc Free:

Yes

Magnetic Hold Current:

2000 A

Environmental Disclosure:

ENVPEP1410004EN

Rohs Exemption Information:

Yes

Tightening Torque:

13-13 N.m 42-304 mm² (AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)

Height:

12.6 in

Line Rated Current:

400 A

Electrical Connection:

lugs, load || I-Line connection, line

Magnetic Tripping Current:

4000-4000 A

Halogen Content Performance:

Halogen free plastic parts product

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Circularity Profile:

N/A

Datasheet:

View
