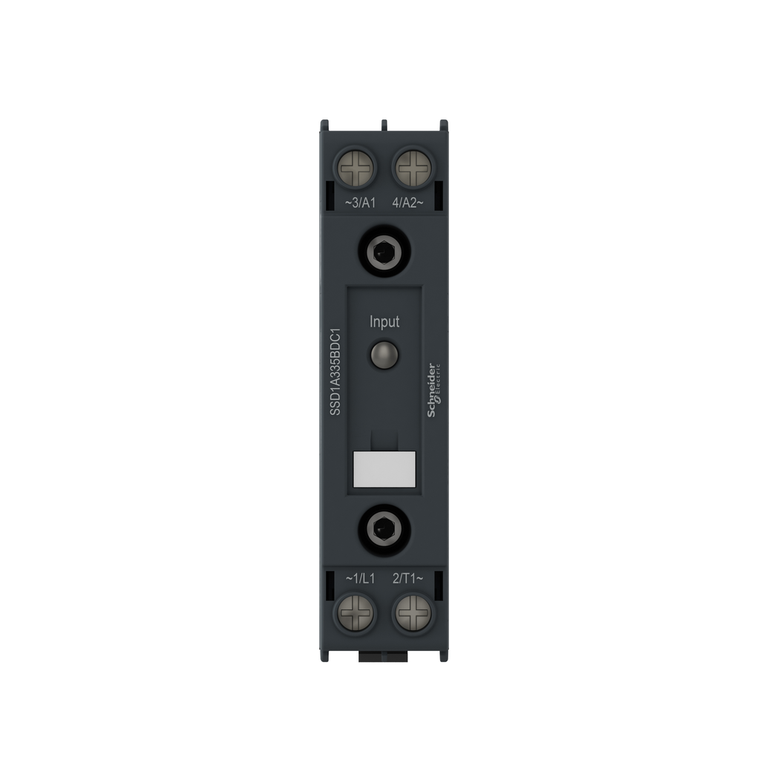

Schneider Electric SSD1A335BDC1 Solid State Relay-Din Rail, Single Phase

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric SSD1A335BDC1 Solid State Relay-Din Rail, Single Phase

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SSD1A335BDC1

UPC:

3606489807894

MPN:

Condition:

New

Flame Retardance:

V-0 conforming to UL 94

Rated Duty:

uninterrupted

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Device Short Name:

SSD1

Number Of Channels:

1

Solid State Output Type:

zero voltage switching

Load Current:

0.15-35 A

Tightening Torque:

1.5...1.7 N.m for control input || 13...15 lb.in for control input || 1.5...1.7 N.m for load output || 13...15 lb.in for load output

[Uimp] Rated Impulse Withstand Voltage:

6 kV for input/output circuit || 6 kV for input or output to case

Circularity Profile:

ENVEOLI1508007EN

Ambient Air Temperature For Storage:

-40-100 °C

Ip Degree Of Protection:

IP20

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Rohs Exemption Information:

Yes

Overvoltage Category:

III

Range Of Product:

Harmony Solid State Relays

Net Weight:

0.298 kg

Standards:

IEC 61373:class B: category 1 || IEC 60947-4-3 || IEC 62314 || IEC 60950-1 || CSA C22.2 No 14-13 || UL 508

Absolute Maximum Voltage:

1200 V

Response Time:

0.5 cycle (turn-on) || 0.5 cycle (turn-off)

[Uc] Control Circuit Voltage:

4...32 V DC

Output Switching Mode:

zero voltage switching

Device Presentation:

complete product

Connections - Terminals:

screw terminals, clamping connection capacity:1...4 mm², AWG 18...AWG 12 for input || screw terminals, clamping connection capacity:1...6 mm², AWG 18...AWG 10 for output

Ambient Air Temperature For Operation:

-40-80 °C

Power Factor:

0.5 with maximum load

Product Or Component Type:

solid state relay up to 40 A

Dv/Dt:

500 V/µs off-state at maximum rated voltage

Maximum Leakage Current:

1 mA off-state

Minimum Switching Voltage:

4 V DC turn-on

Line Rated Current:

35 A

Local Signalling:

for control voltage LED (green)

Contact Form:

Form 5 semiconductor output DOL contactor

Insulation Resistance:

1000 MOhm at 500 V DC

Shock Resistance:

50 gn for 11 ms (peak acceleration) , longitudinal position conforming to IEC 60068-2-27 || 30 gn for 11 ms (peak acceleration) , vertical position conforming to IEC 60068-2-27

Maximum Voltage Drop:

<1.15 V on-state

Maximum Switching Voltage:

1 V DC turn-off

Height:

93.2 mm

Mounting Support:

35 mm symmetrical DIN rail conforming to IEC 60715

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Inrush Current:

1350 A at 60 Hz

Vibration Resistance:

0.75 mm (f = 10-150 Hz) conforming to IEC 60068-2-6

Phase:

1 phase

Network Frequency:

47...440 Hz

China Rohs Regulation:

X

Motor Power Kw:

1.5 kW/2 hp at 120 V AC || 3.73 kW/5 hp at 240 V AC || 7.46 kW/10 hp at 480 V AC

Sustainable Offer Status:

Green Premium product

Depth:

116.5 mm

Product Configuration Type:

relay configuration

Environmental Disclosure:

ENVPEP1508007EN

Electromagnetic Compatibility:

electrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2 || electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2 || conducted RF disturbances 10 V, 0.15...80 MHz criteria A level 3 conforming

Coordination Type:

type 1 || type 2

Mercury Free:

Yes

Width:

22.5 mm

Dielectric Strength:

4 kV AC for input/output circuit || 4 kV AC for input or output to case

Maximum I²T For Fusing:

8320 A².s for 10 ms || 7593 A².s for 8.33 ms

Output Voltage:

48...600 V AC

Pollution Degree:

2

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Input Current Limits:

10-15 mA

Catalog:

View

Datasheet:

View
