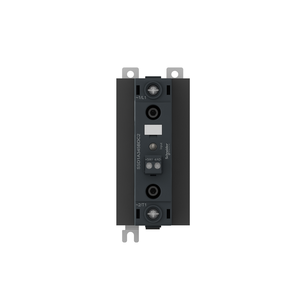

Schneider Electric SSD1A360BDC2 Solid State Relay-Din Rail, Single Phase

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric SSD1A360BDC2 Solid State Relay-Din Rail, Single Phase

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SSD1A360BDC2

UPC:

3606489808099

MPN:

Condition:

New

Tightening Torque:

0.5 N.m for control input || 5 lb.in for control input || 2...2.2 N.m for load output || 18...20 lb.in for load output

Maximum Switching Voltage:

1 V DC turn-off

Line Rated Current:

60 A

Width:

45 mm

Power Factor:

0.5 with maximum load

Rated Duty:

uninterrupted

Overvoltage Category:

III

Output Switching Mode:

zero voltage switching

Vibration Resistance:

0.35 mm (f = 10-150 Hz) conforming to IEC 60068-2-6

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Rohs Exemption Information:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Sustainable Offer Status:

Green Premium product

Inrush Current:

1350 A at 60 Hz

Local Signalling:

for control voltage LED (green)

Device Short Name:

SSD1

Product Configuration Type:

contactor configuration with pluggable screw input

Shock Resistance:

50 gn for 11 ms (peak acceleration) , longitudinal position conforming to IEC 60068-2-27 || 30 gn for 11 ms (peak acceleration) , vertical position conforming to IEC 60068-2-27

Phase:

1 phase

Response Time:

0.5 cycle (turn-on) || 0.5 cycle (turn-off)

Maximum I²T For Fusing:

8320 A².s for 10 ms || 7593 A².s for 8.33 ms

Range Of Product:

Harmony Solid State Relays

Coordination Type:

type 1 || type 2

Circularity Profile:

ENVEOLI1508007EN

Device Presentation:

complete product

Electromagnetic Compatibility:

electrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2 || electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2 || conducted RF disturbances 10 V, 0.15...80 MHz criteria A level 3 conforming

Absolute Maximum Voltage:

1200 V

Insulation Resistance:

1000 MOhm at 500 V DC

[Uimp] Rated Impulse Withstand Voltage:

6 kV for input/output circuit || 6 kV for input or output to case

Number Of Channels:

1

Maximum Voltage Drop:

<1.2 V on-state

Mercury Free:

Yes

Ip Degree Of Protection:

IP20

Load Current:

0.15-60 A

Pollution Degree:

2

Flame Retardance:

V-0 conforming to UL 94

Standards:

IEC 61373:class B: category 1 || IEC 60947-4-3 || IEC 62314 || IEC 60950-1 || CSA C22.2 No 14-13 || UL 508

Net Weight:

0.507 kg

Depth:

154.4 mm

Ambient Air Temperature For Storage:

-40-100 °C

[Uc] Control Circuit Voltage:

4...32 V DC

Solid State Output Type:

zero voltage switching

China Rohs Regulation:

X

Contact Form:

Form 5 semiconductor output DOL contactor

Dielectric Strength:

4 kV AC for input/output circuit || 4 kV AC for input or output to case

Product Or Component Type:

solid state relay up to 75 A

Connections - Terminals:

plug-inscrew terminals, clamping connection capacity:0.08...3.30 mm², AWG 28...AWG 12 for input || clamp terminal, clamping connection capacity:10...26.67 mm², AWG 8...AWG 3 for output

Minimum Switching Voltage:

4 V DC turn-on

Maximum Leakage Current:

1 mA off-state

Mounting Support:

35 mm symmetrical DIN rail conforming to IEC 60715

Ambient Air Temperature For Operation:

-40-80 °C

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Height:

111.5 mm

Input Current Limits:

10-15 mA

Network Frequency:

47...440 Hz

Motor Power Kw:

1.5 kW/2 hp at 120 V AC || 3.73 kW/5 hp at 240 V AC || 7.46 kW/10 hp at 480 V AC

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environmental Disclosure:

ENVPEP1508007EN

Dv/Dt:

500 V/µs off-state at maximum rated voltage

Output Voltage:

48...600 V AC
