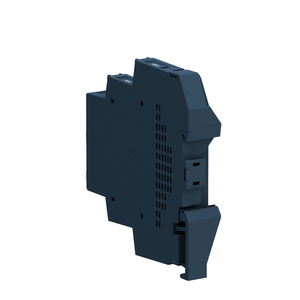

Schneider Electric SSM3A325BDR 3P Ssr 25A@48-600Vac Random,4-32Vdc Pack of 5

(No reviews yet) Write a Review

Write a Review

Schneider Electric SSM3A325BDR 3P Ssr 25A@48-600Vac Random,4-32Vdc Pack of 5

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SSM3A325BDR

UPC:

3606485441726

MPN:

Condition:

New

Local Signalling:

for input status LED (green)

Standards:

UL 508 || IEC 60950-1 || CSA C22.2 No 14

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Solid State Output Type:

random voltage switching

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Ambient Air Temperature For Operation:

-20-80 °C

Mercury Free:

Yes

Pollution Degree:

2

[Uc] Control Circuit Voltage:

4...32 V DC

Ip Degree Of Protection:

IP20

Tightening Torque:

0.6...0.7 N.m for input || 1.36...1.7 N.m for output

Insulation Resistance:

1000 MOhm

Output Voltage:

48...600 V AC

Sustainable Offer Status:

Green Premium product

Line Rated Current:

25 A

Maximum Leakage Current:

0.25 mA off-state

Response Time:

0.5 cycle (turn-off) || 0.02 ms (turn-on)

Number Of Channels:

3

Marking:

CSA || EAC || CE || UL

Switching Voltage:

4 V DC turn-on || 1 V DC turn-off

Load Current:

0.1-25 A

Device Short Name:

SSM3

Phase:

3 phase

Environmental Disclosure:

ENVPEP1508007EN

Maximum Voltage Drop:

<1.35 V on-state

Dv/Dt:

500 V/µs off-state at maximum voltage

Mounting Support:

symmetrical DIN rail

Rohs Exemption Information:

Yes

Cos Phi:

0.5-0.5 (with maximum load)

China Rohs Regulation:

X

Range Of Product:

Harmony Solid State Relays

Maximum I²T For Fusing:

410 A².s for 10 ms at 50 Hz || 374 A².s for 8.3 ms at 60 Hz

Net Weight:

0.74 kg

Maximum Horse Power Rating:

1 hp 40 °C 240 V AC || 2 hp 40 °C 380 V AC || 3 hp 40 °C 480 V AC

Output Switching Mode:

random voltage switching

Product Certifications:

UL || EAC || CSA

Capacitance Unbalance:

8 pF for input/output

Ambient Air Temperature For Storage:

-40-100 °C

Circularity Profile:

ENVEOLI1508007EN

Dielectric Strength:

4 kV AC for input/output || 4 kV AC for input or output to case

Overvoltage Category:

III

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Surge Current:

286 A 20 ms 50 Hz || 300 A 16.6 ms 60 Hz

Absolute Maximum Voltage:

1100 V

Product Or Component Type:

solid state relay up to 30 A

Connections - Terminals:

screw terminals 0.2...1.3 mm², AWG 24...AWG 16) input || screw terminals 1.3...5.3 mm², AWG 16...AWG 10) output

Input Current Limits:

22-28 mA
