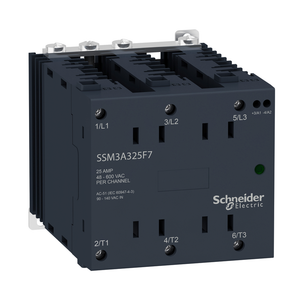

Schneider Electric SSM3A325F7 3P Ssr 25A@48-600Vac Zero,90-140Vac

Schneider Electric SSM3A325F7 3P Ssr 25A@48-600Vac Zero,90-140Vac

Schneider Electric
SKU:
SSM3A325F7
|
UPC:
3606485441696
Availability:
Contact us to confirm availability and lead times.
$130.62
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This static relay has a built-in heatsink for limited derating while limiting occupied space in panel It also has a visual indicator showing the status of its input Its rated current is 25 A, is controlled with a 90 to 140 V AC circuit, has a rated load voltage of 48 to 600 V AC output. It mounts on symetrical DIN rails and comes with a secure mounting latch
Additional Information
Cos Phi:
0.5-0.5 (with maximum load)
Standards:
IEC 60950-1 || UL 508 || CSA C22.2 No 14
Input Current Limits:
15-19 mA
Sustainable Offer Status:
Green Premium product
Net Weight:
0.74 kg
Mercury Free:
Yes
Mounting Support:
symmetrical DIN rail
Switching Voltage:
90 V turn-on || 10 V turn-off
Maximum I²T For Fusing:
410 A².s for 10 ms at 50 Hz || 374 A².s for 8.3 ms at 60 Hz
Surge Current:
286 A 20 ms 50 Hz || 300 A 16.6 ms 60 Hz
Device Short Name:
SSM3
Load Current:
0.1-25 A
Overvoltage Category:
III
Solid State Output Type:
zero voltage switching
Pollution Degree:
2
Line Rated Current:
25 A
Range Of Product:
Harmony Solid State Relays
Output Voltage:
48...600 V AC
Maximum Voltage Drop:
<1.35 V on-state
Ambient Air Temperature For Storage:
-40-100 °C
Output Switching Mode:
zero voltage switching
Connections - Terminals:
screw terminals 0.2...1.3 mm², AWG 24...AWG 16) input || screw terminals 1.3...5.3 mm², AWG 16...AWG 10) output
Number Of Channels:
3
Ip Degree Of Protection:
IP20
Insulation Resistance:
1000 MOhm
Rohs Exemption Information:
Yes
Capacitance Unbalance:
8 pF for input/output
Phase:
3 phase
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Product Or Component Type:
solid state relay up to 30 A
[Uc] Control Circuit Voltage:
90...140 V AC
Product Certifications:
UL || EAC || CSA
Local Signalling:
for input status LED (green)
Environmental Disclosure:
ENVPEP1508007EN
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Ambient Air Temperature For Operation:
-20-80 °C
Dielectric Strength:
4 kV AC for input/output || 4 kV AC for input or output to case
China Rohs Regulation:
X
Absolute Maximum Voltage:
1100 V
Dv/Dt:
500 V/µs off-state at maximum voltage
Response Time:
30 ms (turn-off) || 20 ms (turn-on)
Maximum Horse Power Rating:
1 hp 40 °C 240 V AC || 2 hp 40 °C 380 V AC || 3 hp 40 °C 480 V AC
Marking:
CSA || UL || CE || EAC
Tightening Torque:
0.6...0.7 N.m for input || 1.36...1.7 N.m for output
Circularity Profile:
ENVEOLI1508007EN
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Maximum Leakage Current:
0.25 mA off-state
