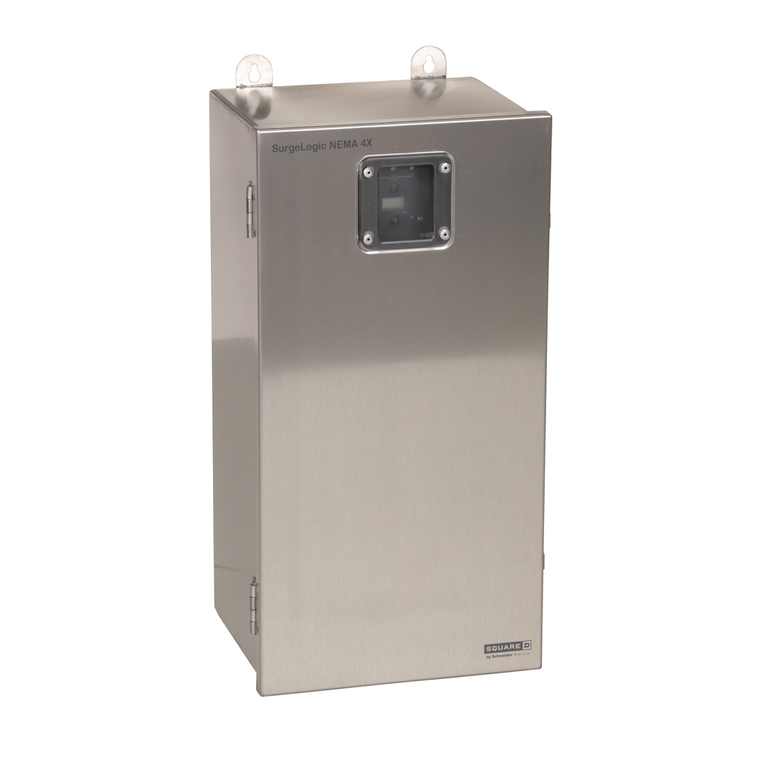

Schneider Electric SSP02EMA12S Surge protection device, Surgelogic, 120kA, 208Y/120 VAC, 3 phase, 4 wire, NEMA 4X

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric SSP02EMA12S Surge protection device, Surgelogic, 120kA, 208Y/120 VAC, 3 phase, 4 wire, NEMA 4X

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SSP02EMA12S

UPC:

MPN:

SSP02EMA12S

Condition:

New

Rohs Exemption Information:

Yes

Device Short Name:

EMA

Mercury Free:

Yes

Standards:

CSA C22.2 No 8 || UL 1449:ed. 4 || UL 1283:ed. 5

Device Mounting:

surface

Provided Equipment:

alarm enable/disable switch || surge counter || dry contacts

Short-Circuit Protection:

200 kA

Nominal Discharge Current:

20 kA

Local Signaling:

status LED green per phase normal operation || status LED red per phase fault

Enclosure Material:

Stainless Steel

Country of Origin:

United States

Phase:

3 phase

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

[Ue] Rated Operational Voltage:

208Y/120 V AC

Length:

483 mm

Depth:

238.8 mm

Ambient Air Temperature For Operation:

65-65°C

Nema Degree Of Protection:

NEMA 4X

Wiring Configuration:

4-wire

Surge Current:

120 kA

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Eu Rohs Directive:

Compliant with Exemptions

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Or Component Type:

surge protection device

Cable Length:

483 mm

Connections - Terminals:

lugs AWG 10...AWG 2 copper 4 N.m

Range Of Product:

Surgelogic

[Uc] Maximum Continuous Operating Voltage:

150 V
