Schneider Electric SSP1A125BDS 1P Ssr 25A@24-300Vac Zero,3-32Vdc,Sd
Schneider Electric
$77.99
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

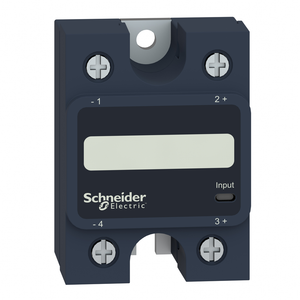

Schneider Electric SSP1A125BDS 1P Ssr 25A@24-300Vac Zero,3-32Vdc,Sd
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Harmony, Solid state relay, 25 A, panel mount, zero voltage switching, thermal pad and smart diagnostic, input 3...32 V DC, output 24…300 V AC
- Maximum Switching Voltage:
- 1 V DC turn-off
- Ip Degree Of Protection:
- IP20
- Surge Current:
- 250 A 16.6 ms
- Marking:
- EAC || UL || CSA || CE
- Pollution Degree:
- 2
- Protection Device Type:
- type 1 - 25 A miniature circuit breaker (MCB) B || type 2 - 20 A miniature circuit breaker (MCB) B
- Maximum Output Current:
- 30 mA 32 V DC
- Absolute Maximum Voltage:
- 600 V
- Response Time:
- 0.5 cycle (turn-on) || 0.5 cycle (turn-off)
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV output to case || 6 kV input to output
- Minimum Switching Voltage:
- 4 V DC turn-on
- Phase:
- 1 phase
- Overvoltage Category:
- III
- Load Current:
- 0.15-25 A
- Minimum Load:
- 150 mA
- Dv/Dt:
- 500 V/µs off-state at maximum voltage
- Mounting Support:
- panel
- Standards:
- UL 508 || IEC 62314 || CSA C22.2 No 14-13 || IEC 60950-1
- Cos Phi:
- 0.5-0.5 (with maximum load)
- Connections - Terminals:
- screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input || screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output || screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input || screw terminals 0.5...8.26 mm
- Device Short Name:
- SSP1
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Insulation Resistance:
- 1000 MOhm at 500 V DC
- Provided Equipment:
- thermal pad
- Ambient Air Temperature For Operation:
- -40-80 °C
- Ambient Air Temperature For Storage:
- -40-125 °C
- Local Signalling:
- LED, steady, green ON status control input/test button actuated || LED, steady, amber ON status load || LED, flashing, amber control input to energise load || LED, steady, red open-circuit control input || LED, flashing, red load cut-off/short-circui
- Output Switching Mode:
- zero voltage switching
- Maximum Horse Power Rating:
- 0.5 hp 120 V AC || 1 hp 240 V AC
- Product Certifications:
- EAC || CSA || UL || CE
- Environmental Disclosure:
- ENVPEP1505006EN
- Maximum Voltage Drop:
- <1.15 V on-state
- Capacitance Unbalance:
- 10 pF for input/output
- Net Weight:
- 97.1 g
- Maximum I²T For Fusing:
- 259 A².s for 8.33 ms at 60 Hz || 258 A².s for 10 ms at 50 Hz
- Maximum Leakage Current:
- 1 mA off-state
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Line Rated Current:
- 25 A
- Range Of Product:
- Harmony Solid State Relays
- Product Or Component Type:
- solid state relay up to 30 A
- Dielectric Strength:
- 4 kV AC for input/output || 4 kV AC for input or output to case
- China Rohs Regulation:
- X
- Circularity Profile:
- ENVEOLI1505006EN
- Device Presentation:
- complete product
- Sustainable Offer Status:
- Green Premium product
- Input Current Limits:
- 10-10 mA at 12 V DC
- Solid State Output Type:
- SCR output || zero voltage switching
- Electromagnetic Compatibility:
- electrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2 || electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test criteria A outp
- Safety Reliability Data:
- B10d = 1731395 || MTTFd = 1875.9 years
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Auxiliary Connection Terminal:
- screw-type connector, 0.5...1.5 mm² AWG 20...AWG 16)slotted Philips
- Tightening Torque:
- 1.5...1.7 N.m for input || 2...2.2 N.m for output || 17.7...19.47 lb.in for output || 13.27...15.04 lb.in for input || 0.5...0.6 N.m for auxillary terminal || 4.4...5.3 lb.in for auxillary terminal
- Rohs Exemption Information:
- Yes
- Thermal Resitance:
- 0.8 °C/W junction to case
