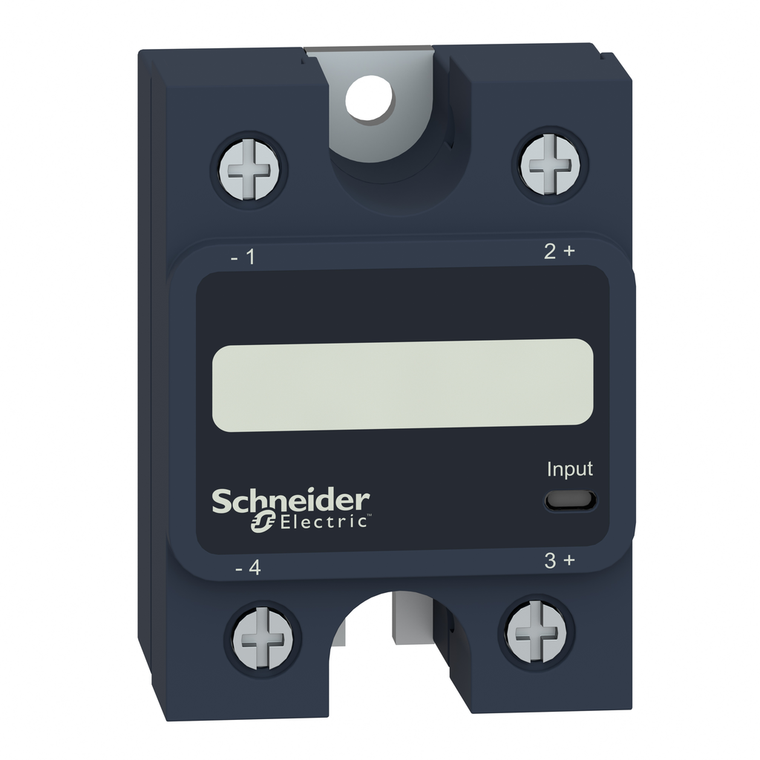

Schneider Electric SSP1A125M7 1P Ssr 25A@24-300Vac Zero,90-280Vac
SSP panel mount relay is part of the Harmony Solid sate relays range. This single-phase panel mount static relay accepts wiring with either bare cable, crimped cable ends, fork lugs or ring lugs Its rated current is 25A, is controlled withA 90V to 280V AC circuit, has a rated load voltage of 24V to 300V AC output. It also has a test button for easy debugging, testing and commissioning. 0 It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events 0
- Solid State Output Type:
- SCR output || zero voltage switching
- Dv/Dt:
- 500 V/µs off-state at maximum voltage
- Insulation Resistance:
- 1000 MOhm at 500 V DC
- Response Time:
- 30 ms (turn-off) || 25 ms (turn-on)
- Range Of Product:
- Harmony Solid State Relays
- Ambient Air Temperature For Storage:
- -40-125 °C
- Mounting Support:
- panel
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Environmental Disclosure:
- ENVPEP1505006EN
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Sustainable Offer Status:
- Green Premium product
- Circularity Profile:
- ENVEOLI1505006EN
- Product Certifications:
- CE || CSA || UL || EAC
- Pollution Degree:
- 2
- Tightening Torque:
- 1.5...1.7 N.m for input || 2...2.2 N.m for output
- Overvoltage Category:
- III
- Output Switching Mode:
- zero voltage switching
- Mercury Free:
- Yes
- Thermal Resitance:
- 0.8 °C/W junction to case
- Phase:
- 1 phase
- Dielectric Strength:
- 4 kV AC for input/output || 4 kV AC for input or output to case
- Protection Device Type:
- type 1 - 25 A miniature circuit breaker (MCB) B || type 2 - 20 A miniature circuit breaker (MCB) B
- Cos Phi:
- 0.5-0.5 (with maximum load)
- Maximum Switching Voltage:
- 10 V AC turn-off
- Connections - Terminals:
- screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input || screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output || screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input || screw terminals 0.5...8.26
- China Rohs Regulation:
- X
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV output to case || 6 kV input to output
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Safety Reliability Data:
- B10d = 1731395 || MTTFd = 1875.9 years
- Capacitance Unbalance:
- 8 pF for input/output
- Device Short Name:
- SSP1
- Maximum I²T For Fusing:
- 259 A².s for 8.33 ms at 60 Hz || 285 A².s for 10 ms at 50 Hz
- Input Current Limits:
- 5-10 mA
- Maximum Voltage Drop:
- <1.15 V on-state
- Device Presentation:
- complete product
- Absolute Maximum Voltage:
- 600 V
- Product Or Component Type:
- solid state relay up to 30 A
- Net Weight:
- 89.2 g
- Standards:
- IEC 62314 || UL 508 || IEC 60950-1 || CSA C22.2 No 14-13
- Local Signalling:
- LED, green input
- Line Rated Current:
- 25 A
- Rohs Exemption Information:
- Yes
- Minimum Switching Voltage:
- 90 V AC turn-on
- Surge Current:
- 250 A 16.6 ms
- Load Current:
- 0.15-25 A
- Marking:
- CE || EAC || CSA || UL
- Ip Degree Of Protection:
- IP20
- Maximum Leakage Current:
- 1 mA off-state
- Ambient Air Temperature For Operation:
- -40-80 °C
- Maximum Horse Power Rating:
- 0.5 hp 120 V AC || 1 hp 240 V AC
