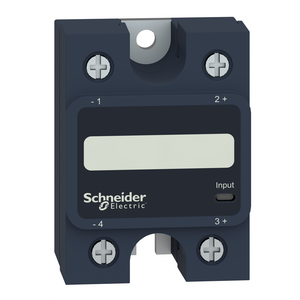

Schneider Electric SSP1A150M7T 1P Ssr 50A@24-300Vac Zero,90-280Vac,Tp

(No reviews yet) Write a Review

Write a Review

Schneider Electric SSP1A150M7T 1P Ssr 50A@24-300Vac Zero,90-280Vac,Tp

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SSP1A150M7T

UPC:

3606485442136

MPN:

Condition:

New

Line Rated Current:

50 A

Insulation Resistance:

1000 MOhm at 500 V DC

Marking:

CE || UL || CSA || EAC

Surge Current:

625 A 16.6 ms

Provided Equipment:

thermal pad

Product Certifications:

UL || CSA || CE || EAC

Sustainable Offer Status:

Green Premium product

Device Presentation:

complete product

Circularity Profile:

ENVEOLI1505006EN

Absolute Maximum Voltage:

600 V

Ip Degree Of Protection:

IP20

China Rohs Regulation:

X

Thermal Resitance:

0.45 °C/W junction to case

Pollution Degree:

2

Connections - Terminals:

screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input || screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output || screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input || screw terminals 0.5...8.26

Solid State Output Type:

zero voltage switching || SCR output

[Uimp] Rated Impulse Withstand Voltage:

6 kV output to case || 6 kV input to output

Ambient Air Temperature For Storage:

-40-125 °C

Net Weight:

89.2 g

Maximum Voltage Drop:

<1.15 V on-state

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Minimum Switching Voltage:

90 V AC turn-on

Mercury Free:

Yes

Rohs Exemption Information:

Yes

Product Or Component Type:

solid state relay up to 50 A

Maximum Horse Power Rating:

0.75 hp 120 V AC || 2 hp 240 V AC

Input Current Limits:

5-10 mA

Output Switching Mode:

zero voltage switching

Standards:

UL 508 || CSA C22.2 No 14-13 || IEC 60950-1 || IEC 62314

Maximum Leakage Current:

1 mA off-state

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Maximum I²T For Fusing:

1621 A².s for 8.33 ms at 60 Hz || 1770 A².s for 10 ms at 50 Hz

Protection Device Type:

type 1 - 40 A miniature circuit breaker (MCB) B || type 2 - 32 A miniature circuit breaker (MCB) B

Safety Reliability Data:

MTTFd = 1875.9 years || B10d = 1731395

Local Signalling:

LED, green input

Phase:

1 phase

Load Current:

0.15-50 A

Range Of Product:

Harmony Solid State Relays

Dielectric Strength:

4 kV AC for input/output || 4 kV AC for input or output to case

Dv/Dt:

500 V/µs off-state at maximum voltage

Response Time:

30 ms (turn-off) || 25 ms (turn-on)

Device Short Name:

SSP1

Thermal Impedance:

0.48 °C-in²/W at 25 psi

Environmental Disclosure:

ENVPEP1505006EN

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Capacitance Unbalance:

8 pF for input/output

Tightening Torque:

1.5...1.7 N.m for input || 2...2.2 N.m for output

Maximum Switching Voltage:

10 V AC turn-off

Cos Phi:

0.5-0.5 (with maximum load)

Ambient Air Temperature For Operation:

-40-80 °C

Overvoltage Category:

III
