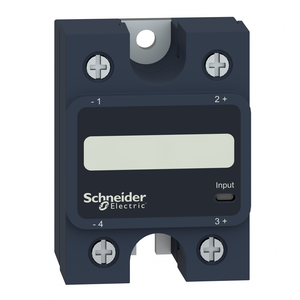

Schneider Electric SSP1A450BDT 1P Ssr 50A@48-660Vac Zero,4-32Vdc,Tp

Schneider Electric SSP1A450BDT 1P Ssr 50A@48-660Vac Zero,4-32Vdc,Tp

Schneider Electric
SKU:
SSP1A450BDT
|
UPC:
3606485442068
$40.85
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Harmony SSP solid state panel mount single-phase relay is rated 50A, is controlled with a 4V to 32V DC input, has a rated load voltage of 48V to 660V AC with zero voltage switching, ideal for resistive loads. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Additional Information
Load Current:
0.15-50 A
Surge Current:
625 A 16.6 ms
Circularity Profile:
ENVEOLI1505006EN
Maximum Horse Power Rating:
0.75 hp 120 V AC || 2 hp 240 V AC || 5 hp 480 V AC
Local Signalling:
LED, green input
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Response Time:
0.5 cycle (turn-on) || 0.5 cycle (turn-off)
Solid State Output Type:
SCR output || zero voltage switching
Input Current Limits:
7-12 mA
Maximum Switching Voltage:
1 V DC turn-off
Thermal Resitance:
0.45 °C/W junction to case
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Dv/Dt:
500 V/µs off-state at maximum voltage
Absolute Maximum Voltage:
1200 V
Protection Device Type:
type 1 - 40 A miniature circuit breaker (MCB) B || type 2 - 32 A miniature circuit breaker (MCB) B
Ambient Air Temperature For Storage:
-40-125 °C
Marking:
EAC || UL || CE || CSA
Sustainable Offer Status:
Green Premium product
Maximum Voltage Drop:
<1.15 V on-state
Minimum Switching Voltage:
4 V DC turn-on
Overvoltage Category:
III
Mercury Free:
Yes
Net Weight:
89.2 g
Ambient Air Temperature For Operation:
-40-80 °C
Maximum I²T For Fusing:
1770 A².s for 10 ms at 50 Hz || 1629 A².s for 8.33 ms at 60 Hz
Phase:
1 phase
China Rohs Regulation:
X
Maximum Leakage Current:
1 mA off-state
Output Switching Mode:
zero voltage switching
Capacitance Unbalance:
8 pF for input/output
Insulation Resistance:
1000 MOhm at 500 V DC
Safety Reliability Data:
B10d = 1731395 || MTTFd = 1875.9 years
Pollution Degree:
2
Thermal Impedance:
0.48 °C-in²/W at 25 psi
Environmental Disclosure:
ENVPEP1505006EN
Connections - Terminals:
screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input || screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output || screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input || screw terminals 0.5...8.26
Provided Equipment:
thermal pad
[Uimp] Rated Impulse Withstand Voltage:
6 kV output to case || 6 kV input to output
Device Short Name:
SSP1
Product Certifications:
UL || CE || EAC || CSA
Device Presentation:
complete product
Tightening Torque:
1.5...1.7 N.m for input || 2...2.2 N.m for output
Line Rated Current:
50 A
Ip Degree Of Protection:
IP20
Standards:
CSA C22.2 No 14-13 || UL 508 || IEC 60950-1 || IEC 62314
Dielectric Strength:
4 kV AC for input/output || 4 kV AC for input or output to case
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Or Component Type:
solid state relay up to 50 A
Cos Phi:
0.5-0.5 (with maximum load)
Mounting Support:
panel
Range Of Product:
Harmony Solid State Relays
Rohs Exemption Information:
Yes
