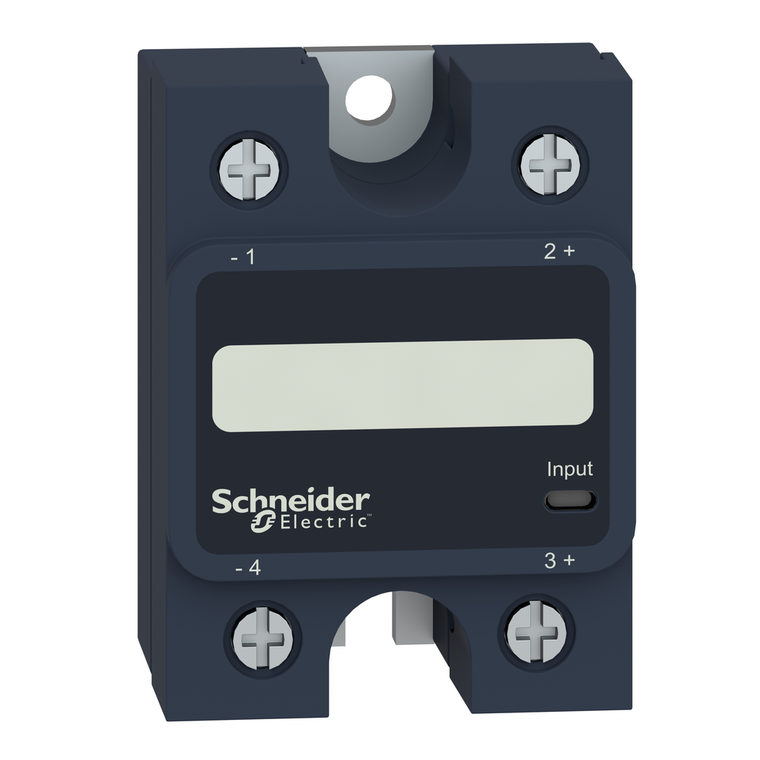

Schneider Electric SSP1A475BDT 1P Ssr 75A@48-660Vac Zero,4-32Vdc,Tp

(No reviews yet) Write a Review

Write a Review

Schneider Electric SSP1A475BDT 1P Ssr 75A@48-660Vac Zero,4-32Vdc,Tp

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SSP1A475BDT

UPC:

3606485442082

MPN:

Condition:

New

Ip Degree Of Protection:

IP20

Overvoltage Category:

III

Ambient Air Temperature For Operation:

-40-80 °C

Device Short Name:

SSP1

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Maximum Voltage Drop:

<1.15 V on-state

Range Of Product:

Harmony Solid State Relays

Line Rated Current:

75 A

Mercury Free:

Yes

Product Or Component Type:

solid state relay up to 75 A

Capacitance Unbalance:

8 pF for input/output

Dielectric Strength:

4 kV AC for input/output || 4 kV AC for input or output to case

Protection Device Type:

type 1 - 50 A miniature circuit breaker (MCB) B || type 2 - 40 A miniature circuit breaker (MCB) B

Environmental Disclosure:

ENVPEP1505006EN

Maximum Switching Voltage:

1 V DC turn-off

Connections - Terminals:

screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input || screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output || screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input || screw terminals 0.5...8.26 mm

Phase:

1 phase

Response Time:

0.5 cycle (turn-on) || 0.5 cycle (turn-off)

Maximum Horse Power Rating:

1.5 hp 120 V AC || 3 hp 240 V AC || 7.5 hp 480 V AC

Minimum Switching Voltage:

4 V DC turn-on

China Rohs Regulation:

X

Tightening Torque:

1.5...1.7 N.m for input || 2...2.2 N.m for output

Dv/Dt:

500 V/µs off-state at maximum voltage

Surge Current:

1000 A 16.6 ms

Provided Equipment:

thermal pad

Local Signalling:

LED, green input

[Uimp] Rated Impulse Withstand Voltage:

6 kV output to case || 6 kV input to output

Thermal Resitance:

0.3 °C/W junction to case

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Standards:

IEC 60950-1 || UL 508 || CSA C22.2 No 14-13 || IEC 62314

Maximum Leakage Current:

1 mA off-state

Ambient Air Temperature For Storage:

-40-125 °C

Safety Reliability Data:

B10d = 1731395 || MTTFd = 1875.9 years

Rohs Exemption Information:

Yes

Thermal Impedance:

0.48 °C-in²/W at 25 psi

Sustainable Offer Status:

Green Premium product

Output Switching Mode:

zero voltage switching

Product Certifications:

CE || EAC || UL || CSA

Pollution Degree:

2

Device Presentation:

complete product

Marking:

CSA || CE || UL || EAC

Load Current:

0.15-75 A

Input Current Limits:

7-12 mA

Maximum I²T For Fusing:

4150 A².s for 8.33 ms at 60 Hz || 4555 A².s for 10 ms at 50 Hz

Insulation Resistance:

1000 MOhm at 500 V DC

Net Weight:

89.2 g

Cos Phi:

0.5-0.5 (with maximum load)

Circularity Profile:

ENVEOLI1505006EN

Solid State Output Type:

zero voltage switching || SCR output

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Mounting Support:

panel

Absolute Maximum Voltage:

1200 V
