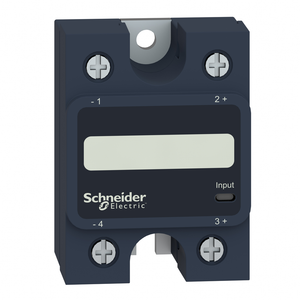

Schneider Electric SSP1D425BD 1P Ssr 25A@1-150Vdc Dc,3.5-32Vdc Pack of 30

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric SSP1D425BD 1P Ssr 25A@1-150Vdc Dc,3.5-32Vdc Pack of 30

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SSP1D425BD

UPC:

3606485441825

MPN:

Condition:

New

Overvoltage Category:

III

Connections - Terminals:

screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input || screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output || screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input || screw terminals 0.5...8.26

Minimum Switching Voltage:

3.5 V DC turn-on

Rohs Exemption Information:

Yes

Toxic Heavy Metal Free:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Standards:

IEC 60950-1 || UL 508 || IEC 62314 || CSA C22.2 No 14-13

Net Weight:

89.2 g

Product Or Component Type:

solid state relay up to 30 A

Tightening Torque:

1.5...1.7 N.m for input || 2...2.2 N.m for output

Circularity Profile:

ENVEOLI1505006EN

Capacitance Unbalance:

50 pF for input/output

Thermal Resitance:

0.22 °C/W junction to case

Insulation Resistance:

1000 MOhm at 500 V DC

Mounting Support:

panel

Dielectric Strength:

2.5 kV AC for input/output || 2.5 kV AC for input or output to case

Sustainable Offer Status:

Green Premium product

Protection Device Type:

type 1 - 25 A miniature circuit breaker (MCB) B || type 2 - 13 A miniature circuit breaker (MCB) B

Line Rated Current:

25 A

Ambient Air Temperature For Storage:

-40-125 °C

Mercury Free:

Yes

Device Presentation:

complete product

Load Current:

0.001-25 A

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Marking:

EAC || CE || UL || CSA

Environmental Disclosure:

ENVPEP1505006EN

Ip Degree Of Protection:

IP20

Range Of Product:

Harmony Solid State Relays

Maximum Voltage Drop:

<2.1 V on-state

Surge Current:

106 A 10 ms

Phase:

1 phase

Device Short Name:

SSP1

Product Certifications:

EAC || UL || CE || CSA

Solid State Output Type:

DC switching || Mosfet output

Input Current Limits:

10-15 mA

[Uimp] Rated Impulse Withstand Voltage:

2.5 kV output to case

Local Signalling:

LED, green input

Response Time:

0.1 ms (turn-on) || 0.1 ms (turn-off)

Maximum Leakage Current:

0.3 mA off-state

Safety Reliability Data:

B10d = 1731395 || MTTFd = 1875.9 years

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Maximum Switching Voltage:

1 V DC turn-off

Reach Free Of Svhc:

Yes

Ambient Air Temperature For Operation:

-40-80 °C

Output Switching Mode:

DC switching

Pollution Degree:

2

China Rohs Regulation:

X
