Schneider Electric STBDAI5260K 115Vac In 2Pt Isolated Kit Conns,Base
Schneider Electric
$147.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

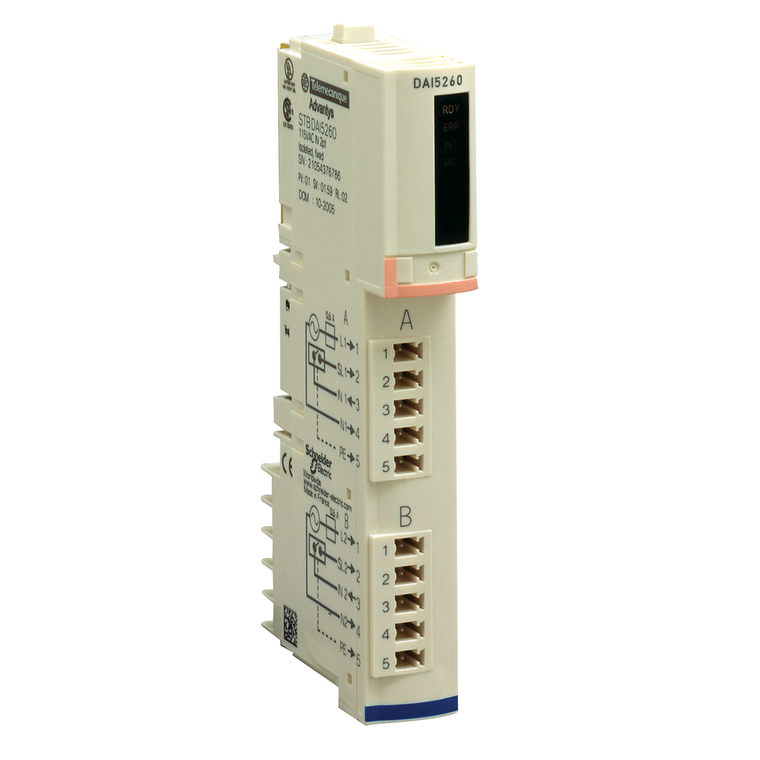

Schneider Electric STBDAI5260K 115Vac In 2Pt Isolated Kit Conns,Base
standard digital input kit STB - 115 V AC - 2 I
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Marking:
- CE
- Mercury Free:
- Yes
- Standards:
- EN/IEC 61131-2 type 1
- Height:
- 18.4 mm
- Network Frequency:
- 50/60 Hz
- Product Or Component Type:
- standard digital input kit
- China Rohs Regulation:
- X
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Relative Humidity:
- 95-95 % 60-60 °C without condensation
- [Us] Rated Supply Voltage:
- 115/230 V AC
- Hot Swapping Fallback:
- yes for standard NIMs
- Permissible Voltage:
- 132 V
- Current State 1 Guaranteed:
- >= 4 mA
- Absolute Maximum Voltage:
- 200 V 20 ms
- Input Voltage Limits:
- 0...20 V at state 0 || 74...132 V at state 1
- Network Frequency Limits:
- 47-63 Hz
- Operating Altitude:
- <= 6561.68 ft (2000 m)
- Ambient Air Temperature For Storage:
- -40...185 °F without derating
- Ambient Air Temperature For Operation:
- 32...140 °F without derating
- Cold Swapping:
- yes
- Depth:
- 65.1 mm
- Overvoltage Category:
- II
- Warranty:
- 18 months
- Pollution Degree:
- 2 IEC 60664-1
- Product Compatibility:
- I/O base STBXBA2000 || power distribution module STBPDT2100/2105
- Ambient Air Temperature For Storage:
- -40-85 °C without derating
- Current State 0 Guaranteed:
- <= 2 mA
- Discrete Input Voltage:
- 115 V
- Width:
- 125 mm
- Status Led:
- 1 LED (Green) module status (RDY) || 1 LED per channel (Green) channel status (IN1 to IN2) || 1 LED (Red) module error (ERR)
- Insulation Between Channels:
- 1780 V for 1 minute
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Vibration Resistance:
- 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz
- Insulation Between Channels And Logic Bus:
- 1780 V for 1 minute
- Supply:
- power distribution module
- Shock Resistance:
- 30 gn 11 ms IEC 88 reference 2-27
- Kit Composition:
- STBXTS1110, 5-terminal screw type connector || STBXTS2110, 5-terminal spring clamp connector || STBXBA2000 base || STBDAI5260 module
- Current Consumption:
- 45 mA 5 V DC logic bus
- Range Of Product:
- Modicon STB distributed I/O solution
- Rohs Exemption Information:
- Yes
- Response Time:
- 1.5 ms off-to-on || 1.5 ms on-to-off
- Net Weight:
- 0.065 kg
- Discrete Input Number:
- 2
- Product Certifications:
- FM Class 1 Division 2 || UL || CSA
- Protection Type:
- input protection metal oxide varistor limited || power protection external fuse 0.5 A
- Discrete Input Logic:
- positive or negative
- Ip Degree Of Protection:
- IP20 conforming to IEC 61131-2 class 1
- Discrete Input Voltage Type:
- AC
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Ambient Air Temperature For Operation:
- 0-60 °C without derating)
