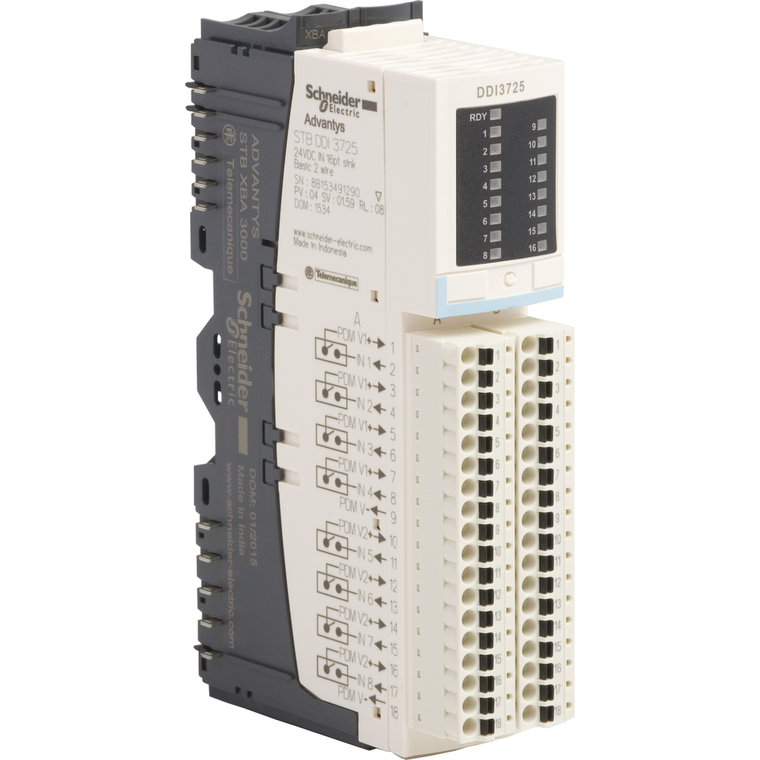

Schneider Electric STBDDI3725KC 24Vdc In 16Pt Basic Kit Clamp,Base

Schneider Electric STBDDI3725KC 24Vdc In 16Pt Basic Kit Clamp,Base

Schneider Electric
SKU:
STBDDI3725KC
|
UPC:
3.59586E+12
Availability:
Contact us to confirm availability and lead times.
$288.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic discrete input kit has 16 discrete inputs with positive logic. It is a discrete input kit with a rated supply voltage of 24V DC and a current consumption of 100mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 28.1mm (Length) x 65.1mm (width) x 125mm (depth) and weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. It meets EN/IEC 61131-2 type 3 standards. This kit is suitable for use with I/O base STBXBA3000 and power distribution module STBPDT3100/3105. The kit includes STBXTS2180, 18-terminal spring clamp connector, STBDDI3725 module and STBXBA3000 base. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Additional Information
Ambient Air Temperature For Operation:
32...140 °F without derating
Discrete Input Voltage:
24 V
Ambient Air Temperature For Storage:
-40-85 °C without derating
Warranty:
18 months
Input Voltage Limits:
11...30 V at state 1 || -3...5 V at state 0
Cold Swapping:
yes
Operating Altitude:
<= 6561.68 ft (2000 m)
Product Or Component Type:
basic digital input kit
Product Compatibility:
I/O base STBXBA3000 || power distribution module STBPDT3100/3105
Width:
28.1 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Discrete Input Logic:
positive
Hot Swapping Fallback:
yes for basic NIMs
Pollution Degree:
2 IEC 60664-1
Kit Composition:
STBXTS2180, 18-terminal spring clamp connector || STBDDI3725 module || STBXBA3000 base
Response Time:
2 ms off-to-on || 2 ms on-to-off
Ip Degree Of Protection:
IP20 conforming to EN 61131-2 class 1
Supply:
power distribution module
Shock Resistance:
30 gn 11 ms IEC 88 reference 2-27
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation:
X
Permissible Voltage:
30 V
Vibration Resistance:
3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz
Discrete Input Voltage Type:
DC
Height:
125 mm
Overvoltage Category:
II
Standards:
EN/IEC 61131-2 type 3
Current Consumption:
100 mA 5 V DC logic bus
Range Of Product:
Modicon STB distributed I/O solution
Product Certifications:
FM Class 1 Division 2 || UL || CSA
Ambient Air Temperature For Operation:
-25-70 °C without derating)
Net Weight:
0.086 kg
Depth:
65.1 mm
Discrete Input Current:
4.5 mA
Mercury Free:
Yes
Rohs Exemption Information:
Yes
Marking:
CE
Insulation Between Channels And Logic Bus:
1500 V for 1 minute
Status Led:
1 LED (Green) module status (RDY) || 1 LED per channel (Green) channel status (IN1 to IN16)
[Us] Rated Supply Voltage:
24 V DC
Ambient Air Temperature For Storage:
-40...185 °F without derating
Discrete Input Number:
16
Current State 0 Guaranteed:
<= 1.5 mA
Protection Type:
power protection integrated fuse on PDM time lag 5 A || input protection resistor-limited || reverse polarity protection
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Current State 1 Guaranteed:
>= 2.5 mA
Relative Humidity:
95-95 % 60-60 °C without condensation
