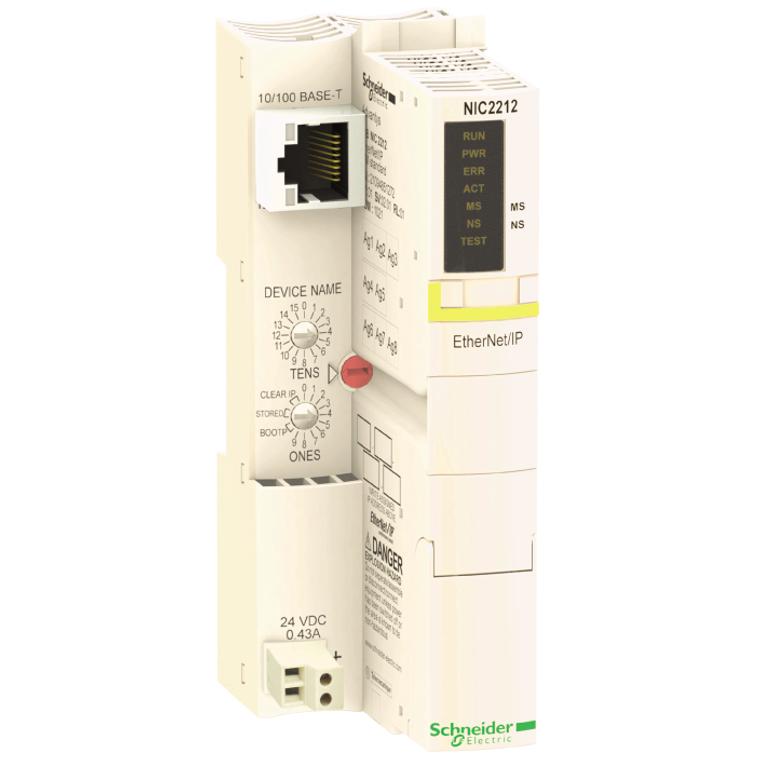

Schneider Electric STBNIC2212 Ethernet/Ip Nim Standard

Schneider Electric STBNIC2212 Ethernet/Ip Nim Standard

Schneider Electric
SKU:
STBNIC2212
|
UPC:
3595863987812
$674.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 1 primary, maximum 6 extensions segments. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and an output current of 1.2A. Communication services are embedded web, BootP/DHCP protocol and SNMP agent. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 40mm (height) and weighs 0.145kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, CSA, ATEX category 3G, ODVA, C-Tick, UL, it meets IEC 61131-2 2003 and FM Class 1 division 2, groups A, B, C and D T4A standards. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Additional Information
Nominal Output Current:
0.575 A 60-70 °C || 1.2 A
Operating Altitude:
<= 6561.68 ft (2000 m)
Number Of Segments:
1 primary, maximum 6 extensions
Number Of Addressable I/O Module:
0-32 per island
Vibration Resistance:
3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz
Overvoltage Category:
II
Environmental Disclosure:
ENVPEP080803EN
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Power Supply Type:
SELV
Standards:
FM Class 1 division 2, groups A, B, C and D T4A with 70 °C || IEC 61131-2 : 2003
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Maximum Supply Current:
700 A
Input Current:
430 mA supply circuit
Rohs Exemption Information:
Yes
Depth:
70 mm
Status Led:
1 LED ACT || 1 LED island state (RUN) || 1 LED module error (ERR) || 1 LED MS || 1 LED NS || 1 LED power supply (PWR) || 1 LED test mode (TEST)
Number Of Devices Per Segment:
0-256
Ambient Air Temperature For Storage:
-40-85 °C
Product Or Component Type:
standard Network Interface Module
Range Of Product:
Modicon STB distributed I/O solution
Mercury Free:
Yes
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Integrated Connection Type:
Ethernet/IP IEEE 802.3 female RJ45 double shielded twisted pair via Ethernet network) || Ethernet/IP IEEE 802.3 HE-13 RS232 port) || Ethernet/IP IEEE 802.3 8-way female RS232 port)
Net Weight:
0.145 kg
Ip Degree Of Protection:
IP20 conforming to IEC 61131-2 class 1
Exchange Mode:
half or full duplex
Pollution Degree:
2 IEC 60664-1
Transmission Rate:
10/100 Mbit/s
Width:
128.3 mm
Warranty:
18 months
[Us] Rated Supply Voltage:
24 V DC
Output Voltage:
5.25 V DC +/- 0.21 %)logic bus
Height:
40 mm
Ambient Air Temperature For Operation:
0-60 °C without derating) || -25-70 °C with derating factor)
China Rohs Regulation:
X
Supply Voltage Limits:
19.2-30 V
Communication Service:
embedded web (configuration,diagnostics and access to variable) || BootP/DHCP protocol || SNMP agent
Port Ethernet:
10BASE-T/100BASE-T
Marking:
CE
Shock Resistance:
30 gn 11 ms IEC 88 reference 2-27
Relative Humidity:
95-95 % 60-60 °C without condensation
Product Certifications:
UL || ODVA || C-tick || CSA
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Catalog:
View
Datasheet:
View
