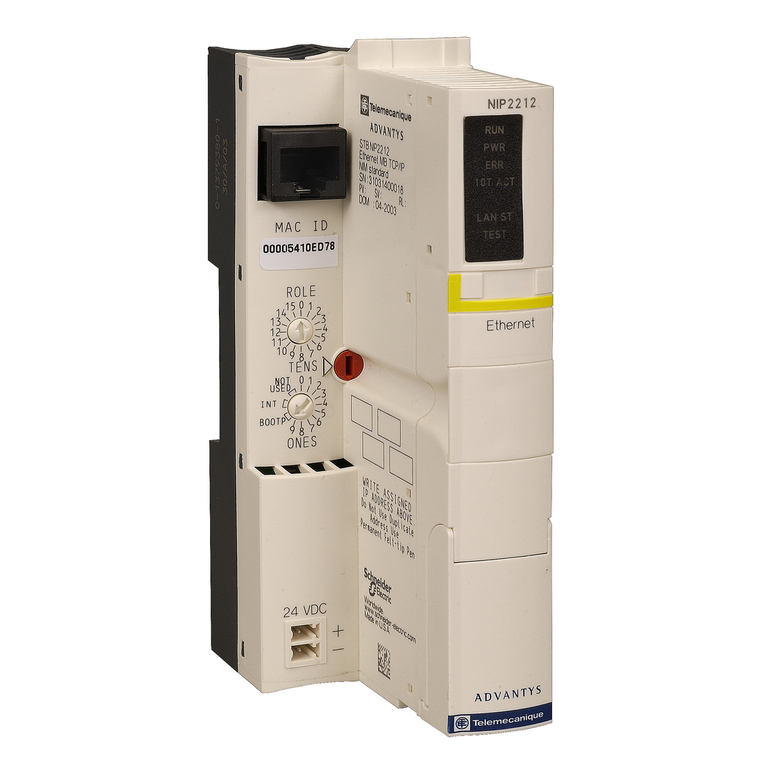

Schneider Electric STBNIP2212 Ethernet Mb Tcp/Ip Nim Std

Schneider Electric STBNIP2212 Ethernet Mb Tcp/Ip Nim Std

Schneider Electric
SKU:
STBNIP2212
|
UPC:
3595862055116
Availability:
Contact us to confirm availability and lead times.
$602.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 1 primary, maximum 6 extensions segments. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and an output current of 1.2A. Communication services are embedded web, BootP/DHCP protocol etc. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 40.5mm (height) and weighs 0.13kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, CSA, ATEX category 3G, FM Class 1 Division 2, C-Tick and UL. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Additional Information
Environmental Disclosure:
ENVPEP080803EN
Output Voltage:
5.25 V DC +/- 0.21 %)logic bus
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Pollution Degree:
2 IEC 60664-1
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Input Current:
430 mA supply circuit
Product Or Component Type:
standard Network Interface Module
China Rohs Regulation:
X
Number Of Addressable I/O Module:
0-32 per island
Depth:
70 mm
Vibration Resistance:
3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz
Relative Humidity:
95-95 % 60-60 °C without condensation
Warranty:
18 months
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Electromagnetic Compatibility:
immunity to electromagnetic interference IEC 61131-2
Structure Type:
industrial LAN
Number Of Devices Per Segment:
0-256
Ambient Air Temperature For Operation:
0-60 °C without derating) || -25-70 °C with derating factor)
Transmission Rate:
10 Mbit/s 3000-3000 m with fiber optic connection || 10 Mbit/s 0-100 m according to 802.3 standard || 10 Mbit/s 0-1000 m with ConneXium cabling system
Net Weight:
0.13 kg
Marking:
CE
Operating Altitude:
<= 6561.68 ft (2000 m)
Rohs Exemption Information:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Width:
40.5 mm
Ambient Air Temperature For Storage:
-40-85 °C
Supply Voltage Limits:
19.2-30 V
Number Of Segments:
1 primary, maximum 6 extensions
Concept:
Transparent Ready
Power Supply Type:
SELV
Shock Resistance:
30 gn 11 ms IEC 88 reference 2-27
Status Led:
1 LED (Green) status || 1 LED (Green) 10T || 1 LED (Green) island state (RUN) || 1 LED (Green) power supply (PWR) || 1 LED (Red) module error (ERR) || 1 LED (Yellow) test mode
[Us] Rated Supply Voltage:
24 V DC
Range Of Product:
Modicon STB distributed I/O solution
Nominal Output Current:
0.575 A 60-70 °C || 1.2 A
Maximum Supply Current:
700 A
Communication Service:
SNMP agent || Modbus TCP/IP messaging || embedded web (configuration,diagnostics and access to variable) || BootP/DHCP protocol
Height:
128.3 mm
Port Ethernet:
10BASE-T
Product Certifications:
CSA || UL || FM Class 1 Division 2 || ATEX Cat 3G || C-tick
Ip Degree Of Protection:
IP20 conforming to IEC 61131-2 class 1
Overvoltage Category:
II
Mercury Free:
Yes
