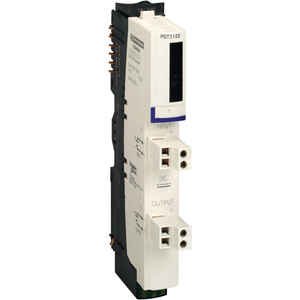

Schneider Electric STBPDT2100K 115/230Vac Pdm Standard Kit Conns,Base
Schneider Electric
$126.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric STBPDT2100K 115/230Vac Pdm Standard Kit Conns,Base
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
standard power distribution kit STB - 115..230 V AC
- Hot Swapping Fallback:
- hot swapping illegal
- Permissible Current:
- 30 A for 2 minutes grounding terminal
- Relative Humidity:
- 95-95 % 60-60 °C without condensation
- China Rohs Regulation:
- X
- Pollution Degree:
- 2 IEC 60664-1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Supply Frequency:
- 50...60 Hz
- Protection Type:
- built-in overcurrent protection, 10 A time-lag output circuit || built-in overcurrent protection, 5 A time-lag input circuit
- Warranty:
- 18 months
- Voltage Range:
- 85...265 V AC sensor/actuator bus
- Shock Resistance:
- 30 gn 11 ms IEC 88 reference 2-27
- Range Of Product:
- Modicon STB distributed I/O solution
- Mercury Free:
- Yes
- Overvoltage Category:
- II
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Product Or Component Type:
- standard power distribution kit
- Ambient Air Temperature For Storage:
- -40-85 °C
- Power Supply Output Current:
- 0-10 A 30 °C output circuit) || 0-2.5 A 60 °C input circuit) || 0-5 A 30 °C input circuit) || 0-5 A 60 °C output circuit)
- Ip Degree Of Protection:
- IP20 conforming to EN 61131-2 class 1
- Product Compatibility:
- mounting base STBXBA2200
- Marking:
- CE
- Operating Altitude:
- <= 6561.68 ft (2000 m)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Voltage Detection Threshold:
- < 50 V +/-5 AC IN/OUT LED non lit || > 70 V +/-5 AC IN/OUT LED lit
- Depth:
- 65.1 mm
- Net Weight:
- 0.129 kg
- Vibration Resistance:
- +/-0.35 mm 10-58 Hz || 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail
- Kit Composition:
- STBPDT2100 module || STBXBA2200 base || STBXTS2130, spring type connectors || STBXTS1130, screw type connectors
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- [Us] Rated Supply Voltage:
- 115...230 V
- Product Certifications:
- CSA || FM Class 1 Division 2 || UL
- Supply Circuit Type:
- AC
- Rohs Exemption Information:
- Yes
- Height:
- 18.4 mm
- Status Led:
- 1 LED (Green) actuator bus power supply (OUT) || 1 LED (Green) sensor bus power supply (IN)
- Width:
- 125 mm
- Ambient Air Temperature For Operation:
- 0-60 °C without)
