Schneider Electric TM171ALON M171 Perf. Plug-In Lonworks
Schneider Electric
$324.06
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric TM171ALON M171 Perf. Plug-In Lonworks
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

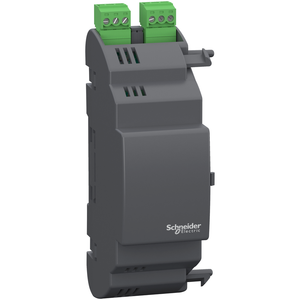

M171 Perf. Plug-in LONWorks
- Ambient Air Temperature For Operation:
- -10-55 °C
- Communication Port Protocol:
- LonWorks
- Product Compatibility:
- logic controller M171 performance || logic controller M172 performance
- Ip Degree Of Protection:
- IP20
- Marking:
- CE
- Ambient Air Temperature For Storage:
- -20-85 °C
- Integrated Connection Type:
- LON wire crimp - twisted pair
- Product Certifications:
- EAC || CSA || CE || cURus
- Local Signalling:
- for service 1 LED (red) || for status 1 LED (green)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Product Or Component Type:
- communication module
- Physical Interface:
- 90° insertion - 2.5-2.5 mm² cable
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation:
- X
- Adjustment:
- pitch 3.81 mm
- Relative Humidity:
- 10-90 % without condensation
- Upgradeability:
- Upgradeable through digital modules and upgraded components
- Rohs Exemption Information:
- Yes
- Net Weight:
- 0.077 kg
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Range Of Product:
- Modicon M171/M172
- Transmission Rate:
- 78 kbits/s
- Mercury Free:
- Yes
- Supply:
- via base board M171P/M172P
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Electrical Connection:
- removable screw terminal block
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
