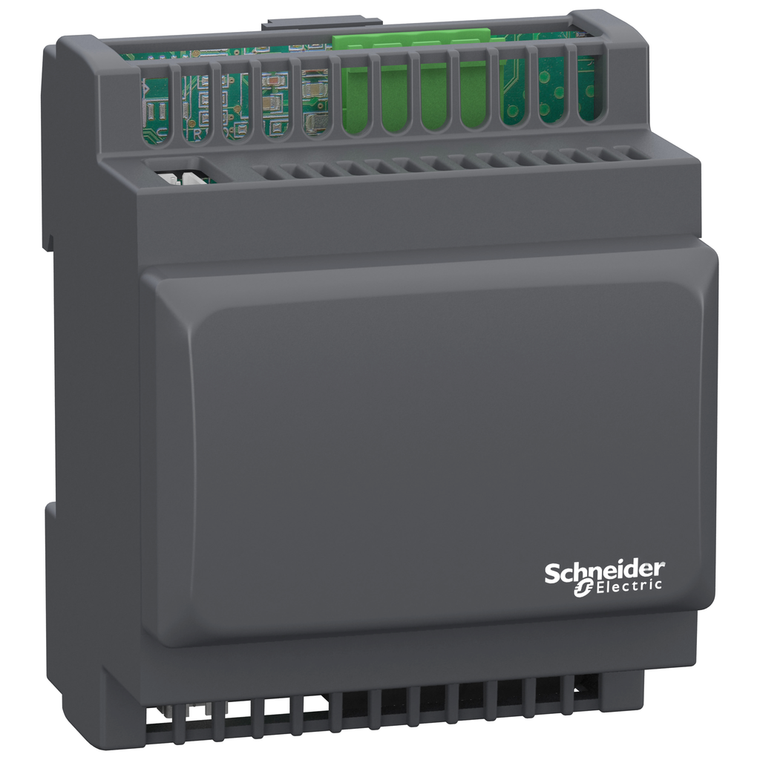

Schneider Electric TM171EO15R M171 Opt. Expansion 15 Ios

Schneider Electric TM171EO15R M171 Opt. Expansion 15 Ios

Schneider Electric
SKU:
TM171EO15R
|
UPC:
3606480752681
Availability:
Contact us to confirm availability and lead times.
$109.27
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
Modicon M171 Optimized expansion 15 I/Os
Additional Information
Power Consumption In W:
18 W 24...48 V AC/DC
Height:
110 mm
Width:
140 mm
Upgradeability:
Upgradeable through digital modules and upgraded components
Rohs Exemption Information:
Yes
Discrete Input Logic:
sink or source (positive/negative)
Number Of Port:
1 LAN expansion bus
Pollution Degree:
2
Product Certifications:
cURus || EAC || CSA || CE
[Us] Rated Supply Voltage:
12...24 V +/- 20 % AC/DC || 24 V +/- 20 % DC
Ambient Air Temperature For Storage:
-20-85 °C
Local Signalling:
for programmable 1 LED (red) || for programmable 1 LED (yellow) || for programmable 1 LED (green)
Ambient Air Temperature For Operation:
-10-55 °C UL 60730-1
Directives:
2006/95/EC - low voltage directive || 86/188/EEC - physical agents (noise) directive
Sensor Power Supply:
12-12 V DC 85 mA
Net Weight:
0.385 kg
Contacts Usage:
volt-free contacts
Environmental Disclosure:
ENVPEP1710004EN
Analogue Input Type:
voltage 0...5 V ratiometric) || voltage 0...10 V || NTC temperature probe - 50...100 °C 0.1 °C || current 0...20 mA/4...20 mA || voltage 0...1 V
Circularity Profile:
ENVEOLI1710004EN
Standards:
EN/IEC 60730
Discrete Output Number:
1 open collector || 3 relay outputs SPST with same common
Overvoltage Category:
II
China Rohs Regulation:
X
Product Or Component Type:
additional I/O module
Depth:
61.6 mm
Mercury Free:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Number Of Inputs/Outputs:
15
Relative Humidity:
10-90 % non-condensing
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Range Of Product:
Modicon M171/M172
Product Specific Application:
HVAC and pumping solution
Discrete Output Current:
2 A relay
Analogue Input Number:
3 analog input NTC
Realtime Clock:
built-in -10-55 °C
Discrete Input Number:
6
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Ip Degree Of Protection:
IP20
Input/Output Number:
3 analog input || 2 analog output || 6 digital input || 4 digital output
Display Type:
Without Display
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Analogue Output Number:
1 PWM/PPM 20 kHz, 12 V, 35 mA || 2
Sustainable Offer Status:
Green Premium product
