Schneider Electric TM171VEVM4 Eev Driver, Autonomous And Modbus
Schneider Electric
$140.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

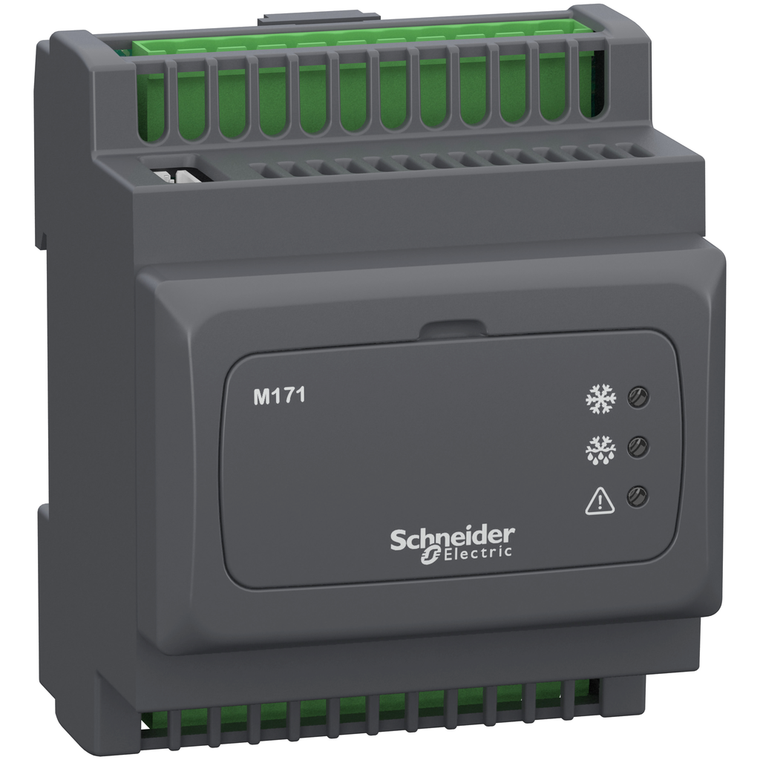

Schneider Electric TM171VEVM4 Eev Driver, Autonomous And Modbus
EEV Driver, Autonomous & Modbus
- Discrete Output Number:
- 1 open collector || 1 SPST
- Ambient Air Temperature For Operation:
- -5-50 °C
- Ip Degree Of Protection:
- IP20
- Mercury Free:
- Yes
- Width:
- 70.2 mm
- Display Type:
- Without Display
- Input/Output Number:
- 8 total) || 4 analog input || 2 digital input || 2 digital output
- Sensor Power Supply:
- 5-5 V DC || 12-12 V DC
- Product Or Component Type:
- controller
- Depth:
- 61.6 mm
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Analogue Input Number:
- 2 analog input NTC || 2 analog input Pt 1000 4...20 mA or 0...5 V or 0...10 V
- Upgradeability:
- Upgradeable through digital modules and upgraded components
- [Us] Rated Supply Voltage:
- 24 V +/- 10 % AC/DC
- Discrete Input Number:
- 2
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Rohs Exemption Information:
- Yes
- Mounting Support:
- DIN rail
- Contacts Usage:
- volt-free contacts
- Discrete Input Logic:
- sink or source (positive/negative)
- Circularity Profile:
- ENVEOLI1710004EN
- Environmental Disclosure:
- ENVPEP1710004EN
- Height:
- 87 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Marking:
- CE
- Sustainable Offer Status:
- Green Premium product
- Number Of Port:
- 1 Modbus serial link - RS485
- China Rohs Regulation:
- X
- Range Of Product:
- Modicon M171
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
