Schneider Electric

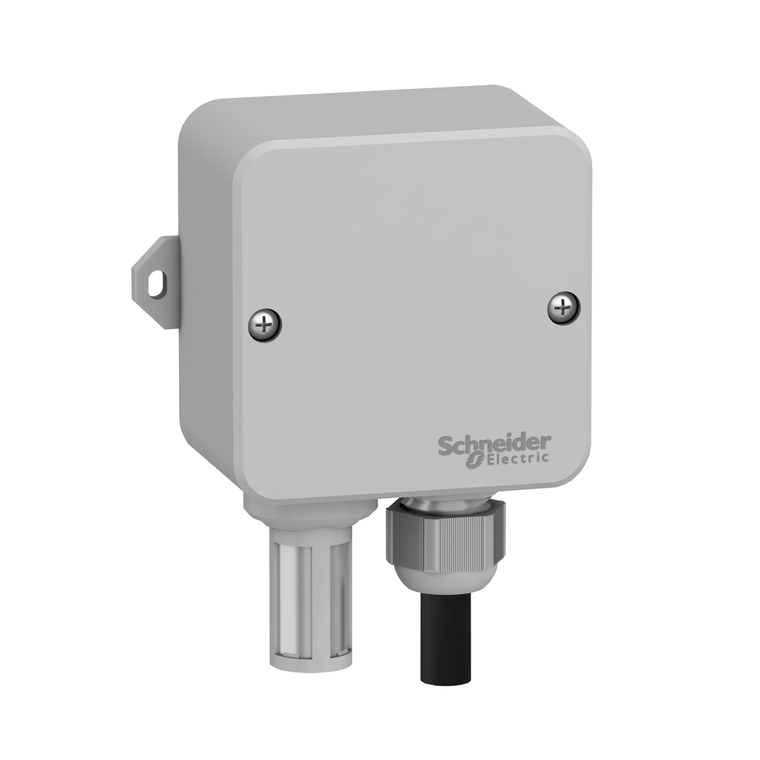

Schneider Electric TM1SHC4 Humidity Sensor, 4-20 Ma

SKU:

TM1SHC4

UPC:

3606481390141

MPN:

Condition:

New

Relative Humidity:

0-100 %

Net Weight:

0.14 kg

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Ip Degree Of Protection:

IP65

Pollution Degree:

2

Depth:

50.5 mm

Circularity Profile:

ENVEOLI1709014EN

Overvoltage Category:

I

Product Specific Application:

humidity control

Ambient Air Temperature For Operation:

-40-60 °C

Device Mounting:

wall mounted

Electrical Connection:

screw-clamp terminals

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic Heavy Metal Free:

Yes

Width:

100 mm

Sustainable Offer Status:

Green Premium product

China Rohs Regulation:

X

Height:

122 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Certifications:

CE || cULus || EAC || UKCA

Accessory / Separate Part Category:

measurement accessory

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Rohs Exemption Information:

Yes

[Us] Rated Supply Voltage:

9...28 V DC

Range Of Product:

Modicon M171/M172

Fixing Mode:

2 fixing points

Environmental Disclosure:

ENVPEP1709014EN

Mounting Support:

mounting box

Accessory / Separate Part Type:

probe

Ambient Air Temperature For Storage:

-40-70 °C

Output Type:

current 4...20 mA +/- 3 % RH

Mercury Free:

Yes

Average Consumption In Ma:

20 mA

Brochure:

View

Catalog:

View

Datasheet:

View
