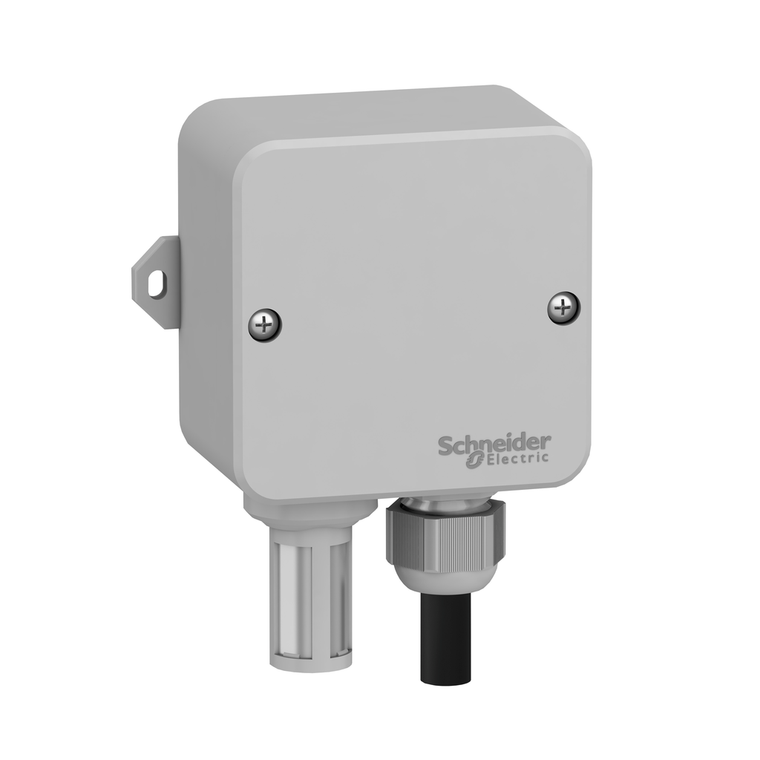

Schneider Electric TM1SHTCC4 Humidity And Temperature Sensor, 4-20 Ma
SKU:
TM1SHTCC4
UPC:
3606481390165
MPN:
Condition:
New
Environmental Disclosure:
ENVPEP1709014EN
Output Type:
current 4...20 mA +/- 3 % RH || current 4...20 mA -40-60 °C +/- 1 °C
Height:
122 mm
Rohs Exemption Information:
Yes
[Us] Rated Supply Voltage:
9...28 V AC || 9...40 V DC
Average Consumption In Ma:
50 mA
Overvoltage Category:
I
Ambient Air Temperature For Operation:
-40-60 °C
Toxic Heavy Metal Free:
Yes
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Circularity Profile:
ENVEOLI1709014EN
Accessory / Separate Part Type:
probe
Product Certifications:
CE || cULus || EAC || UKCA
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Device Mounting:
wall mounted
Relative Humidity:
0-100 %
Range Of Product:
Modicon M171/M172
Pollution Degree:
2
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mounting Support:
mounting box
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
