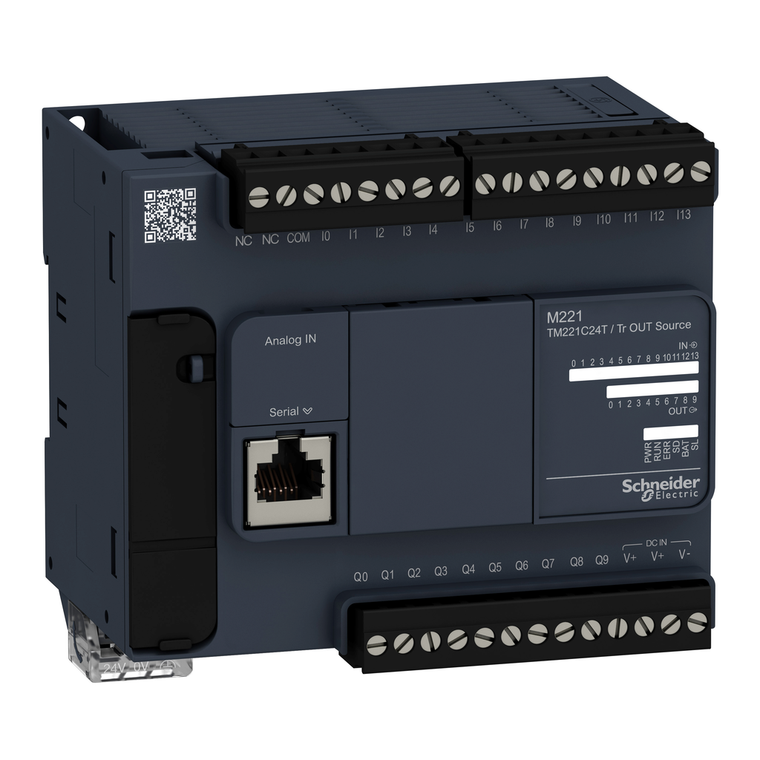

Schneider Electric TM221C24T Controller M221-24Io Tr.Pnp Compact

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric TM221C24T Controller M221-24Io Tr.Pnp Compact

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

TM221C24T

UPC:

3606480648724

MPN:

Condition:

New

Conversion Time:

1 ms per channel + 1 controller cycle time analog input

Electromagnetic Emission:

conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55011 || conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz IEC 55011 || conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55

Exct Time For Event Task:

60 µs response time

Permitted Overload On Inputs:

+/- 30 V DC 5 min maximum)analog input || +/- 13 V DC permanent)analog input

Marking:

CE

Clock Drift:

<= 30 s/month 25-25 °C

[Us] Rated Supply Voltage:

24 V DC

Counting Input Number:

4 fast input (HSC mode) 100 kHz 32 bits

Configurable Filtering Time:

0 ms input || 3 ms input || 12 ms input

Battery Type:

BR2032 or CR2032X lithium non-rechargeable

Depth:

70 mm

Discrete Input Current:

7 mA discrete input || 5 mA fast input

Pvc Free:

Yes

Data Storage Equipment:

2 GB SD card optional)

Product Or Component Type:

logic controller

Relative Humidity:

10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)

Circularity Profile:

ENVEOLI1403012EN

Electrical Connection:

removable screw terminal block for inputs || removable screw terminal block for outputs || terminal block, 3 for connecting the 24 V DC power supply || connector, 4 for analogue inputs || mini B USB 2.0 connector for a programming terminal

Vibration Resistance:

3.5 mm 5-8.4 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 1 gn 8.4-150 Hz symmetrical rail || 1 gn 8.4-150 Hz panel mounting

China Rohs Regulation:

X

Absolute Accuracy Error:

+/- 1 % of full scale analog input

Ip Degree Of Protection:

IP20 with protective cover in place

Response Time:

35 µs turn-off, I2...I5 input || 5 µs turn-on, I0, I1, I6, I7 fast input || 35 µs turn-on, other terminals input || 5 µs turn-off, I0, I1, I6, I7 fast input || 100 µs turn-off, other terminals input || 5 µs turn-on, turn-off, Q0...Q1 output ||

Voltage State 1 Guaranteed:

>= 15 V input

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Maximum Leakage Current:

0.1 mA transistor output

Realtime Clock:

with

Surge Withstand:

2 kV power lines (AC) common mode IEC 61000-4-5 || 2 kV relay output common mode IEC 61000-4-5 || 1 kV I/O common mode IEC 61000-4-5 || 1 kV shielded cable common mode IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode IEC 61000-4-5 || 1 kV p

Pollution Degree:

<= 2

Output Frequency:

100 kHz fast output (PWM/PLS mode) Q0...Q1 || 5 kHz output Q2...Q3 || 0.1 kHz output Q4...Q9

Resistance To Conducted Disturbances:

10 V 0.15...80 MHz IEC 61000-4-6 || 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)

Discrete Output Logic:

positive logic (source)

Shock Resistance:

147 m/s² 11 ms

Execution Time Per Instruction:

0.2 µs Boolean

Sustainable Offer Status:

Green Premium product

Maximum Tungsten Load:

<12 W output and fast output

Supply:

serial)serial link supply 5 V, <200 mA

Maximum Size Of Object Areas:

512 %KW constant words || 255 %C counters || 8000 %MW memory words || 255 %TM timers || 512 %M memory bits

Discrete Output Current:

0.5 A

Data Backed Up:

256 kB built-in flash memory backup of application and data

Resistance To Electrostatic Discharge:

8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2

Discrete Input Voltage Type:

DC

Function Available:

PWM || PLS || frequency generator

Memory Capacity:

256 kB user application and data RAM 10000 instructions || 256 kB internal variables RAM

Power Supply Output Current:

0.52-0.52 A 5 V expansion bus || 0.2-0.2 A 24 V expansion bus

Resistance To Fast Transients:

2 kV IEC 61000-4-4 power lines) || 2 kV IEC 61000-4-4 relay output) || 1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 Ethernet line) || 1 kV IEC 61000-4-4 serial link)

Storage Altitude:

0-3000 m

Positioning Functions:

PTO 2 pulse/direction 100 kHz) || PTO 1 CW/CCW 100 kHz)

Mechanical Durability:

20000000 cycles transistor output

Maximum Cable Distance Between Devices:

shielded cable <10 m fast input || unshielded cable <30 m output || unshielded cable <30 m digital input || unshielded cable <1 m analog input || shielded cable <3 m fast output

Range Of Product:

Modicon M221

Discrete Output Type:

transistor

Mercury Free:

Yes

Mounting Support:

top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit

Execution Time For 1 Kinstruction:

0.3 ms event and periodic task

Reset Time:

1 s automatic reset

Discrete Input Logic:

sink or source (positive/negative)

Resistance To Electromagnetic Fields:

10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2...2.7 GHz IEC 61000-4-3

Discrete Input Number:

14 , discrete input 4 fast input IEC 61131-2 Type 1

Control Signal Type:

A/B || single phase || pulse/direction

Backup Time:

1 year 25 °C by interruption of power supply)

Communication Port Protocol:

USB port USB - SoMachine-Network || non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network

Discrete Output Voltage:

24 V DC

Discrete Input Voltage:

24 V

Analogue Input Number:

2 0...10 V

Lsb Value:

10 mV

Immunity To Microbreaks:

10 ms

Ambient Air Temperature For Operation:

-10-55 °C horizontal installation) || -10-35 °C vertical installation)

Protection Type:

overload and short-circuit protection 1 A

Maximum Current Per Output Common:

0.208333333333333

Resistance To Magnetic Fields:

30 A/m 50/60 Hz IEC 61000-4-8

Height:

90 mm

Environmental Characteristic:

ordinary and hazardous location

Integrated Connection Type:

USB port mini B USB 2.0 || non isolated serial link serial 1 RJ45 RS485 || non isolated serial link serial 2 RJ45 RS232/RS485

Width:

110 mm

Standards:

IEC 61131-2 || UL 508 || CAN/CSA C22.2 No. 213 || IACS E10 || ANSI/ISA 12-12-01

Product Certifications:

DNV-GL || LR || cULus || RCM || EAC || ABS || CE || UKCA || cULus HazLoc

Discrete I/O Number:

24

Input Impedance:

3.4 kOhm discrete input || 100 kOhm analog input || 4.9 kOhm fast input

Local Signalling:

for PWR 1 LED (green) || for RUN 1 LED (green) || for module error (ERR) 1 LED (red) || for SD card access (SD) 1 LED (green) || for BAT 1 LED (red) || for SL1 1 LED (green) || for SL2 1 LED (green) || for I/O state 1 LED per channel (green)

Operating Altitude:

0...6561.68 ft (0...2000 m)

Supply Voltage Limits:

20.4-28.8 V

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Maximum Voltage Drop:

<1 V

Rohs Exemption Information:

Yes

Maximum Number Of I/O Expansion Module:

7 (local I/O-Architecture) || 14 (remote I/O-Architecture)

Regulation Loop:

adjustable PID regulator up to 14 simultaneous loops

Maximum Power Consumption In W:

13 W 24 V with max number of I/O expansion module) || 4.1 W 24 V without I/O expansion module)

Voltage State 0 Guaranteed:

<= 5 V input

Discrete Output Number:

10 transistor 2 fast output

Analogue Input Resolution:

10 bits

Transmission Rate:

1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s USB

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Inrush Current:

35 A

Insulation:

between input and internal logic 500 V AC || between fast input and internal logic 500 V AC || non-insulated between inputs || between output and internal logic 500 V AC || non-insulated between analogue input and internal logic || non-insulated betw

Environmental Disclosure:

ENVPEP1403012EN

Ambient Air Temperature For Storage:

-25-70 °C

Net Weight:

0.395 kg
