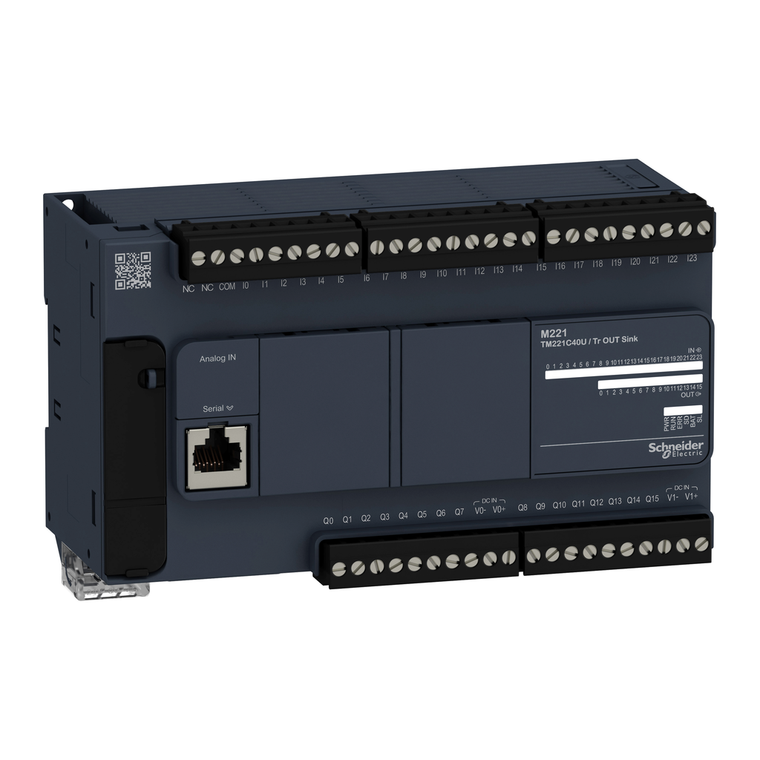

Schneider Electric TM221C40U Controller M221-40Io Tr.Npn

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric TM221C40U Controller M221-40Io Tr.Npn

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

TM221C40U

UPC:

3606485408637

MPN:

Condition:

New

Discrete Output Logic:

negative logic (sink)

Clock Drift:

<= 30 s/month 25-25 °C

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Permitted Overload On Inputs:

+/- 30 V DC 5 min maximum)analog input || +/- 13 V DC permanent)analog input

Marking:

CE

Height:

90 mm

Maximum Leakage Current:

0.1 mA transistor output

China Rohs Regulation:

X

Environmental Disclosure:

ENVPEP1403012EN

Realtime Clock:

with

Discrete Input Current:

7 mA discrete input || 5 mA fast input

Relative Humidity:

10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)

Backup Time:

1 year 25 °C by interruption of power supply)

Positioning Functions:

PTO 4 pulse/direction 100 kHz) || PTO 2 CW/CCW 100 kHz)

Supply:

serial)serial link supply 5 V, <200 mA

Conversion Time:

1 ms per channel + 1 controller cycle time analog input

Resistance To Conducted Disturbances:

10 V 0.15...80 MHz IEC 61000-4-6 || 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)

Discrete Input Logic:

sink or source (positive/negative)

Data Storage Equipment:

2 GB SD card optional)

Width:

160 mm

Data Backed Up:

256 kB built-in flash memory backup of application and data

Integrated Connection Type:

USB port mini B USB 2.0 || non isolated serial link serial 1 RJ45 RS485 || non isolated serial link serial 2 RJ45 RS232/RS485

Electrical Connection:

removable screw terminal block for inputs || removable screw terminal block for outputs || terminal block, 3 for connecting the 24 V DC power supply || connector, 4 for analogue inputs || mini B USB 2.0 connector for a programming terminal

Memory Capacity:

256 kB user application and data RAM 10000 instructions || 256 kB internal variables RAM

Communication Port Protocol:

USB port USB - SoMachine-Network || non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network

Maximum Number Of I/O Expansion Module:

7 (local I/O-Architecture) || 14 (remote I/O-Architecture)

Immunity To Microbreaks:

10 ms

Local Signalling:

for PWR 1 LED (green) || for RUN 1 LED (green) || for module error (ERR) 1 LED (red) || for SD card access (SD) 1 LED (green) || for BAT 1 LED (red) || for SL1 1 LED (green) || for SL2 1 LED (green) || for I/O state 1 LED per channel (green)

Execution Time For 1 Kinstruction:

0.3 ms event and periodic task

Maximum Cable Distance Between Devices:

shielded cable <10 m fast input || unshielded cable <30 m output || unshielded cable <30 m digital input || unshielded cable <1 m analog input || shielded cable <3 m fast output

Maximum Voltage Drop:

<1 V

Voltage State 1 Guaranteed:

>= 15 V input

Mercury Free:

Yes

Standards:

IEC 61131-2 || UL 508 || CAN/CSA C22.2 No. 213 || IACS E10 || ANSI/ISA 12-12-01

Maximum Current Per Output Common:

0.166666666666667

Environmental Characteristic:

ordinary and hazardous location

Transmission Rate:

1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s USB

Discrete Output Voltage:

24 V DC

Ambient Air Temperature For Operation:

-10-55 °C horizontal installation) || -10-35 °C vertical installation)

Power Supply Output Current:

0.52-0.52 A 5 V expansion bus || 0.3-0.3 A 24 V expansion bus

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Configurable Filtering Time:

0 ms input || 3 ms input || 12 ms input

Analogue Input Number:

2 0...10 V

Voltage State 0 Guaranteed:

<= 5 V input

Discrete I/O Number:

40

Discrete Output Type:

transistor

Depth:

70 mm

Discrete Input Voltage Type:

DC

Discrete Input Number:

24 , discrete input 4 fast input IEC 61131-2 Type 1

Vibration Resistance:

3.5 mm 5-8.4 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 1 gn 8.4-150 Hz symmetrical rail || 1 gn 8.4-150 Hz panel mounting

Regulation Loop:

adjustable PID regulator up to 14 simultaneous loops

Shock Resistance:

147 m/s² 11 ms

Resistance To Electromagnetic Fields:

10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2...2.7 GHz IEC 61000-4-3

Counting Input Number:

4 fast input (HSC mode) 100 kHz 32 bits

Net Weight:

0.63 kg

Resistance To Magnetic Fields:

30 A/m 50/60 Hz IEC 61000-4-8

Supply Voltage Limits:

20.4-28.8 V

Execution Time Per Instruction:

0.2 µs Boolean

Discrete Input Voltage:

24 V

Control Signal Type:

pulse/direction || single phase || A/B

Circularity Profile:

ENVEOLI1403012EN

Ambient Air Temperature For Storage:

-25-70 °C

Pvc Free:

Yes

Electromagnetic Emission:

conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55011 || conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz IEC 55011 || conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55

Pollution Degree:

<= 2

Absolute Accuracy Error:

+/- 1 % of full scale analog input

Protection Type:

without protection

Battery Type:

BR2032 or CR2032X lithium non-rechargeable

Product Certifications:

RCM || cULus || LR || ABS || EAC || DNV-GL || CE || UKCA || cULus HazLoc

Operating Altitude:

0...6561.68 ft (0...2000 m)

Maximum Size Of Object Areas:

8000 %MW memory words || 512 %KW constant words || 512 %M memory bits || 255 %C counters || 255 %TM timers

Resistance To Electrostatic Discharge:

8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Discrete Output Number:

16 transistor 4 fast output

Mechanical Durability:

20000000 cycles transistor output

Surge Withstand:

2 kV power lines (AC) common mode IEC 61000-4-5 || 2 kV relay output common mode IEC 61000-4-5 || 1 kV I/O common mode IEC 61000-4-5 || 1 kV shielded cable common mode IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode IEC 61000-4-5 || 1 kV p

Maximum Power Consumption In W:

4.1 W 24 V without I/O expansion module) || 16 W 24 V with max number of I/O expansion module)

Exct Time For Event Task:

60 µs response time

Discrete Output Current:

0.5 A

Sustainable Offer Status:

Green Premium product

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Or Component Type:

logic controller

Analogue Input Resolution:

10 bits

Function Available:

PLS || PWM || frequency generator

Response Time:

35 µs turn-off, I2...I5 input || 5 µs turn-on, I0, I1, I6, I7 fast input || 35 µs turn-on, other terminals input || 5 µs turn-off, I0, I1, I6, I7 fast input || 100 µs turn-off, other terminals input || 300 µs turn-on, turn-off, other terminals

Inrush Current:

35 A

Insulation:

between input and internal logic 500 V AC || between fast input and internal logic 500 V AC || non-insulated between inputs || between output and internal logic 500 V AC || non-insulated between analogue input and internal logic || non-insulated betw

Storage Altitude:

0-3000 m

Maximum Tungsten Load:

<12 W output and fast output

Lsb Value:

10 mV

Rohs Exemption Information:

Yes

[Us] Rated Supply Voltage:

24 V DC

Resistance To Fast Transients:

2 kV IEC 61000-4-4 power lines) || 2 kV IEC 61000-4-4 relay output) || 1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 Ethernet line) || 1 kV IEC 61000-4-4 serial link)

Output Frequency:

0.1 kHz output Q4...Q15 || 100 kHz fast output (PWM/PLS mode) Q0...Q3

Ip Degree Of Protection:

IP20 with protective cover in place

Input Impedance:

3.4 kOhm discrete input || 100 kOhm analog input || 4.9 kOhm fast input

Range Of Product:

Modicon M221

Mounting Support:

top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
