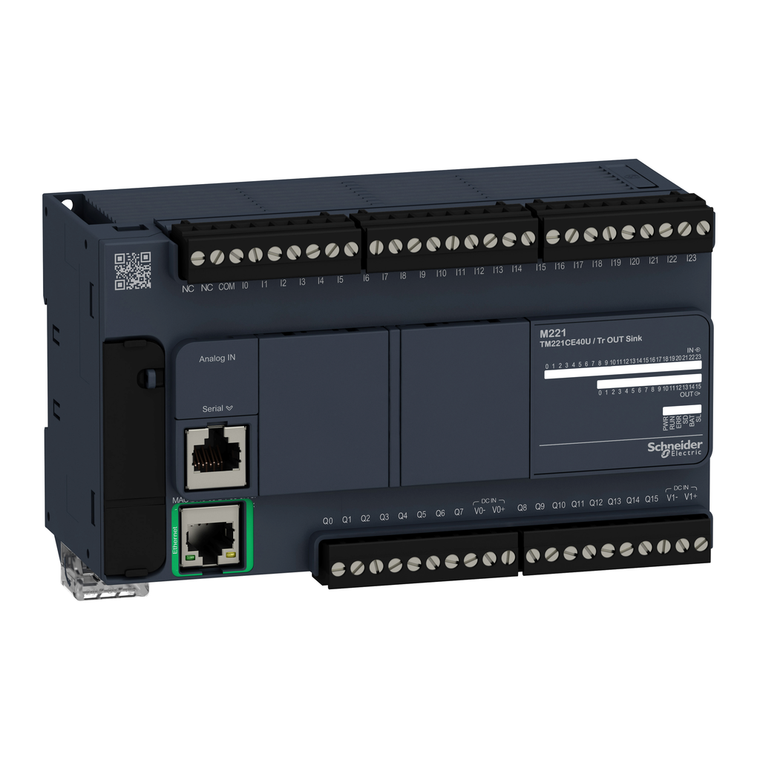

Schneider Electric TM221CE40U Controller M221-40Io Tr.Npn Ethernet

(No reviews yet) Write a Review

Write a Review

Schneider Electric TM221CE40U Controller M221-40Io Tr.Npn Ethernet

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

TM221CE40U

UPC:

3.60649E+12

MPN:

Condition:

New

Resistance To Magnetic Fields:

30 A/m 50/60 Hz IEC 61000-4-8

Relative Humidity:

10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)

Resistance To Electrostatic Discharge:

8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2

Maximum Number Of I/O Expansion Module:

7 (local I/O-Architecture) || 14 (remote I/O-Architecture)

Power Supply Output Current:

0.52-0.52 A 5 V expansion bus || 0.3-0.3 A 24 V expansion bus

Positioning Functions:

PTO 4 pulse/direction 100 kHz) || PTO 2 CW/CCW 100 kHz)

Configurable Filtering Time:

0 ms input || 3 ms input || 12 ms input

Communication Port Protocol:

USB port USB - SoMachine-Network || non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network || Ethernet

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Maximum Current Per Output Common:

0.166666666666667

Storage Altitude:

0-3000 m

Resistance To Conducted Disturbances:

10 V 0.15...80 MHz IEC 61000-4-6 || 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)

Supply Voltage Limits:

20.4-28.8 V

Product Or Component Type:

logic controller

Supply:

serial)serial link supply 5 V, <200 mA

Mechanical Durability:

20000000 cycles transistor output

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Data Storage Equipment:

2 GB SD card optional)

Mercury Free:

Yes

Width:

160 mm

Realtime Clock:

with

Standards:

IEC 61131-2 || UL 508 || CAN/CSA C22.2 No. 213 || IACS E10 || ANSI/ISA 12-12-01

Voltage State 0 Guaranteed:

<= 5 V input

Rohs Exemption Information:

Yes

Discrete Input Current:

7 mA discrete input || 5 mA fast input

Lsb Value:

10 mV

Execution Time Per Instruction:

0.2 µs Boolean

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Clock Drift:

<= 30 s/month 25-25 °C

Port Ethernet:

10BASE-T/100BASE-TX 1 100 m copper cable

Discrete Output Voltage:

24 V DC

Protection Type:

without protection

Environmental Disclosure:

ENVPEP1403012EN

Local Signalling:

for PWR 1 LED (green) || for RUN 1 LED (green) || for module error (ERR) 1 LED (red) || for SD card access (SD) 1 LED (green) || for BAT 1 LED (red) || for I/O state 1 LED per channel (green) || for SL 1 LED (green) || for ACT Ethernet network activi

Control Signal Type:

A/B || single phase || pulse/direction

Backup Time:

1 year 25 °C by interruption of power supply)

Battery Type:

BR2032 or CR2032X lithium non-rechargeable

China Rohs Regulation:

X

Discrete Output Current:

0.5 A

Ambient Air Temperature For Operation:

-10-55 °C horizontal installation) || -10-35 °C vertical installation)

Shock Resistance:

147 m/s² 11 ms

Memory Capacity:

256 kB user application and data RAM 10000 instructions || 256 kB internal variables RAM

[Us] Rated Supply Voltage:

24 V DC

Discrete Input Voltage Type:

DC

Absolute Accuracy Error:

+/- 1 % of full scale analog input

Input Impedance:

3.4 kOhm discrete input || 100 kOhm analog input || 4.9 kOhm fast input

Pollution Degree:

<= 2

Discrete Output Number:

16 transistor 4 fast output

Depth:

70 mm

Discrete Output Logic:

negative logic (sink)

Range Of Product:

Modicon M221

Insulation:

between input and internal logic 500 V AC || between fast input and internal logic 500 V AC || non-insulated between inputs || between output and internal logic 500 V AC || non-insulated between analogue input and internal logic || non-insulated betw

Exct Time For Event Task:

60 µs response time

Permitted Overload On Inputs:

+/- 30 V DC 5 min maximum)analog input || +/- 13 V DC permanent)analog input

Maximum Leakage Current:

0.1 mA transistor output

Ip Degree Of Protection:

IP20 with protective cover in place

Discrete Input Logic:

sink or source (positive/negative)

Transmission Rate:

1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s USB

Ambient Air Temperature For Storage:

-25-70 °C

Analogue Input Number:

2 0...10 V

Discrete I/O Number:

40

Maximum Cable Distance Between Devices:

shielded cable <10 m fast input || unshielded cable <30 m output || unshielded cable <30 m digital input || unshielded cable <1 m analog input || shielded cable <3 m fast output

Discrete Input Number:

24 , discrete input 4 fast input IEC 61131-2 Type 1

Execution Time For 1 Kinstruction:

0.3 ms event and periodic task

Maximum Voltage Drop:

<1 V

Electrical Connection:

removable screw terminal block for inputs || removable screw terminal block for outputs || terminal block, 3 for connecting the 24 V DC power supply || connector, 4 for analogue inputs || mini B USB 2.0 connector for a programming terminal

Marking:

CE

Inrush Current:

35 A

Vibration Resistance:

3.5 mm 5-8.4 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 1 gn 8.4-150 Hz symmetrical rail || 1 gn 8.4-150 Hz panel mounting

Product Certifications:

LR || cULus || EAC || DNV-GL || ABS || RCM || CE || UKCA || cULus HazLoc

Data Backed Up:

256 kB built-in flash memory backup of application and data

Resistance To Electromagnetic Fields:

10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3

Conversion Time:

1 ms per channel + 1 controller cycle time analog input

Surge Withstand:

2 kV power lines (AC) common mode IEC 61000-4-5 || 2 kV relay output common mode IEC 61000-4-5 || 1 kV I/O common mode IEC 61000-4-5 || 1 kV shielded cable common mode IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode IEC 61000-4-5 || 1 kV p

Maximum Tungsten Load:

<12 W output and fast output

Discrete Input Voltage:

24 V

Sustainable Offer Status:

Green Premium product

Operating Altitude:

0...6561.68 ft (0...2000 m)

Pvc Free:

Yes

Environmental Characteristic:

ordinary and hazardous location

Height:

90 mm

Analogue Input Resolution:

10 bits

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Resistance To Fast Transients:

2 kV IEC 61000-4-4 power lines) || 2 kV IEC 61000-4-4 relay output) || 1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 Ethernet line) || 1 kV IEC 61000-4-4 serial link)

Net Weight:

0.78 kg

Output Frequency:

0.1 kHz output Q4...Q15 || 100 kHz fast output (PWM/PLS mode) Q0...Q3

Integrated Connection Type:

USB port mini B USB 2.0 || non isolated serial link serial 1 RJ45 RS232/RS485 || Ethernet RJ45

Electromagnetic Emission:

conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55011 || conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz IEC 55011 || conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55

Communication Service:

DHCP client || Modbus TCP slave device || Ethernet/IP adapter || Modbus TCP server || Modbus TCP client

Maximum Power Consumption In W:

17 W 24 V with max number of I/O expansion module) || 4.9 W 24 V without I/O expansion module)

Function Available:

PLS || PWM || frequency generator

Voltage State 1 Guaranteed:

>= 15 V input

Immunity To Microbreaks:

10 ms

Response Time:

35 µs turn-off, I2...I5 input || 5 µs turn-on, I0, I1, I6, I7 fast input || 35 µs turn-on, other terminals input || 5 µs turn-off, I0, I1, I6, I7 fast input || 100 µs turn-off, other terminals input || 300 µs turn-on, turn-off, other terminals

Counting Input Number:

4 fast input (HSC mode) 100 kHz 32 bits

Mounting Support:

top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit

Maximum Size Of Object Areas:

8000 %MW memory words || 255 %TM timers || 512 %KW constant words || 255 %C counters || 512 %M memory bits

Discrete Output Type:

transistor

Regulation Loop:

adjustable PID regulator up to 14 simultaneous loops

Circularity Profile:

ENVEOLI1403012EN
