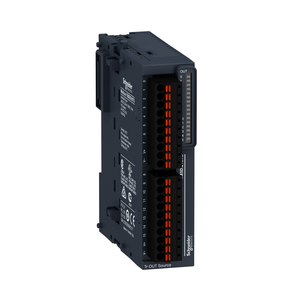

Schneider Electric TM3DQ16T Module Tm3-16 Out Tr.Pnp
Schneider Electric
$205.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete output module provides 16 transistor outputs with source (positive) logic. It is an output module with an output voltage of 24V DC and a current consumption of 20mA at 24V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and internal logic AC, non-insulated between outputs. It is furnished with removable screw terminal for electrical connection with pitch 3.81mm adjustment for outputs. It is an IP20 rated product. Its dimensions are 27.4mm (Width) x 84.6mm (Depth) x 90mm (Height). It weighs 0.105kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
- Insulation:
- non-insulated between outputs || between output and internal logic AC
- Discrete Output Voltage:
- 24 V DC transistor output
- Vibration Resistance:
- 3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz panel || 3 gn 8.4-150 Hz panel
- Resistance To Fast Transients:
- 1 kV I/OIEC 61000-4-4
- Discrete I/O Number:
- 16
- Discrete Output Current:
- 500 mA transistor output
- Maximum Tungsten Load:
- <3 W transistor output
- Maximum Voltage Drop:
- <0.4 V
- Width:
- 27.4 mm
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Resistance To Conducted Disturbances:
- 10 V 0.15...80 MHz IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
- Pvc Free:
- Yes
- Relative Humidity:
- 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
- Discrete Output Type:
- transistor
- Electromagnetic Emission:
- radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
- Height:
- 90 mm
- Discrete Output Number:
- 16
- Toxic Heavy Metal Free:
- Yes
- Shock Resistance:
- 15 gn 11 ms
- Standards:
- IEC 61131-2
- Local Signalling:
- for output status 1 LED per channel (green)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
- Mercury Free:
- Yes
- Resistance To Electromagnetic Fields:
- 10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3
- Product Or Component Type:
- discrete output module
- Product Certifications:
- cULus || CE || UKCA || RCM || EAC || cULus HazLoc
- Range Of Product:
- Modicon TM3
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Net Weight:
- 0.11 kg
- Storage Altitude:
- 0-3000 m
- China Rohs Regulation:
- X
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Pollution Degree:
- 2
- Circularity Profile:
- ENVEOLI1402009EN
- Surge Withstand:
- 1 kV I/O common mode IEC 61000-4-5 DC
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Resistance To Electrostatic Discharge:
- 8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
- Maximum Leakage Current:
- 0.1 mA transistor output
- Current Consumption:
- 5 mA 5 V DC via bus connector at state off) || 0 mA 24 V DC via bus connector at state off) || 15 mA 5 V DC via bus connector at state on) || 20 mA 24 V DC via bus connector at state on)
- Range Compatibility:
- Modicon M241 || Modicon M251 || Modicon M221 || Modicon M262
- Depth:
- 84.6 mm
- Environmental Disclosure:
- ENVPEP1402009EN
- Resistance To Magnetic Fields:
- 30 A/m 50/60 Hz IEC 61000-4-8
- Mounting Support:
- top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
- Electrical Connection:
- 10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for outputs
- Response Time:
- 450 µs (turn-on) || 450 µs (turn-off)
- Maximum Cable Distance Between Devices:
- unshielded cable <30 m transistor output
- Marking:
- CE
- Ip Degree Of Protection:
- IP20 with protective cover in place
- Ambient Air Temperature For Storage:
- -25-70 °C
- Ambient Air Temperature For Operation:
- -10-35 °C vertical installation || -10-55 °C horizontal installation
- Sustainable Offer Status:
- Green Premium product
- Discrete Output Logic:
- positive logic (source)
