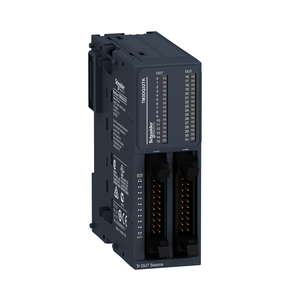

Schneider Electric TM3DQ16TK Module Tm3-16 Out Tr.Pnp He10
Schneider Electric
$163.75
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric TM3DQ16TK Module Tm3-16 Out Tr.Pnp He10
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete output module provides 16 transistor outputs with source (positive) logic. It is an output module with an output voltage of 24V DC and a current consumption of 20mA at 24V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and supply at 1500V AC, output and internal logic at 500V AC. It is furnished with HE-10 connector outputs for electrical connection with pitch 3.81mm adjustment for outputs. It is an IP20 rated product. Its dimensions are 21.4mm (Width) x 81.3mm (Depth) x 90mm (Height). It weighs 0.72kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
- Mercury Free:
- Yes
- Pvc Free:
- Yes
- Vibration Resistance:
- 3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz panel || 3 gn 8.4-150 Hz panel
- Relative Humidity:
- 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
- Depth:
- 81.3 mm
- Electromagnetic Emission:
- radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
- Local Signalling:
- for output status 1 LED per channel (green)
- Range Of Product:
- Modicon TM3
- Electrical Connection:
- HE-10 connector for outputs
- Ambient Air Temperature For Storage:
- -25-70 °C
- Environmental Disclosure:
- ENVPEP1402009EN
- Circularity Profile:
- ENVEOLI1402009EN
- Insulation:
- between output and internal logic 500 V AC || non-insulated between outputs
- Storage Altitude:
- 0-3000 m
- Maximum Leakage Current:
- 0.1 mA transistor output
- Maximum Tungsten Load:
- <9.6 W transistor output
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Resistance To Magnetic Fields:
- 30 A/m 50/60 Hz IEC 61000-4-8
- Current Consumption:
- 5 mA 5 V DC via bus connector at state off) || 0 mA 24 V DC via bus connector at state off) || 15 mA 5 V DC via bus connector at state on) || 20 mA 24 V DC via bus connector at state on)
- Resistance To Conducted Disturbances:
- 10 V 0.15...80 MHz IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
- Toxic Heavy Metal Free:
- Yes
- Discrete Output Number:
- 16
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation:
- X
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Response Time:
- 450 µs (turn-on) || 450 µs (turn-off)
- Product Certifications:
- cULus || CE || UKCA || RCM || EAC || cULus HazLoc
- Ambient Air Temperature For Operation:
- -10-35 °C vertical installation || -10-55 °C horizontal installation
- Height:
- 90 mm
- Maximum Voltage Drop:
- <0.4 V
- Sustainable Offer Status:
- Green Premium product
- Discrete Output Voltage:
- 24 V DC transistor output
- Surge Withstand:
- 1 kV I/O common mode IEC 61000-4-5 DC
- Shock Resistance:
- 15 gn 11 ms
- Discrete I/O Number:
- 16
- Marking:
- CE
- Net Weight:
- 0.72 kg
- Ip Degree Of Protection:
- IP20 with protective cover in place
- Pollution Degree:
- 2
- Range Compatibility:
- Modicon M241 || Modicon M251 || Modicon M221 || Modicon M262
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Maximum Cable Distance Between Devices:
- unshielded cable <5 m transistor output
- Standards:
- IEC 61131-2
- Resistance To Electromagnetic Fields:
- 10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3
- Discrete Output Logic:
- positive logic (source)
- Discrete Output Current:
- 100 mA transistor output
- Width:
- 21.4 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Discrete Output Type:
- transistor
- Product Or Component Type:
- discrete output module
- Rohs Exemption Information:
- Yes
- Mounting Support:
- top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
- Resistance To Electrostatic Discharge:
- 8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
- Resistance To Fast Transients:
- 1 kV I/OIEC 61000-4-4
