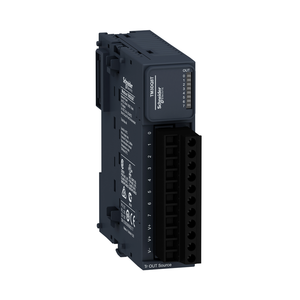

Schneider Electric TM3DQ8TG Module Tm3-8 Out Tr.Pnp Spring

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric TM3DQ8TG Module Tm3-8 Out Tr.Pnp Spring

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

TM3DQ8TG

UPC:

3606480611476

MPN:

Condition:

New

Range Compatibility:

Modicon M241 || Modicon M251 || Modicon M221 || Modicon M262

Local Signalling:

for output status 1 LED per channel (green)

Marking:

CE

Mounting Support:

top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit

Product Or Component Type:

discrete output module

Sustainable Offer Status:

Green Premium product

Maximum Leakage Current:

0.1 mA transistor output

Vibration Resistance:

3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz panel || 3 gn 8.4-150 Hz panel

Pollution Degree:

2

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Discrete Output Logic:

positive logic (source)

Storage Altitude:

0-3000 m

Relative Humidity:

10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)

Height:

90 mm

Maximum Tungsten Load:

<3 W transistor output

Resistance To Electrostatic Discharge:

8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2

Net Weight:

0.76 kg

Resistance To Electromagnetic Fields:

10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3

Depth:

84.6 mm

Pvc Free:

Yes

Response Time:

450 µs (turn-on) || 450 µs (turn-off)

Ambient Air Temperature For Operation:

-10-35 °C vertical installation || -10-55 °C horizontal installation

Discrete Output Voltage:

24 V DC transistor output

Discrete I/O Number:

8

Standards:

IEC 61131-2

Maximum Voltage Drop:

<0.4 V

Insulation:

between output and internal logic 500 V AC || non-insulated between outputs

Range Of Product:

Modicon TM3

Operating Altitude:

0...6561.68 ft (0...2000 m)

Product Certifications:

CE || cULus || UKCA || RCM || EAC || cULus HazLoc

Electromagnetic Emission:

radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011

China Rohs Regulation:

X

Current Consumption:

5 mA 5 V DC via bus connector at state off) || 0 mA 24 V DC via bus connector at state off) || 20 mA 24 V DC via bus connector at state on) || 10 mA 5 V DC via bus connector at state on)

Resistance To Conducted Disturbances:

10 V 0.15...80 MHz IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)

Discrete Output Number:

8

Discrete Output Current:

500 mA transistor output

Mercury Free:

Yes

Shock Resistance:

15 gn 11 ms

Electrical Connection:

11 x 2.5 mm² removable spring terminal block pitch 5.08 mm for outputs

Ambient Air Temperature For Storage:

-25-70 °C

Width:

27.4 mm

Circularity Profile:

ENVEOLI1402009EN

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Resistance To Fast Transients:

1 kV I/OIEC 61000-4-4

Environmental Disclosure:

ENVPEP1402009EN

Toxic Heavy Metal Free:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Surge Withstand:

1 kV I/O common mode IEC 61000-4-5 DC

Maximum Cable Distance Between Devices:

unshielded cable <30 m transistor output

Discrete Output Type:

transistor

Resistance To Magnetic Fields:

30 A/m 50/60 Hz IEC 61000-4-8

Ip Degree Of Protection:

IP20 with protective cover in place

Rohs Exemption Information:

Yes
