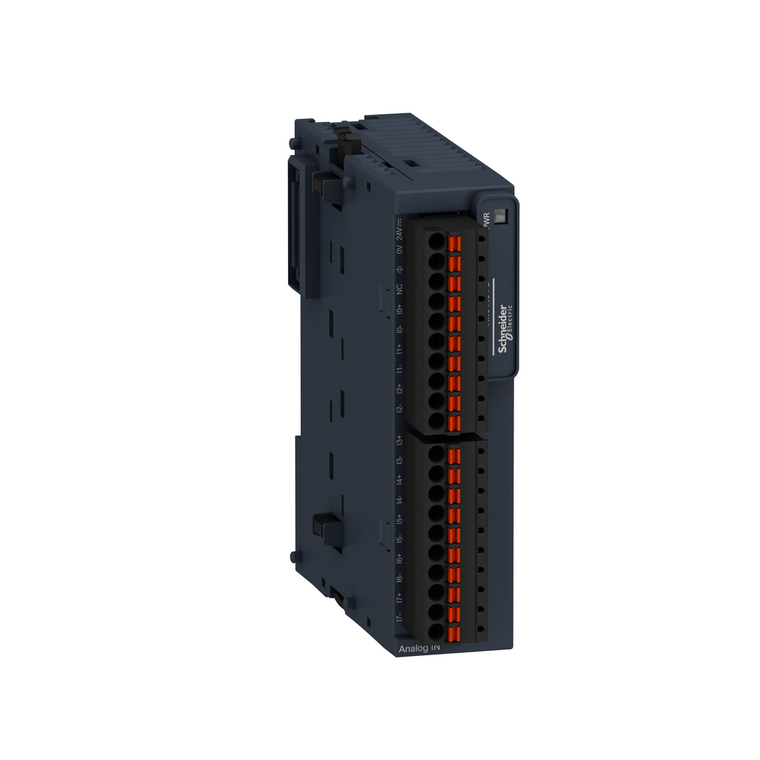

Schneider Electric TM3TI8TG Module Tm3-8 Inputs Temperature Spring

Schneider Electric TM3TI8TG Module Tm3-8 Inputs Temperature Spring

Schneider Electric
SKU:
TM3TI8TG
|
UPC:
3.60648E+12
Availability:
Contact us to confirm availability and lead times.
$342.50
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue input module provides 8 inputs with 16bit and 15bit + sign resolution. It is an input module with a rated supply voltage of 24V DC and a current consumption of 30mA at 24V DC via external supply, 45mA/40mA at 5V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC. It is furnished with removable spring terminal for electrical connection with pitch 3.81mm adjustment for inputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.1kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Additional Information
Immunity To Microbreaks:
10 ms
Surge Withstand:
1 kV power supply common mode IEC 61000-4-5 || 0.5 kV power supply differential mode IEC 61000-4-5 || 1 kV input common mode IEC 61000-4-5
Toxic Heavy Metal Free:
Yes
Analogue Input Type:
thermocouple - 200...1000 °C thermocouple J || thermocouple - 200...1300 °C thermocouple K || thermocouple 0...1760 °C thermocouple R || thermocouple 0...1760 °C thermocouple S || thermocouple 0...1820 °C thermocouple B || thermocouple - 200...4
Insulation:
between input and supply 1500 V AC || between input and internal logic 500 V AC
Non-Linearity:
+/- 0.2 %FS
Input Impedance:
>= 1 MOhm thermocouple || >= 1 MOhm temperature probe || >= 1 MOhm thermistor
Resistance To Electromagnetic Fields:
10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3
Storage Altitude:
0-3000 m
Vibration Resistance:
3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail
Analogue Input Number:
8
China Rohs Regulation:
X
Standards:
IEC 61131-2
Sustainable Offer Status:
Green Premium product
Ambient Air Temperature For Operation:
-10-55 °C horizontal installation || -10-35 °C vertical installation
Operating Altitude:
0...6561.68 ft (0...2000 m)
Type Of Cable:
twisted shielded pairs cable <30 m input
Supply Voltage Limits:
20.4-28.8 V
Marking:
CE
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Temperature Drift:
+/- 0.01 %FS/°C
Environmental Disclosure:
ENVPEP1402009EN
Conversion Time:
100 ms + 100 ms per channel + 1 controller cycle time
Range Compatibility:
Modicon M221 || Modicon M241 || Modicon M251 || Modicon M262
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mercury Free:
Yes
Relative Humidity:
10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
Ambient Air Temperature For Storage:
-25-70 °C
Local Signalling:
for PWR 1 LED (green)
Lsb Value:
0.1 °C thermocouple || 0.1 °C NTC || 1 Ohm PTC/NTC
Electromagnetic Emission:
radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
Pollution Degree:
2
[Us] Rated Supply Voltage:
24 V DC
Current Consumption:
30 mA 24 V DC via external supply || 45 mA 5 V DC via bus connector || 40 mA 5 V DC via bus connector
Mounting Support:
top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
Resistance To Fast Transients:
1 kV IEC 61000-4-4 I/O)
Ip Degree Of Protection:
IP20
Resistance To Magnetic Fields:
30 A/m IEC 61000-4-8
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Net Weight:
0.1 kg
Height:
90 mm
Resistance To Electrostatic Discharge:
8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
Product Certifications:
CE || UKCA || RCM || EAC || cULus || cULus HazLoc
Resistance To Conducted Disturbances:
10 V 0.15...80 MHz IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Range Of Product:
Modicon TM3
Sampling Duration:
100 ms
Width:
23.6 mm
Analogue Input Resolution:
16 bits || 15 bits + sign
Circularity Profile:
ENVEOLI1402009EN
Pvc Free:
Yes
Product Or Component Type:
analog input module
Rohs Exemption Information:
Yes
Electrical Connection:
10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for inputs and supply || 10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for inputs
Repeat Accuracy:
+/-0.5 %FS
Depth:
70 mm
Cross Talk:
<= 1 LSB
Absolute Accuracy Error:
+/- 0.2 % of full scale at 25 °C for thermocouple C 0...2315 °C || +/- 6 °C at 25 °C for thermocouple R, S 0...200 °C || +/- 0.2 % of full scale at 25 °C for thermocouple R, S 200...1760 °C || +/- 0.2 % of full scale at 25 °C for thermocouple
Shock Resistance:
15 gn 11 ms
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Catalog:
View
